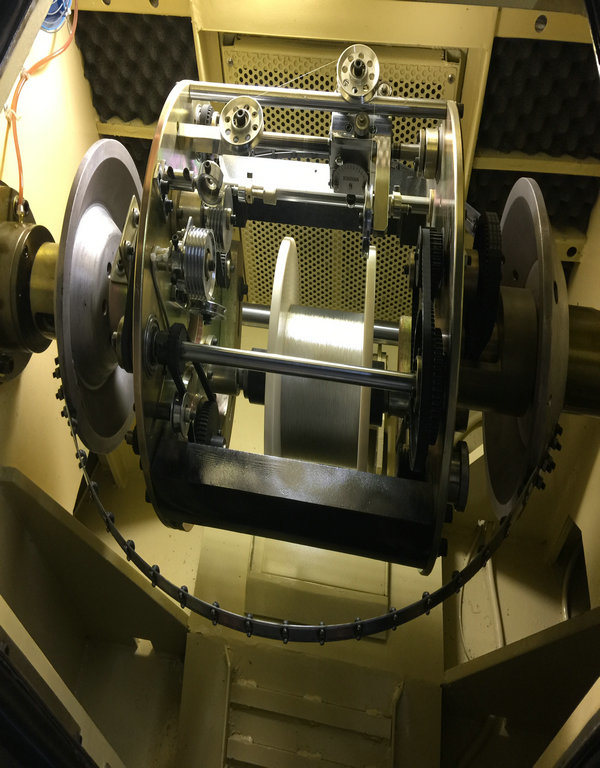

Ultra Fine Bare Copper Cable Wire Twisting Extrusion Winding Coiling Bunching Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
300,000-1,000,000 Shots
Copper Wire Bunching Machine With Touch Screen Operation
Quick detail:
Series for Model B ultra-fine high speed bunching machine
The technology of this machine is brought from Japan and put in production in JiangSu
Characteristics:
With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, it can realize bunching instead of twisting to match up to FC-100 active back-twist pay off machine. And meet requirements of customer to twist wire of small section area. The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.
Specification:
Equipment Models FC-200B FC-250B FC-300B FC-400B Twisting Usage Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires). Single Wire Dia(mm) 0.016~0.08 0.03~0.18 0.05~0.28 0.05~0.32 Stranding Section Area(mm²) 0.0014~0.035 0.0049~0.3 0.0137~0.45 0.0137~1.0 Pitch(mm) 0.8~4.0(14 classes) 0.8~10.8(24classes) 1.6~21.6(24classes) 3.1~33.3(24classes) Direction of Lay Free to right or left Take-up Bobbin(mm)
Outer dia*bore*outer width200*31*135 300*30*185 250*30*185
300*30*185300*30*185
400*56*300Max Rotating Speed(rpm) 5000rpm(10000tpm) 4000rpm(8000tpm) 3500rpm(7000tpm) 3500rpm(7000tpm) Main Motor Power 2.2KW 3.7KW 3.7KW 3.7KW Inverter Power 2.2KW 3.7KW 3.7KW 3.7KW Tension Control Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin Magnetic Powder Clutch 0.05kgf 0.3kgf 0.6kgf 0.6kgf Protection automatically brake/stop 1)wire inside and outside is broken
2)the preset length is arrivedBrake Mode Electromagnetic brake Traversing Method Rolling wire with ring drive units, winding pitch and breadth are adjustable Operation Mode Touch Screen Operation Dimension L*W*H 2000*960*1100 2300*1100*1330 2300*1100*1330 2850*1150*1350
