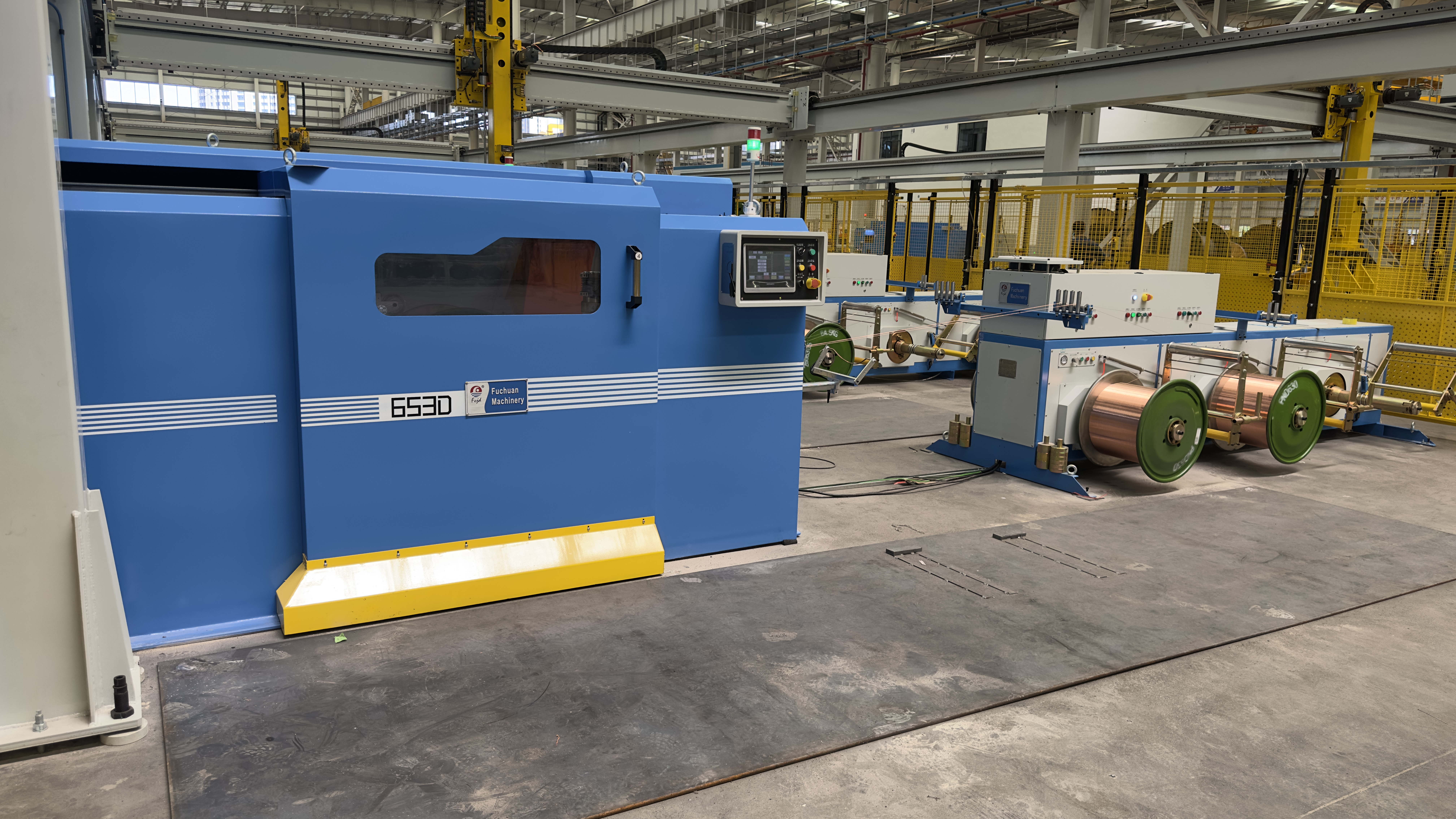

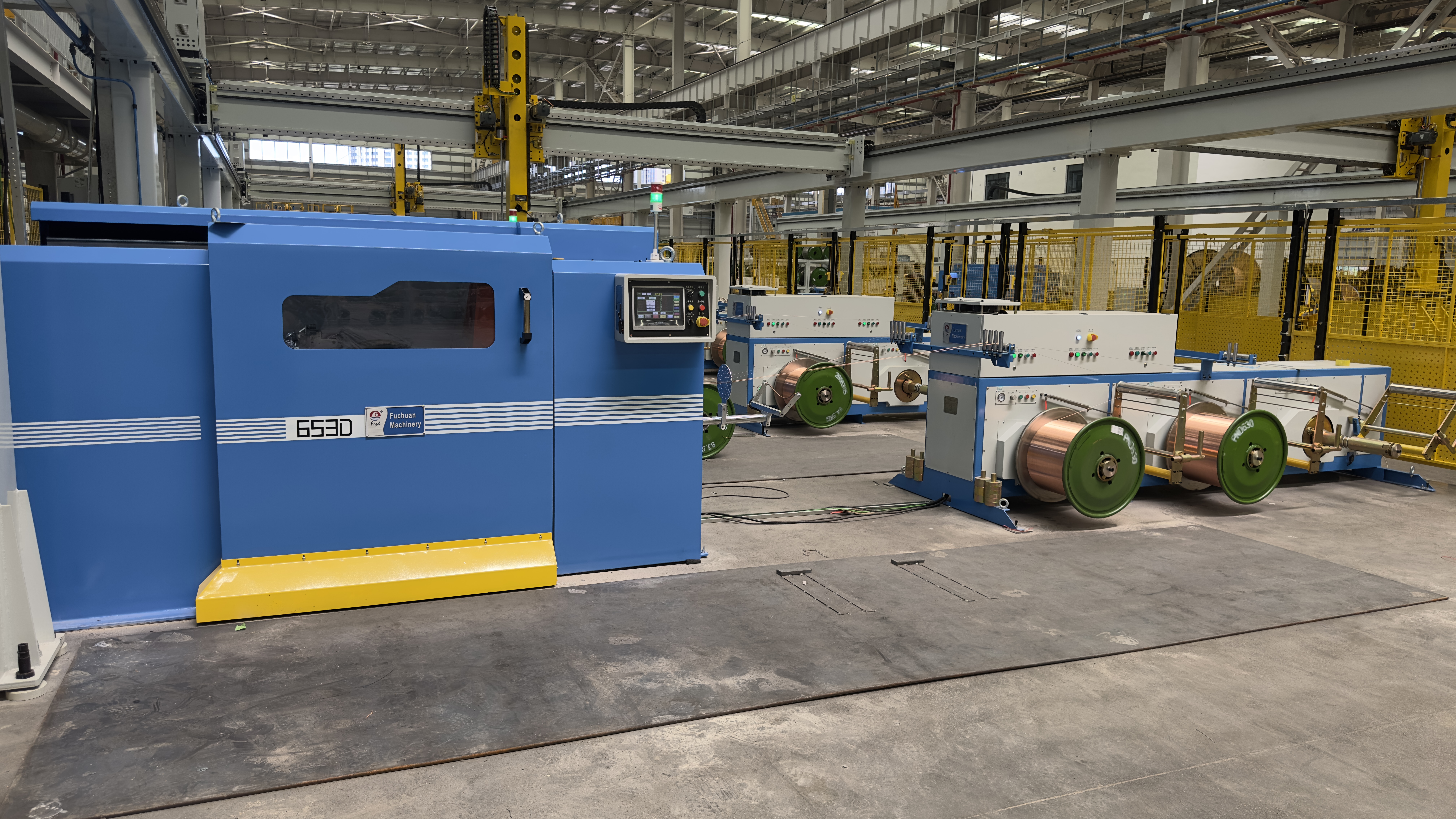

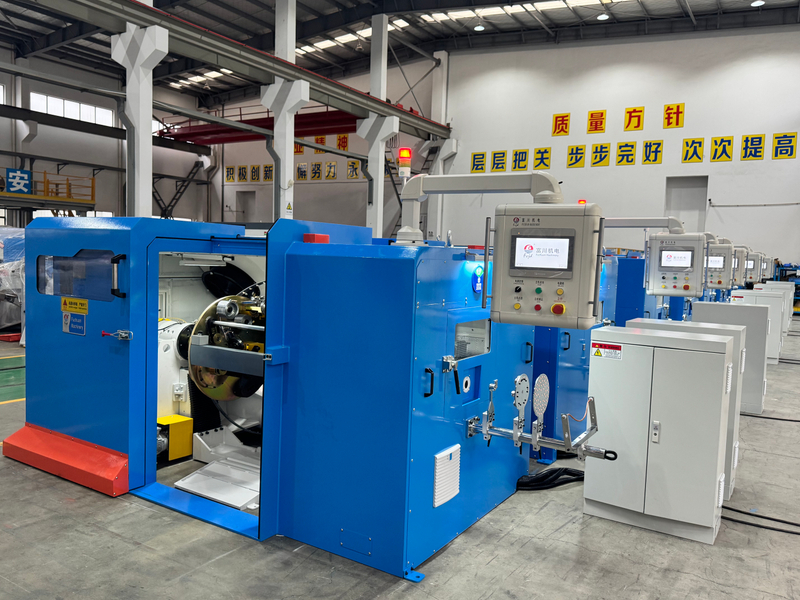

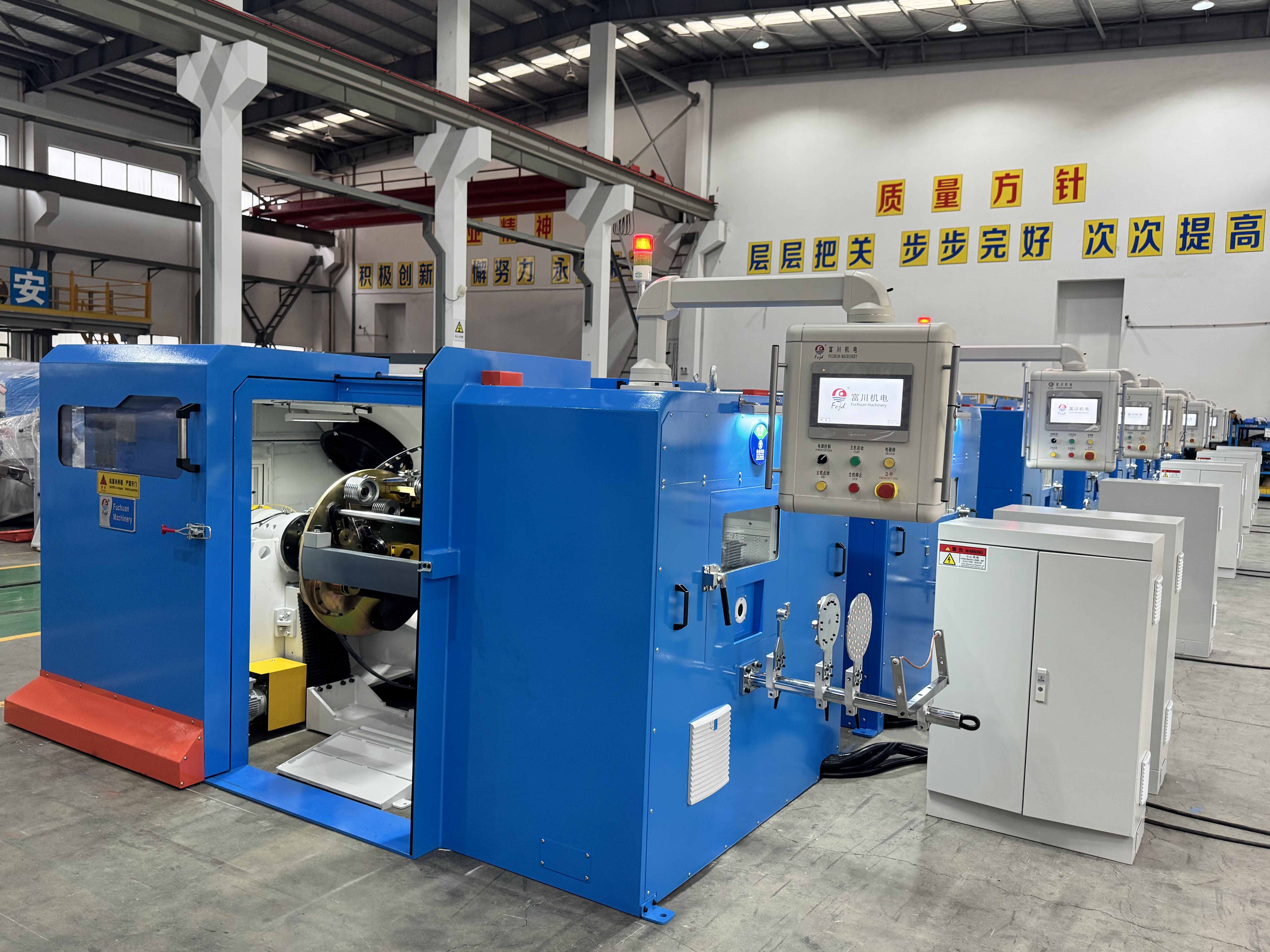

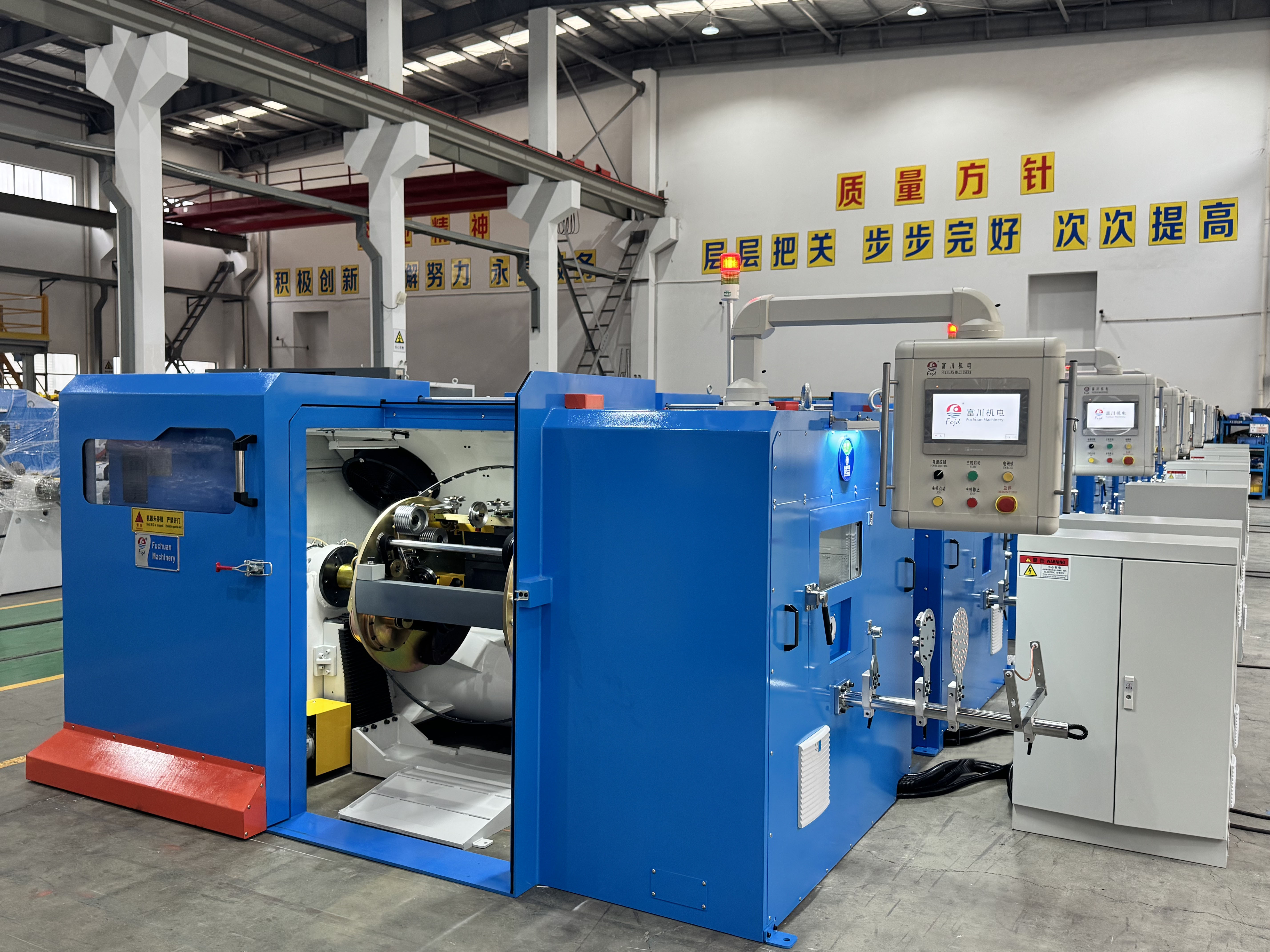

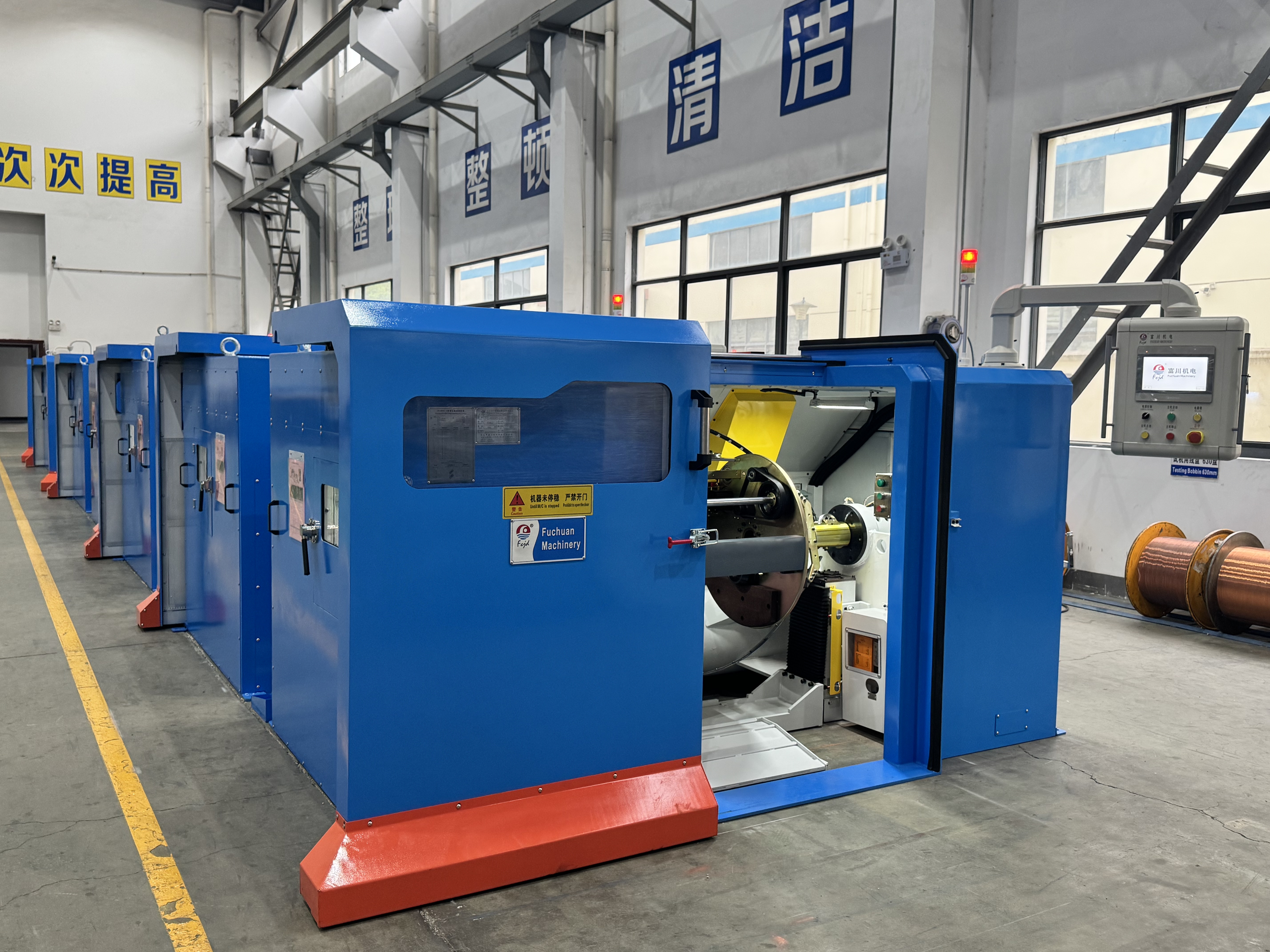

0.04-2.52mm copper annealed wire bunching twisting stranding machine

FC-653D Main Performance Parameters:
1. Application: Suitable for stranding bare stranded wire, tinned wire, copper-clad aluminum, enameled wire, alloy wire, etc. 1+6 can replace stranding instead of bundling
2. Single wire diameter range: φ0.12～φ0.68mm;
3. Stranded cross-sectional area: 0.35～6mm²;
4. Take-up reel: Iron reel φ630×φ125 (conical hole depth 20)×475mm×inner width 400-420;
5. Main motor speed: max2600rpm (5200T/min);
6. Twist pitch range: 10-100mm (electronic pitch);
7. Main motor: 15KW asynchronous servo motor + INOVANCE frequency converter;
8. Take-up motor: 3KW servo motor + reducer + servo controller;
9. Take-up motor: 1.8KW servo motor + servo controller;
10. Precision wiring: Stepper motor + precision ball screw wiring, wiring width and pitch adjusted via external touch screen, no need to stop the machine for adjustment;
12. Reel capacity: Approximately 500 kg;
11. Winding direction: S-direction/Z-direction both acceptable;
13. Braking: Employs an electromagnetic brake, automatically stopping when internal or external wire breakage or when the reel reaches a certain length;
14. Take-up tension control: Servo motor drives take-up, using a high-precision closed-loop tension control system to maintain constant internal take-up tension from empty to full reel, avoiding conductor stretching and other quality issues;
15. Bearings: Swedish SKF bearings are used in the spindle bearing housing, and other bearings are imported Japanese NSK/NTN bearings;
16. Loading spools: Electric screw lifting device;
17. Spindle lubrication method: Automatic oil supply system (automatic timed oiling device controlled by PLC program);
18. Noise level: ≤79dB;
19. Machine dimensions (mm): 3650L×2000W×2200H;
20. Weight: 4500 kg;
21. Coating: RAL7035;
22. Packaging: Waterproof simple packaging
23. Direction: The machine is operated with the left hand on the front, and the right hand is used for threading when facing the front door.
