Availability: | |
---|---|
12months
Electric
New
CCC, ISO, CE
12 Months
Automatic

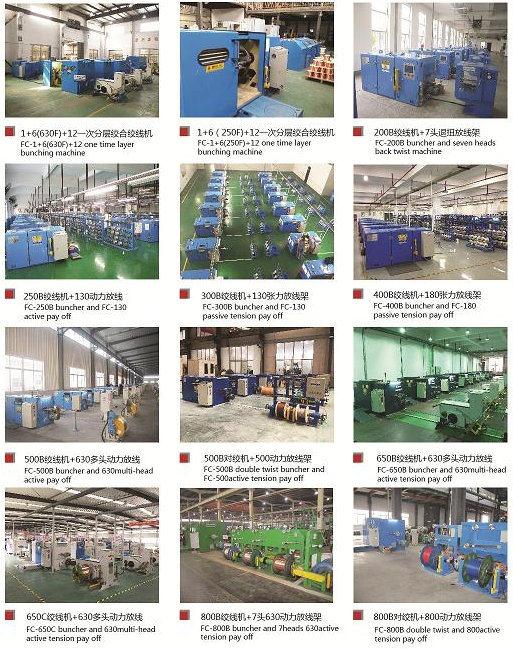

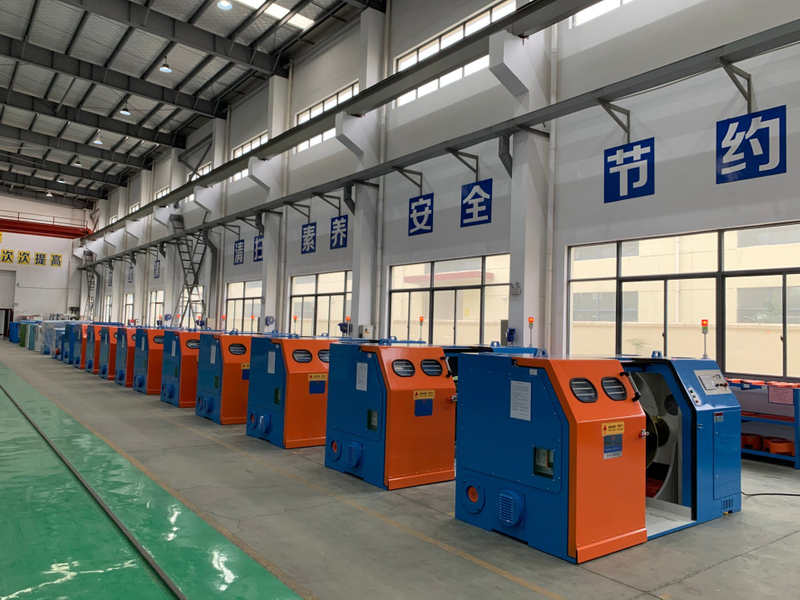

Equipment model | FC-500B | FC-650B | FC-650B-2 | FC-800B | |||||||
Twisting usage | Apply for the twisting of above seven pcs of bare copper wires,tinned wires,silver jacketed wires and enameled wires),double twisting for core wires. | ||||||||||
Single wire diaφ(mm) | 0.08-0.45 | 0.15-1.04 | 0.37-1.7 | 0.37-1.7 | |||||||
Stranding section area | 0.05-2.5 | 0.35-6.0 | 1.0-16 | 1.0-16 | |||||||
Core wire single wire diaφ(mm) | 0.5-1.5 | 0.5-3.0 | 1.0-4.0 | 1.0-4.0 | |||||||
Core wire stranding outer dia(mm) | 1.0-3.0 | 1.0-6.0 | 2.0-8.0 | 2.0-8.0 | |||||||
Pitch(mm) | 6.3-52.3 | 11.6-100 | 20-160 | 23-147 | |||||||
Direction of lay | Optional for right or left | ||||||||||
Take up bobbin(mm) | Dia500 | Dia630 | Dia630 | Dia800 | |||||||
Max rotating speed | 3000rpm(6000TPM) | 2000rpm(4000TPM) | 1600rpm(3200TPM) | 1600rpm(3200TPM) | |||||||
Main motor power | 5.5kw | 7.5kw | 11kw | 15kw | |||||||
Inverter power | 5.5kw | 7.5kw | 11kw | 15kw | |||||||
Tension control method | Magnetic powder clutch+PLC+touchscreen,ensure the constant tension from empty to full bobbin | ||||||||||
Magnetic powder clutch | 1.2kgf | 5kgf | 10kgf | 10kgf | |||||||
Protection | 1.wire inside and outside is broken,automatically brake/stop 2.The preset length is arrived | ||||||||||
Brake mode | Electromagnetic brake | ||||||||||
Traversing method | Rolling wire with ring drive units,winding pitch and breadth are adjustable | ||||||||||
Operation mode | Touchscreen operation | ||||||||||
Dimension(mm) | 2680L*1250W*1500H | 3300L*1550W*1800H | 3400L*1600W*1800H | 4600L*2000W*2000H |
Quick Details:
Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires).
Characteristics:
1.1 High production speed, constant tension from empty to full bobbin, especially for high quality stranding wire.
1.2. Use shaft to calculate meters, less than 0.01% error for a certain wire&cable.
1.3. With FC-100 active back-twist pay-off machine to achieve bunching instead of twisting.
1.4. Especially for twisting small cross-section area.
1.5. Use synchronous belt drive,
1.6. Change guide wheel to change lay distance, easy to operate.
cable machinery manufacturers |
SpecifIcations:
Equipment Models | FC-200B-6 | FC-250B | FC-300B | FC-400B | |
Twisting Usage | Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires). | ||||
Single Wire Dia(mm) | 0.016~0.08 | 0.03~0.18 | 0.05~0.28 | 0.05~0.32 | |
Stranding Section Area(mm²) | 0.0014~0.035 | 0.0049~0.3 | 0.0137~0.45 | 0.0137~1.0 | |
Pitch(mm) | 0.8~4.0(14 classes) | 0.8~10.8(24classes) | 1.6~21.6(24classes) | 3.1~33.3(24classes) | |
Direction of Lay | Free to right or left | ||||
Take-up Bobbin(mm) Outer dia*bore*outer width | 200*31*135 | 300*30*185 | 250*30*185 300*30*185 | 300*30*185 400*56*300 | |
Max Rotating Speed(rpm) | 5000rpm(10000tpm) | 4000rpm(8000tpm) | 3500rpm(7000tpm) | 3500rpm(7000tpm) | |
Main Motor Power | 2.2KW | 3.7KW | 3.7KW | 3.7KW | |
Inverter Power | 2.2KW | 3.7KW | 3.7KW | 3.7KW | |
Tension Control | Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin | ||||
Magnetic Powder Clutch | 0.05kgf | 0.3kgf | 0.6kgf | 0.6kgf | |
Protection | automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived | ||||
Brake Mode | Electromagnetic brake | ||||
Traversing Method | Rolling wire with ring drive units, winding pitch and breadth are adjustable | ||||
Operation Mode | Touch Screen Operation | ||||
Dimension L*W*H | 2000*960*1100 | 2300*1100*1330 | 2300*1100*1330 | 2850*1150*1350 |
Model FC-1000B large wire high speed bunching machine and double twist bunching machine
1.1 Japanese Technology, product in China
1.2 Apply for the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.
Characteristics:
2.1 Latest developed machine.
2.2 This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),
2.3 low power, small floor place ,low noise and other merits.
Specification:
Equipment models | FC-1000B |
Twisting usage | Apply for the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires. |
Single wire dia(mm) | φ0.30-φ1.7 |
Stranding section area(mm²) | 6.0-35.0 |
Core wire single wire dia | φ2.0-φ5.0 |
Core wire stranding outer dia | φ4.0-φ10 |
Pitch(mm) | 35-200(12zones) |
Direction of lay | Optional for right or left |
Take up bobbin Outer dia*bore*outer width | φ1000*φ80*750 |
Max rotating speed | 1000(2000twist) |
Main motor power | 18.5KW |
Inverter power | 18.5KW |
Tension control method | Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin |
Magnetic powder clutch | 20kgf |
Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |
Brake mode | Electromagnetic brake |
Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable |
Operation mode | Touch screen operation |
Dimension(mm) | 4000L*2200W*2100H |
Model FC-1600B large wire high speed bunching machine and double twist bunching machine
The technology of this machine is brought from Japan and put in production in JiangSu
Merits: It is the latest developed machine. This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),low power, small floor place ,low noise and other merits.
Equipment models | FC-1600B |
Twisting usage | It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires. |
Single wire dia(mm) | φ0.50-φ2.52 |
Stranding section area(mm²) | 16.0-95 |
Core wire single wire dia | φ3.0-φ10.0 |
Core wire stranding outer dia | φ8.0-φ20.0 |
Pitch(mm) | 80-350(12zones) |
Direction of lay | Optional for right or left |
Take up bobbin Outer dia*bore*outer width | φ1600*φ80*1180 |
Max rotating speed | 600(1200twist) |
Main motor power | 30KW |
Inverter power | 30KW |
Tension control method | Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin |
Magnetic powder clutch | 40kgf |
Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |
Brake mode | Electromagnetic brake |
Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable |
Operation mode | Touch screen operation |
Dimension(mm) | 5000L*3000w*3000H |
