FC-500b Bare Copper Wire 0.05-1.72mm Twister Winding Cable Wire Making Bunching Stranding Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Computer Control

  • According Customer′s Requirement

  • 4500L*2600W*2500H(mm)

  • FC

  • China



FC-500b Bare Copper Wire 0.05-1.72mm Twister Winding Cable Wire Making Bunching Stranding Machine
FC-500b Bare Copper Wire 0.05-1.72mm Twister Winding Cable Wire Making Bunching Stranding Machine
FC-500b Bare Copper Wire 0.05-1.72mm Twister Winding Cable Wire Making Bunching Stranding Machine
FC-500b Bare Copper Wire 0.05-1.72mm Twister Winding Cable Wire Making Bunching Stranding Machine
FC-500b Bare Copper Wire 0.05-1.72mm Twister Winding Cable Wire Making Bunching Stranding Machine
FC-500b Bare Copper Wire 0.05-1.72mm Twister Winding Cable Wire Making Bunching Stranding Machine

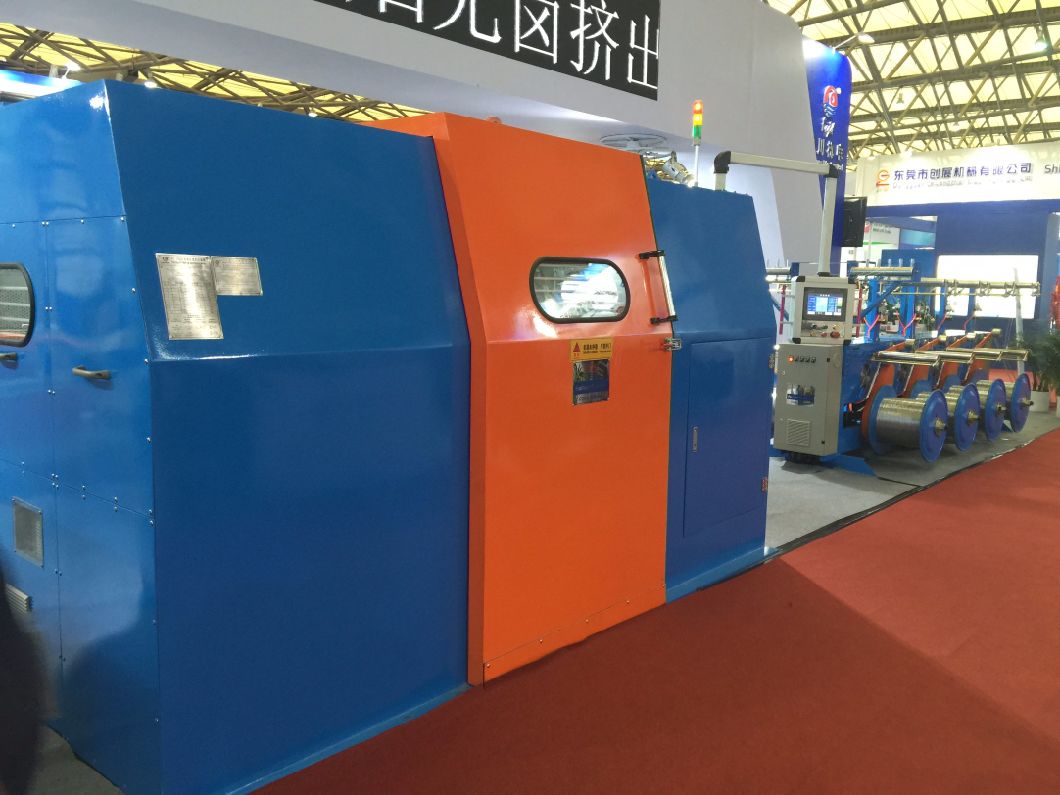

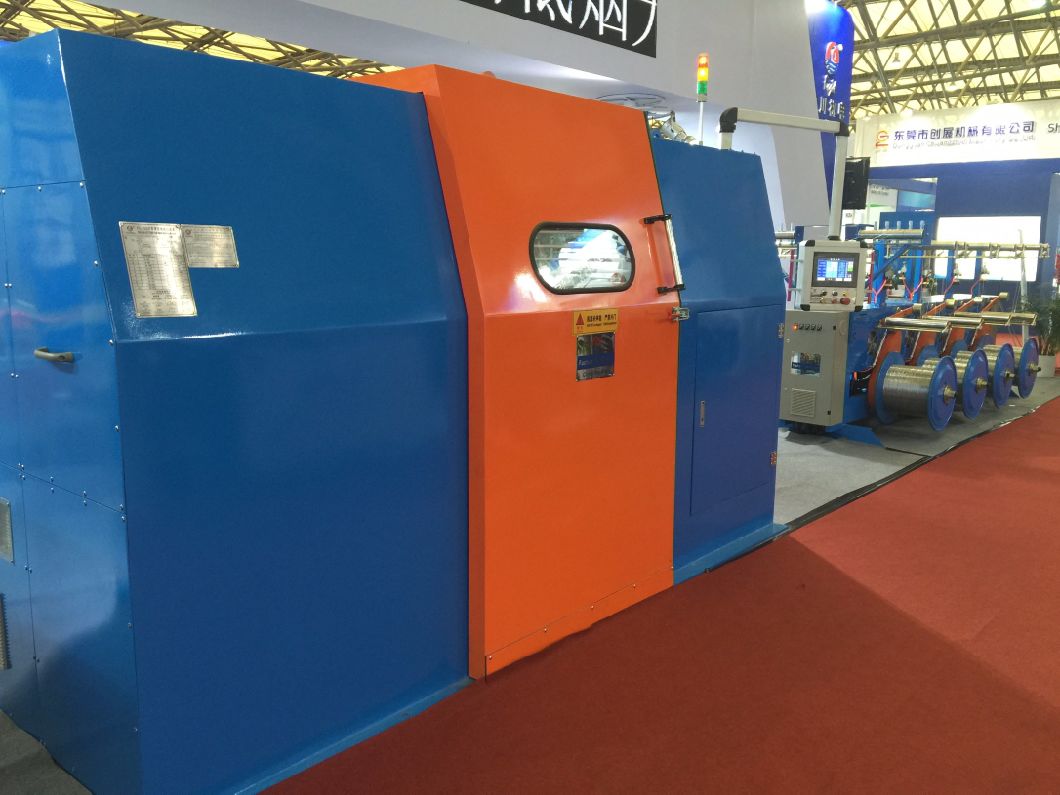

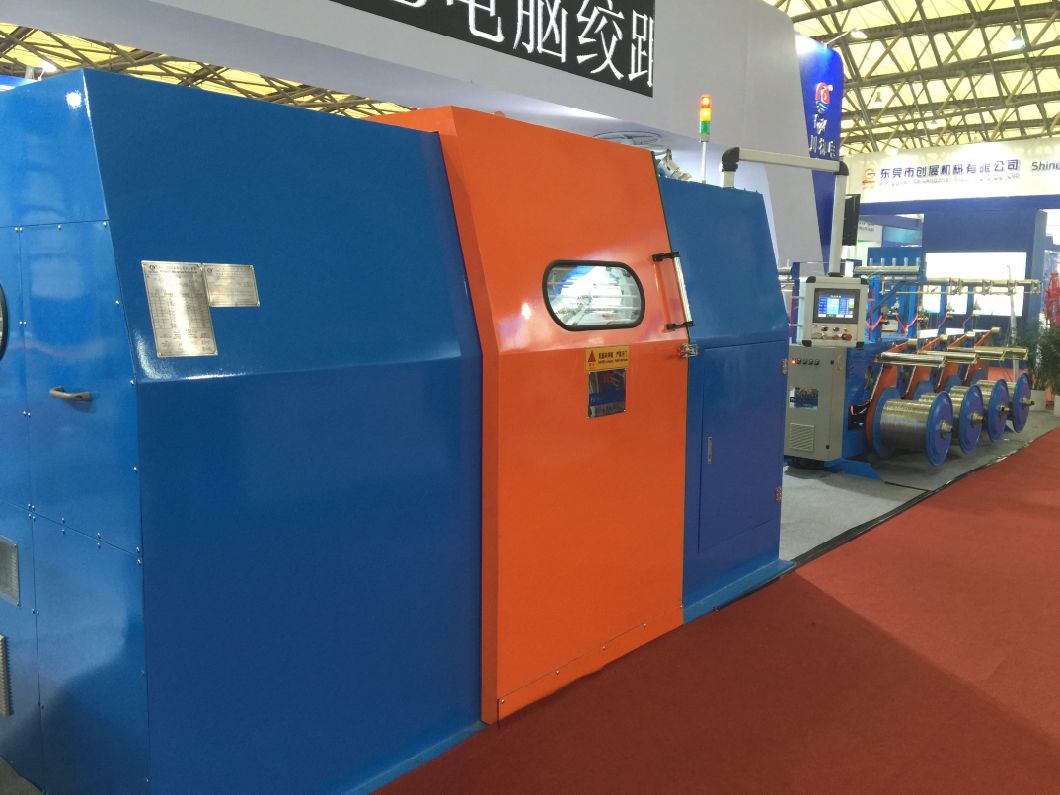

Fuchuan ® Series for model B Large Wire High Speed Bunching Machine and Double Twist Bunching Machine
Japan Technology, product in China
Characteristics:
New arrival, instead of the traditional 400 tube bunching machine with high productivity(4.5times than the machine, especially for 1+6 conductors twisting), save energy, smaller size, lower noise etc.
Equipment models FC-1000B FC-1250B FC-1600B
Twisting usage Apply for twisting of seven pcs or above, such as 1) bare copper wires, 2) tinned wires, 3)silver jacketed wires ,4)enameled wires, 5)double twisting for core wires.
Single wire dia(mm) 0.30-1.7 0.5-2.14 0.5-2.52
Stranding section area (mm²) 6.0~25.0
6.0~35.0
16.0~95.0
Core wire single wire dia(mm) 2.0~5.0 3.0~6.0 3.0-10
Core wire stranding outer dia(mm) 4.0~10.0 6.0~15.0 8.0~20.0
Pitch(mm) 35-200(12 classes) 50-250(12 classes) 80-350(12 classes)
Direction of lay Free for right or left

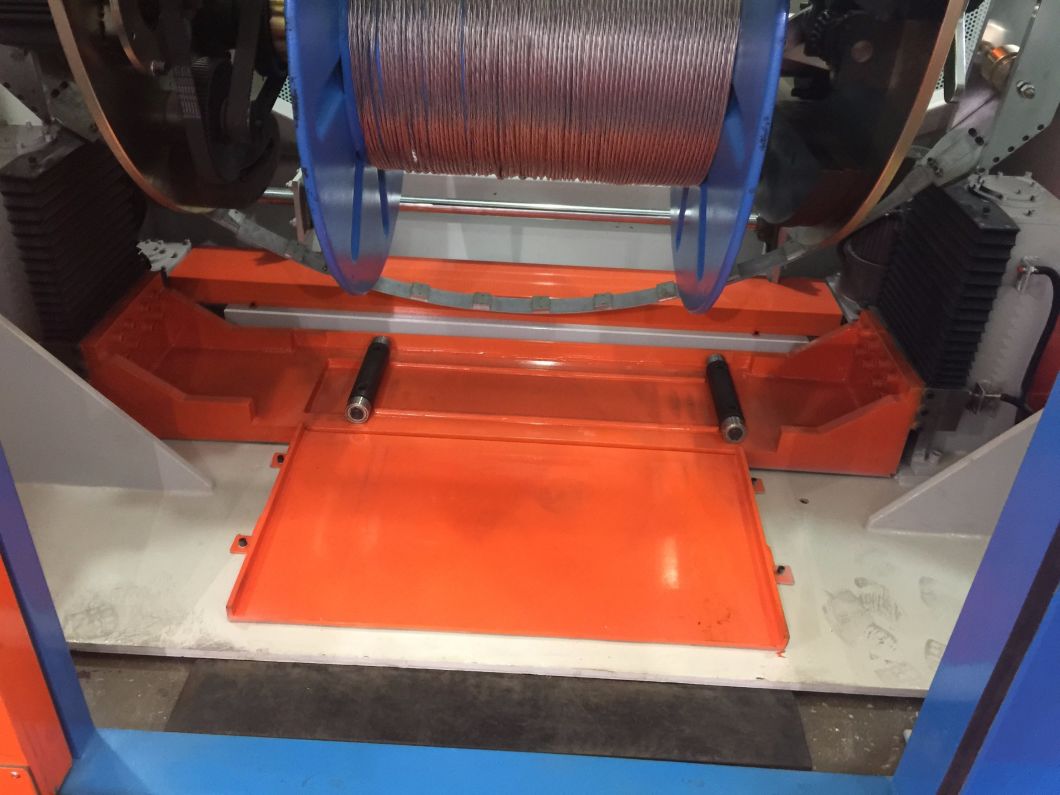

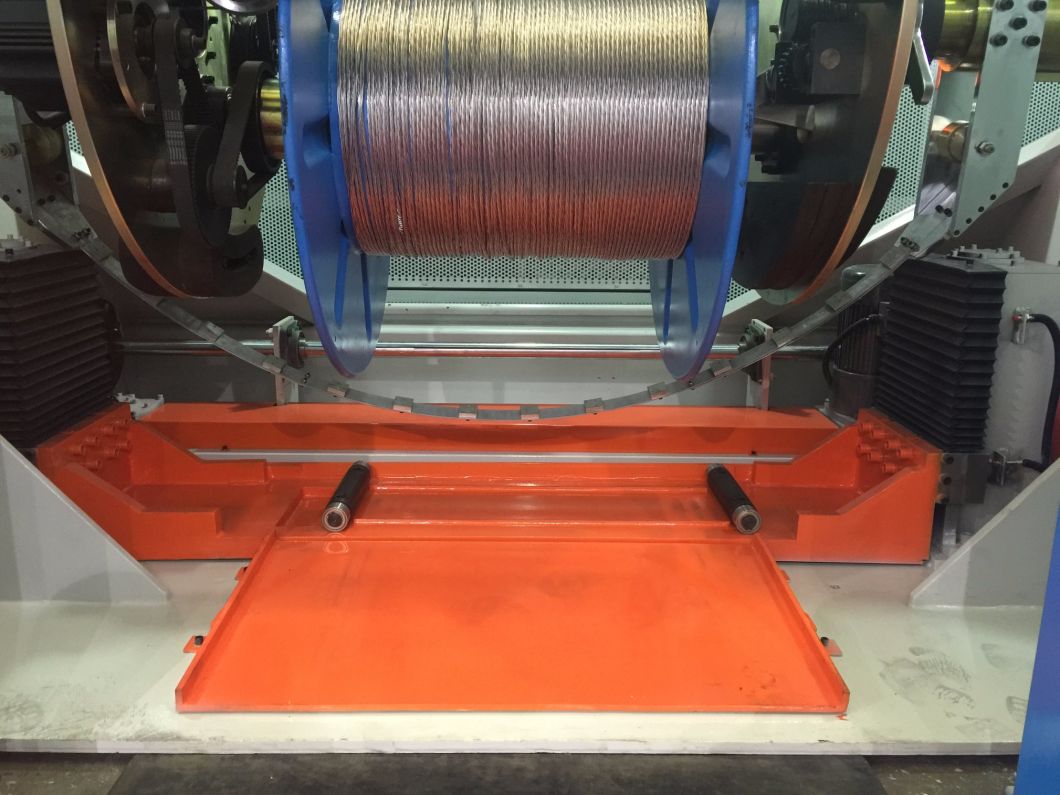

Take up bobbin
Outer dia*bore*outer width
1000*80*750 1250*80*950 1600*80*1180
Max rotating speed 1000rpm(2000twist) 800rpm(1600twist) 600rpm(1200twist)
Main motor power 18.5KW 22KW 30KW
Inverter power 18.5KW 22KW 30KW
Tension control Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin
Magnetic powder clutch 20kgf 20kgf 40kgf
Protection automatically brake/stop 1)wire inside and outside is broken
2)the preset length is arrived
Brake mode Electromagnetic brake
Traversing method Rolling wire with ring drive units, winding pitch and breadth are adjustable
Operation mode Touch screen operation
Dimension L*W*H(mm) 4000*2200*2100 4500*2600*2500 5000*3000*3000
