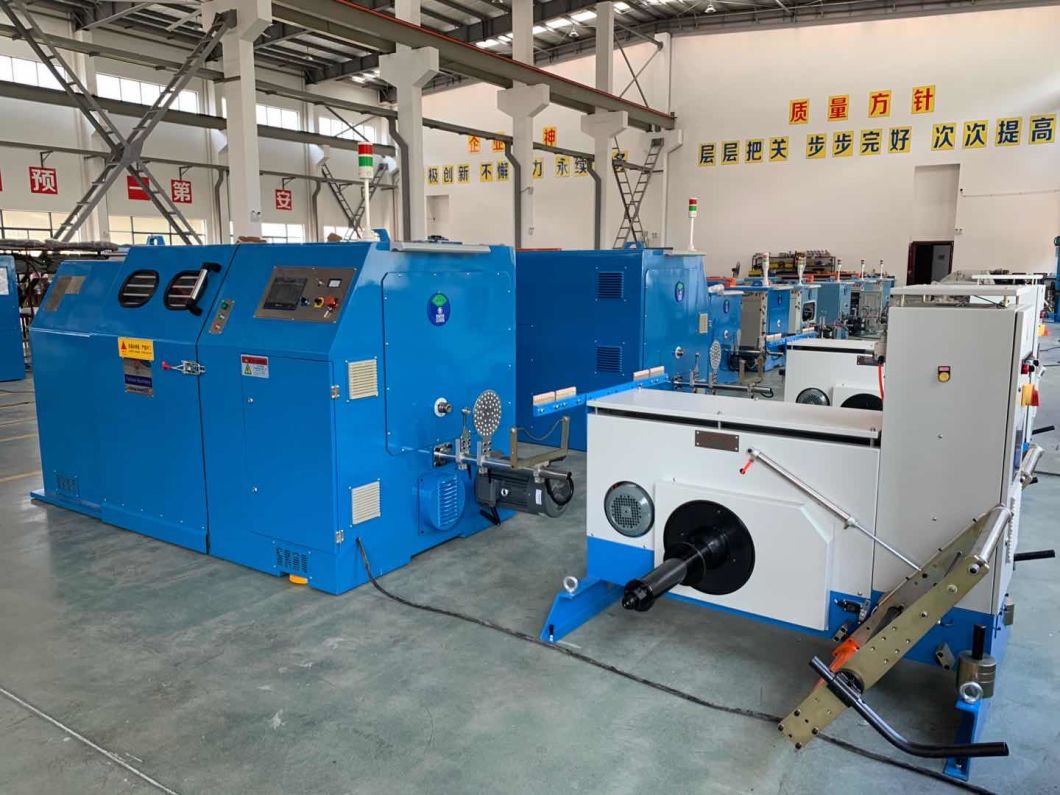

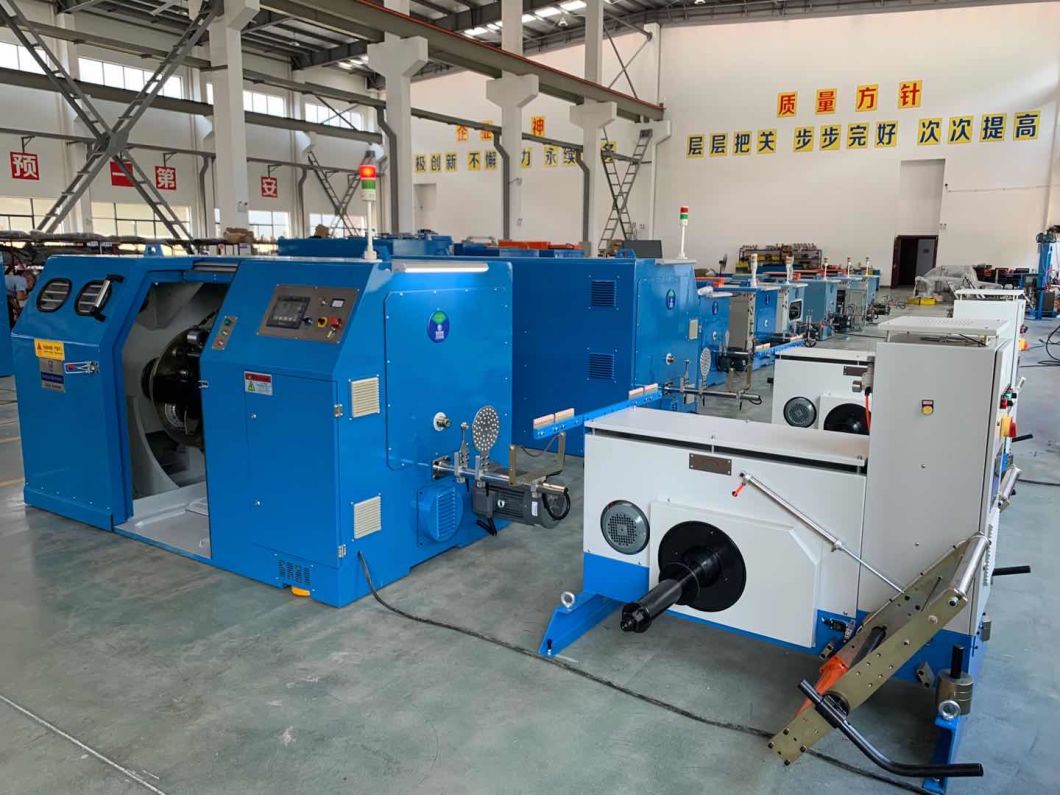

Usage: It is applied to the stranding of bare twisted wire, tinned, copper covered aluminum, lacquer wire and alloy wire. 1+6 may twist instead of bunching.

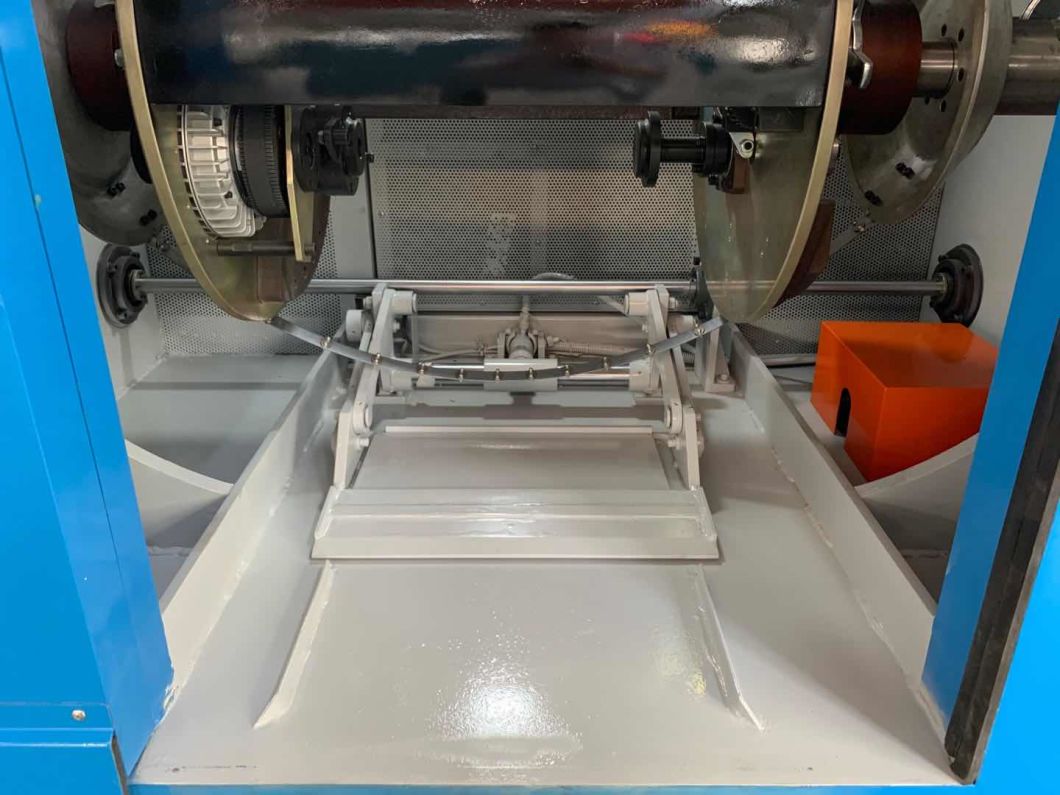

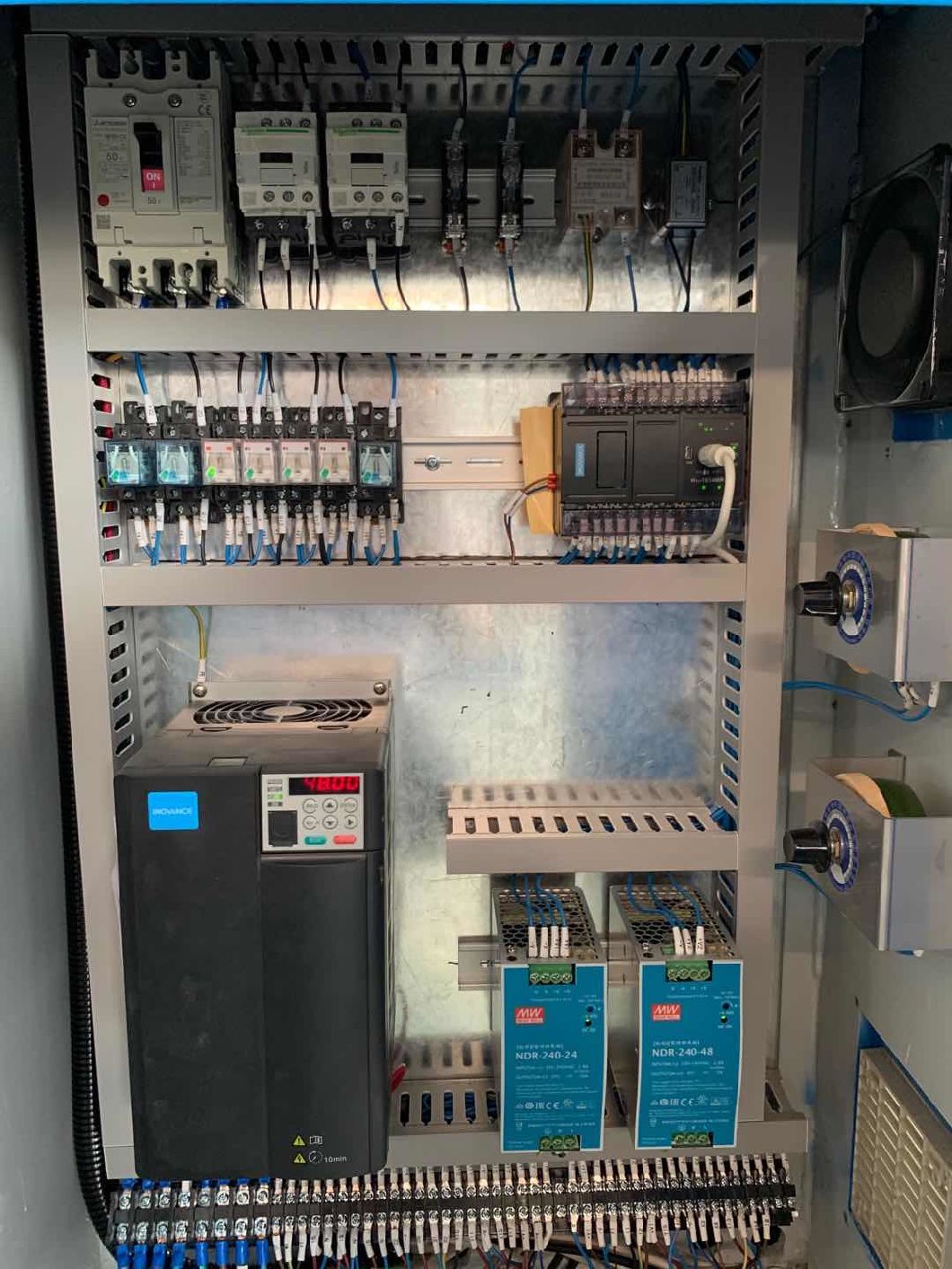

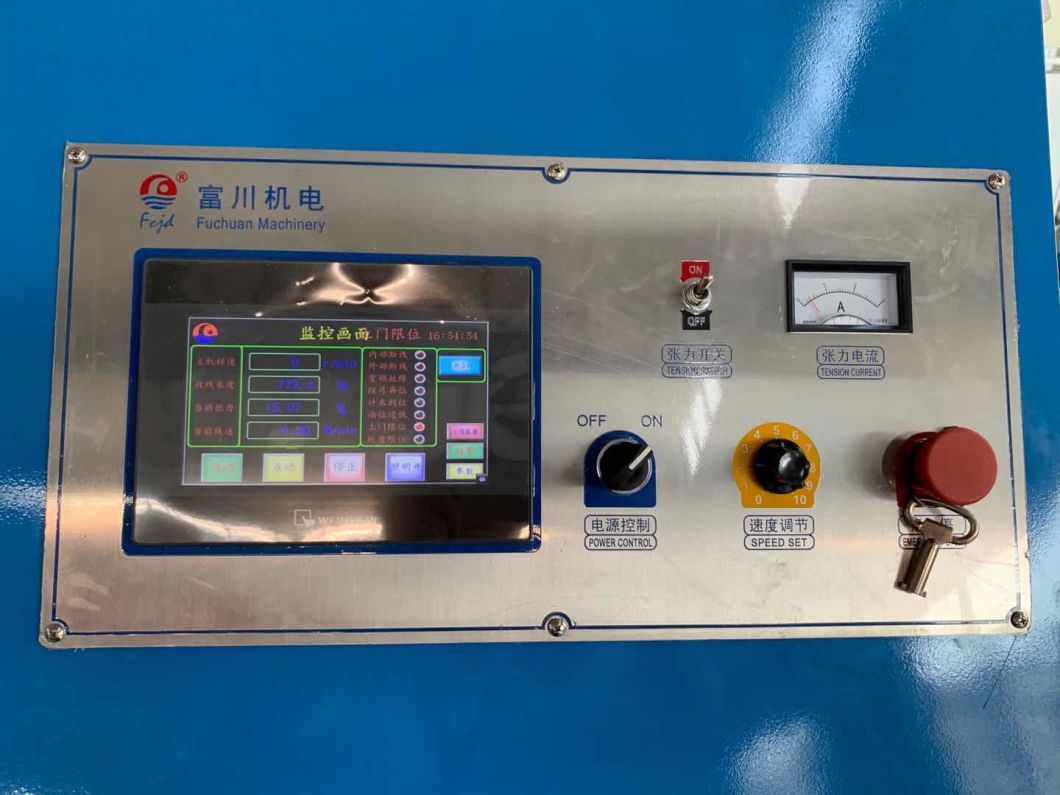

2.Diameter of single copper wire: φ0.16~φ0.70mm 3.Outer diameter of wire: φ0.84~φ3.2mm; 4.Cross section area: φ0.40~φ6mm2 5.Size of take up spool: φ630mm×430mm×φ125mm(according to client's drawings to make). 6. Maximum rotating speed: 2000RPM 7.Type of traverse: φ30mm rolling ring traverse, winding pitch and breadth are adjustable. 8. Standard lay length: 34 section 11.6~100mm (enclose list of standard lay length). 9. Main motor: 7.5KW AC motor +frequency converter 10. Weight of copper load: about 400kg 11. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate. 12. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter. 13. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension constant tension. 14. Drive bearing: it is adopted imported Japan bearing. 15. Synchronization strap: it is adopted imported American product. 16. Spool from top to bottom: it is adopted manual pump hydraulic landing. 17. Way of spindle lubrication: butter lubrication. 18. Index of noise: about 80dB 19.Dimension: (length×breadth×height): 3300×1450×1650mm 20. Weight: 4500Kg 21. Coating: apple green (may according to customer's requirements). 22. Package: simple waterproof packing 23. Direction: this machine is on your left, when you are in the face of front door, and pay-off on your right (may according to customer's requirements to make). 24. Sealing of machinery door: seal of plastic. 25. Spindle housings sealing: mechanical block oil ring
For more details, please feel free to contact me.
Usage: It is applied to the stranding of bare twisted wire, tinned, copper covered aluminum, lacquer wire and alloy wire. 1+6 may twist instead of bunching.
2.Diameter of single copper wire: φ0.16~φ0.70mm 3.Outer diameter of wire: φ0.84~φ3.2mm; 4.Cross section area: φ0.40~φ6mm2 5.Size of take up spool: φ630mm×430mm×φ125mm(according to client's drawings to make). 6. Maximum rotating speed: 2000RPM 7.Type of traverse: φ30mm rolling ring traverse, winding pitch and breadth are adjustable. 8. Standard lay length: 34 section 11.6~100mm (enclose list of standard lay length). 9. Main motor: 7.5KW AC motor +frequency converter 10. Weight of copper load: about 400kg 11. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate. 12. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter. 13. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension constant tension. 14. Drive bearing: it is adopted imported Japan bearing. 15. Synchronization strap: it is adopted imported American product. 16. Spool from top to bottom: it is adopted manual pump hydraulic landing. 17. Way of spindle lubrication: butter lubrication. 18. Index of noise: about 80dB 19.Dimension: (length×breadth×height): 3300×1450×1650mm 20. Weight: 4500Kg 21. Coating: apple green (may according to customer's requirements). 22. Package: simple waterproof packing 23. Direction: this machine is on your left, when you are in the face of front door, and pay-off on your right (may according to customer's requirements to make). 24. Sealing of machinery door: seal of plastic. 25. Spindle housings sealing: mechanical block oil ring
The company is a high-tech enterprise,specialize in design,development,manufacture,installation and debugging of wire and cable equipment. Products passed ISO9001:2008 quality management system certificate,and has the authorize of import and export.
