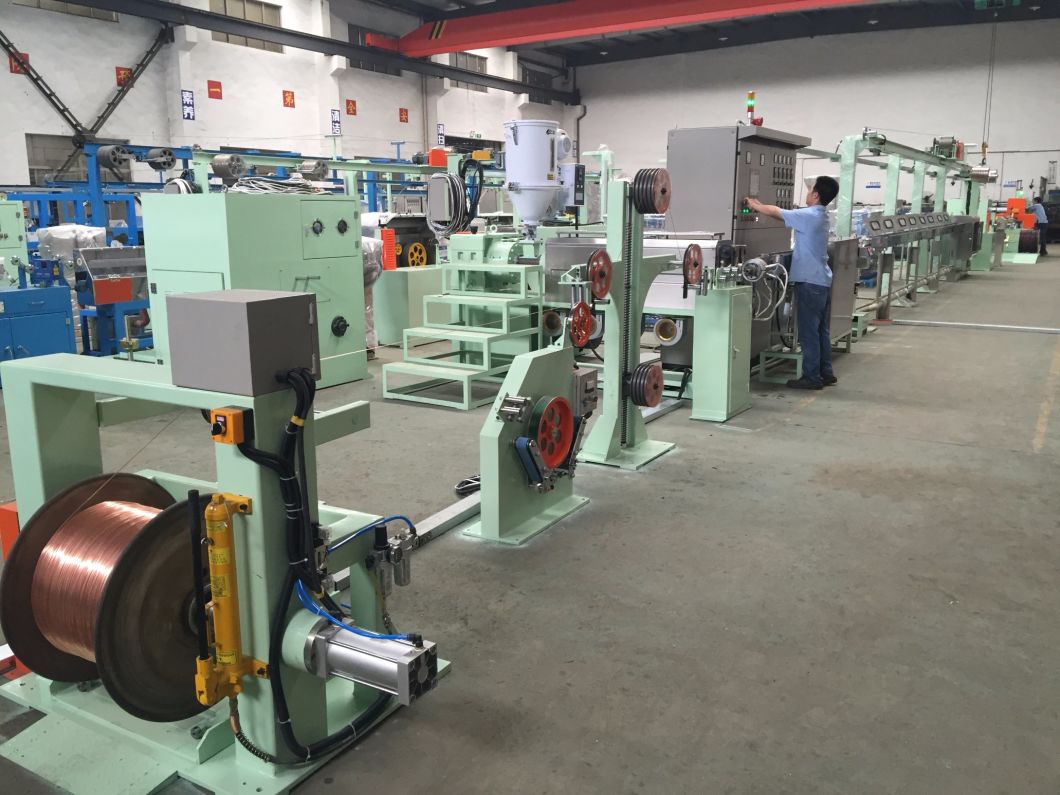

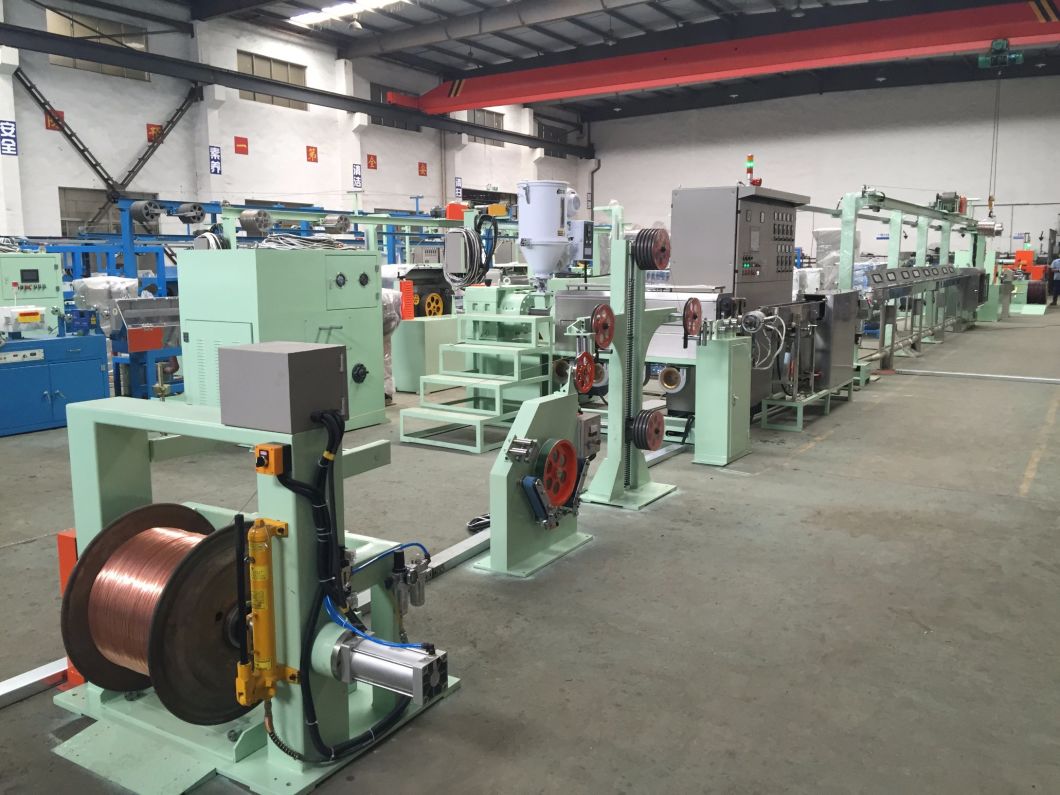

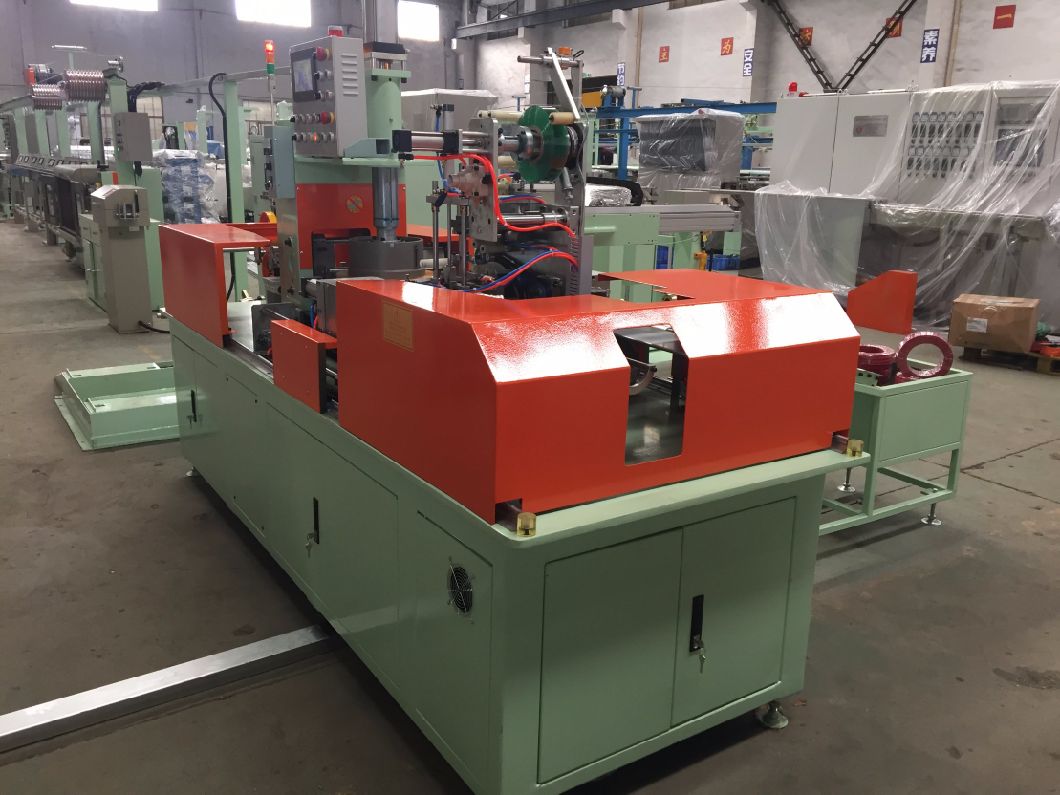

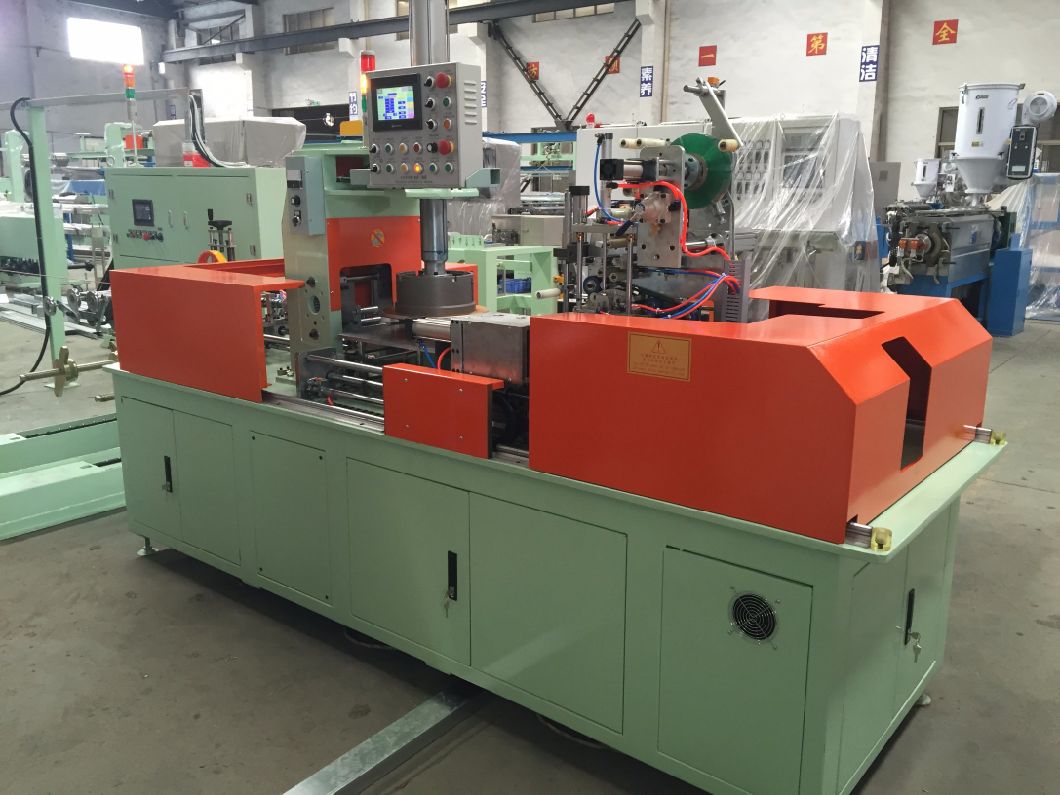

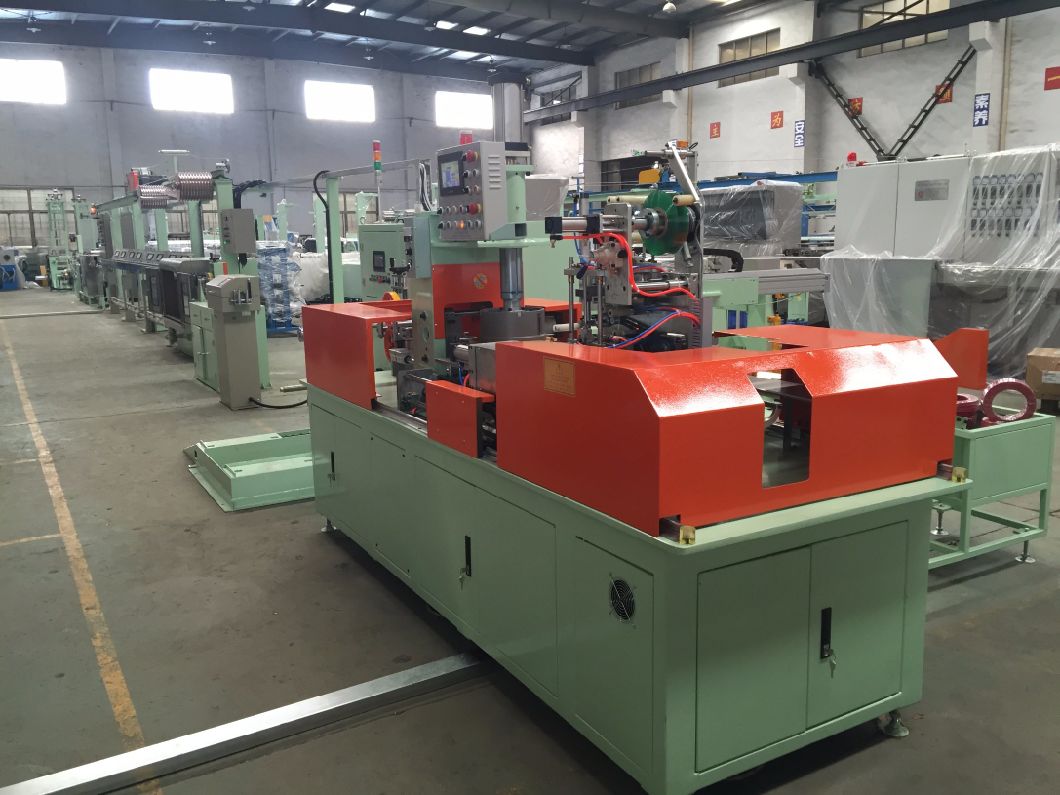

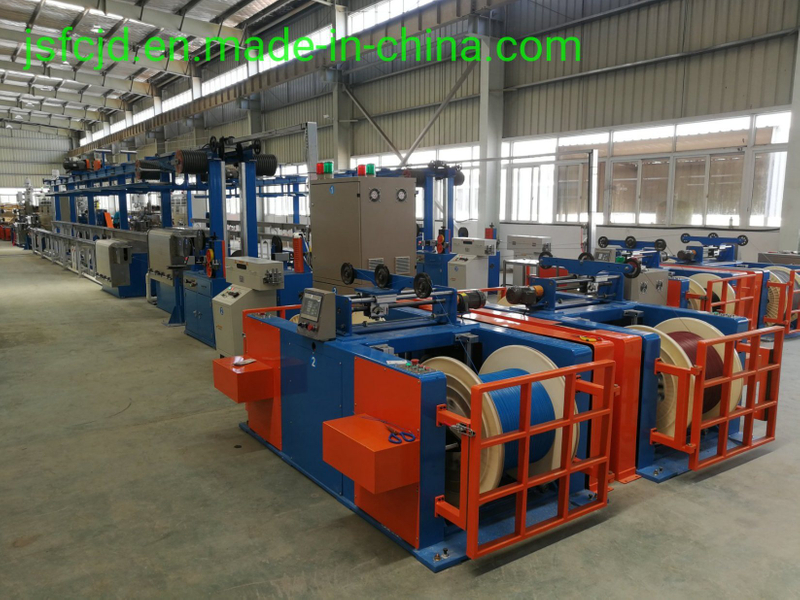

Electrical Cable Wire Making Winding Extrusion Bunching Double Twist Fuchuan China High Quality Machine

Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • Pipe Extruder

  • Polystyrene

  • Profile Extrusion Molding Machine

  • Multiple Feed

  • Integral Type Extruder

  • Single-Screw

Electrical Cable Wire Making Winding Extrusion Bunching Double Twist Fuchuan China High Quality Machine

Electrical Cable Wire Making Winding Extrusion Bunching Double Twist Fuchuan China High Quality Machine
Electrical Cable Wire Making Winding Extrusion Bunching Double Twist Fuchuan China High Quality Machine
Electrical Cable Wire Making Winding Extrusion Bunching Double Twist Fuchuan China High Quality Machine
Electrical Cable Wire Making Winding Extrusion Bunching Double Twist Fuchuan China High Quality Machine

High(FEP,FPA,ETFE plastic's)temperature extruder
Product Parameter:

Please feel free to contact me if you have any questions.
Model 35 45 65
Screw Dia(mm) φ35 φ45 φ65
Screw L/D Ratio 25:1 25:1 25:1
Revolving speed of screw 60rpm 60rpm 60rpm
Extrusion Output (kg/h) 15 20 45
Power for Main Machine (kw) 11 11 22
Conductor Dia(mm) Φ0.2~1.02 Φ0.6~2.0 Φ1.0~5.0
Finishied Wire Dia(mm) Φ0.6~1.67 Φ1.0~2.8 Core wire Φ1.5~6.0 Sheating wireΦ6.0~16
Pay off Type Active pay off or Tension pay off
Pre-heater 5KVA 5KVA 5KVA
Evacuating Device Vacuum Generator
Temperature Control 7Phase 7Phase 8Phase
Diametre Size Meter Manual/Laser Automatic Diametre Size Meter
Cooling Channel Single Lay or Double U type
Capstan Dia(mm) φ340 φ410 Φ410
Capstan Power 2.2KW Reduction Motor
Accumulator Horizonal Type
Max of Accumulator Length 200M
Take-up Biaxial Rooling Equipment/Shaft-mounted
Take-up Power 2.2KW 2.2KW 3.7KW
Total Power 38KW 38KW 65KW
