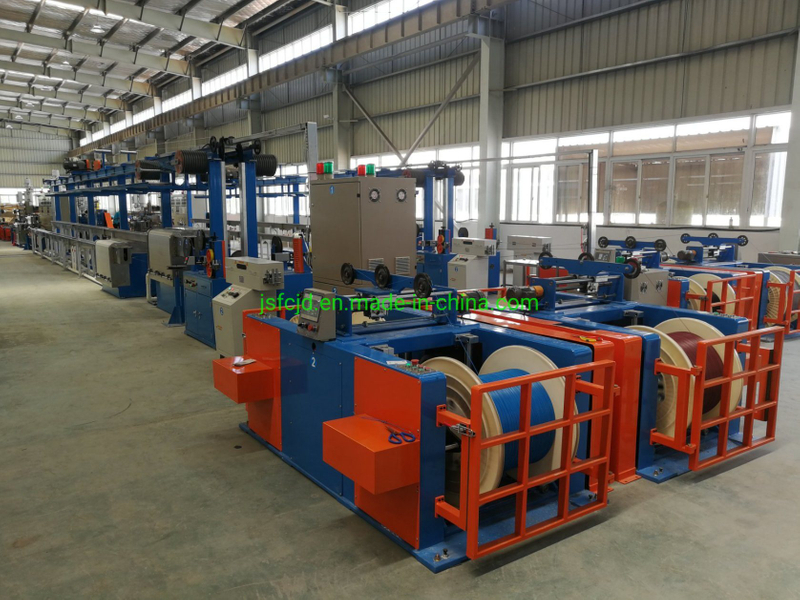

PVC PP PE TPU Insulated Core Wire Extruder Extrusion Winding Double Twisting Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Pipe Extruder

  • Extrusion Molding Machine

  • Multiple Feed

  • Integral Type Extruder

  • Single-Screw

  • Full Intermeshing

PVC PP PE TPU Insulated Core Wire Extruder Extrusion Winding Double Twisting Machine PVC PP PE TPU Insulated Core Wire Extruder Extrusion Winding Double Twisting Machine
PVC PP PE TPU Insulated Core Wire Extruder Extrusion Winding Double Twisting Machine
PVC PP PE TPU Insulated Core Wire Extruder Extrusion Winding Double Twisting Machine
PVC PP PE TPU Insulated Core Wire Extruder Extrusion Winding Double Twisting Machine
PVC PP PE TPU Insulated Core Wire Extruder Extrusion Winding Double Twisting Machine
PVC PP PE TPU Insulated Core Wire Extruder Extrusion Winding Double Twisting Machine
PVC PP PE TPU Insulated Core Wire Extruder Extrusion Winding Double Twisting Machine

Product Parameters:
Series for automobile wire high speed extruder line
Usage:applicable to PVC,PP.PE.SR-PVC and other plastic material for the automobile wire,insulated jacketed.
Equipment type 60+35 70+35 90+45
Screw dia(mm) 60 70 90
Pay off type 500-630active pay off or lut barrel pay off
Screw L/D ratio 26:1 26:1 26:1
Extrusion output 120 170 240
Main machine power(kw) 22 30 45
Wire dia(mm) 0.8-5.0 1.0-6.0 1.5-8
Cooling device Double layer model U
Max speed(m/min) 0-800 0-800 0-1000
Max wire accumulator length 300 300 300
Capstan power 3.7KW 5.5kw 5.5KW
Take up machine 1246automatic coiling machine,the plum blossom falls barrel machine,shaft type
