Availability: | |
---|---|
Above 7 PCS of Bare Copper Wire,Tinned Wire,Silver
0.08mm-0.28mm
0.035-0.45mm2
0.25mm-0.8mm
Optional for Right or Left
Push-Button Control
The technology of this machine is brought from Japan and put in production in Jiangsu. | ||||

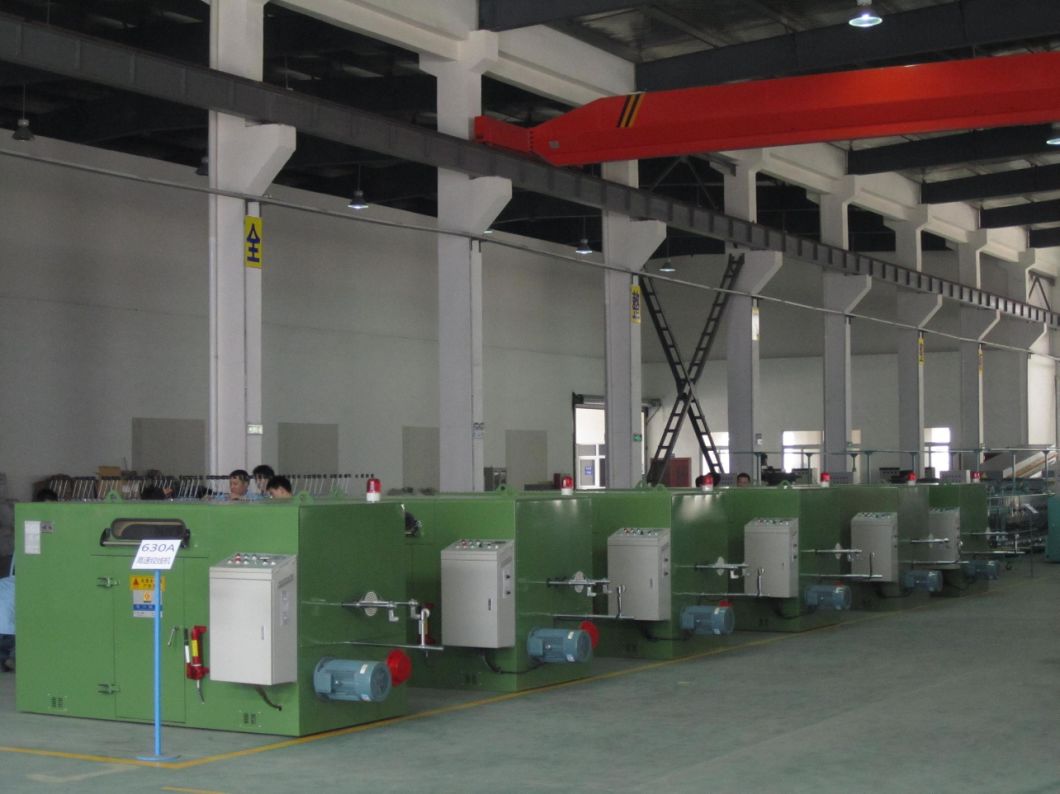

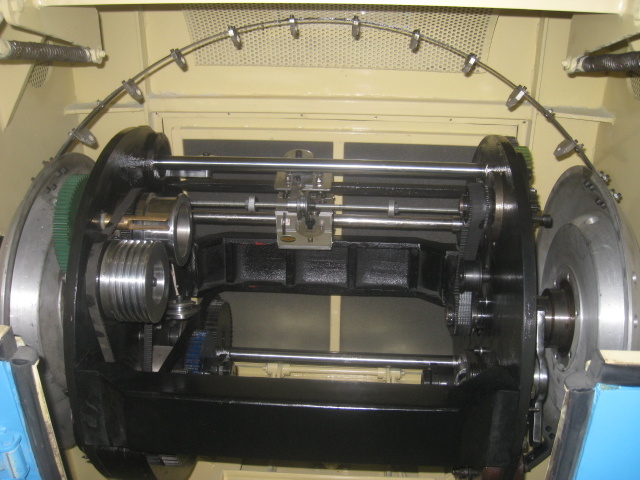

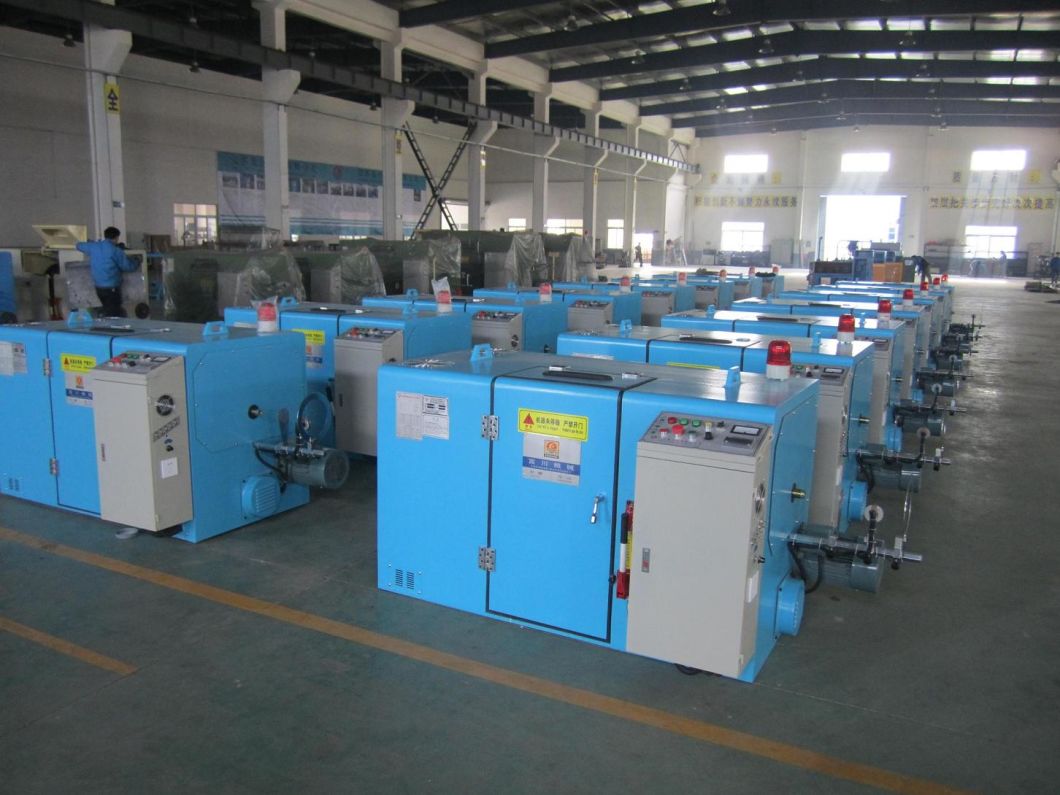

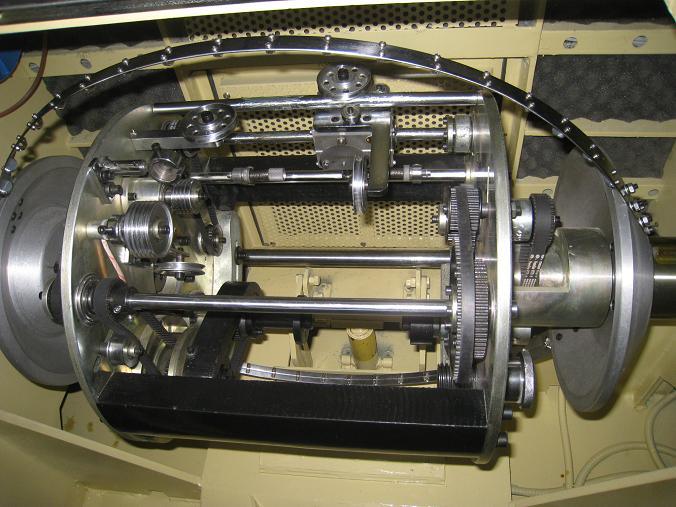

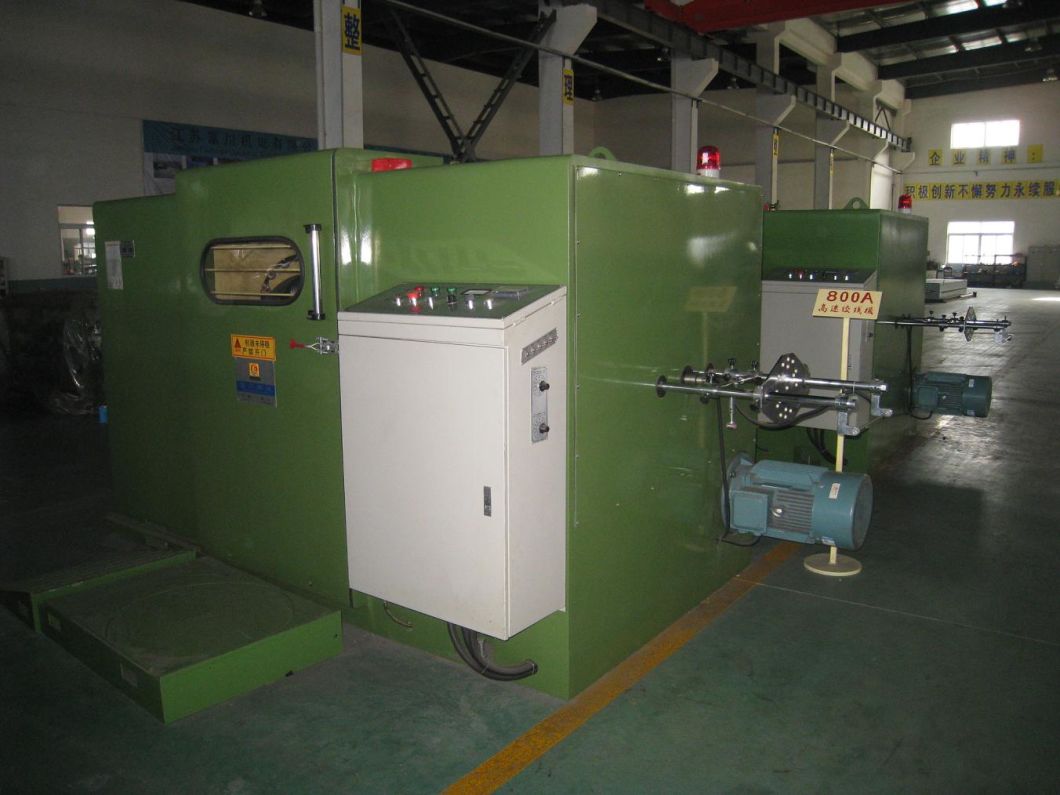

Series for Model-A big wire high speed bunching machine | ||||
Merits: It is the latest developed machine. this machine replace the traditional Model 400 tube bunching machine With the high productivity( it is 4.5times than tube machine for the 1+6 conductors normal bunching ),low power, small floor place, low noise and other merits. | ||||
Model | FC-300A | FC-500A | FC-630A | FC-800A |
Usage | It is applied to the twisting of above 7 pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires and double twisting for core wires. | |||
Single Wire Dia(mm) | Φ0.08~0.28 | Φ0.10~0.64 | Φ0.15~1.04 | Φ0.2~1.7 |
Stranding Section Area(mm²) | 0.035-0.45 | 0.05-2.5 | 0.5-6 | 1.0-16 |
Core Wire Single Wire Dia(mm) | Φ0.25~Φ0.8 | Φ0.75~Φ1.5 | Φ1.0~Φ3.0 | Φ1.0~Φ4.0 |
Core Wire Stranding Outer Dia(mm) | Φ0.5~Φ1.6 | Φ1.5~Φ3.0 | Φ2.0~Φ6.0 | Φ2.0~Φ8.0 |
Pitch(mm) | 4.5-17.5(10section) | 5.82-53.73(34section) | 11.48-100(36section) | 19.8-200(30section) |
Direction of Lay | optional for right or left | |||
Take-up Bobbin(mm) | Φ300*Φ30*160 | Φ400*Φ56*300/Φ500*Φ70*320 | Φ630*Φ56*475/Φ630*Φ125*475 | Φ800*Φ80*600 |
Max Rotating Speed(rpm) | 3000(6000twist) | 2200(4400twist) | 1600(3200twist) | 1200(2400twist) |
Main Motor Power | 3.7KW | 5.5KW | 7.5KW | 11KW |
Inverter Power | 3.7KW | 5.5KW | 7.5KW | 11KW |
Tension Control Method | Mechanism Friction | |||
Protection | Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived. | |||
Brake Mode | Electromagnetic Brake | |||
Traversing Method | Rolling ring drive units, winding pitch and breadth are adjustable. | |||
Operation Mode | push-button control | |||
Dimension(mm) | 2300L*1000W*1150H | 2800L*1280W*1300H | 3280L*1600W*1600H | 3600L*1850W*1800H |
