Availability: | |
---|---|
Electric
New
ISO, CE
12 Months
Automatic
>1,000,000 Shots
The technology of this machine is brought from Japan and put in production in Jiangsu. | ||||

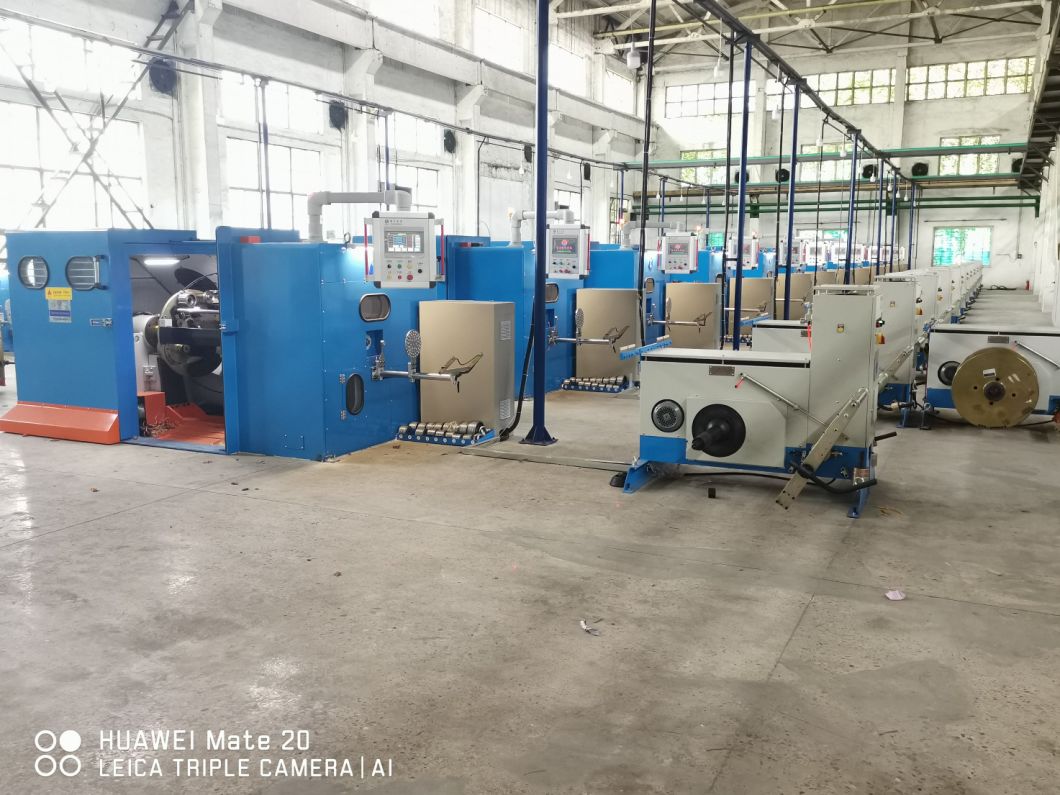

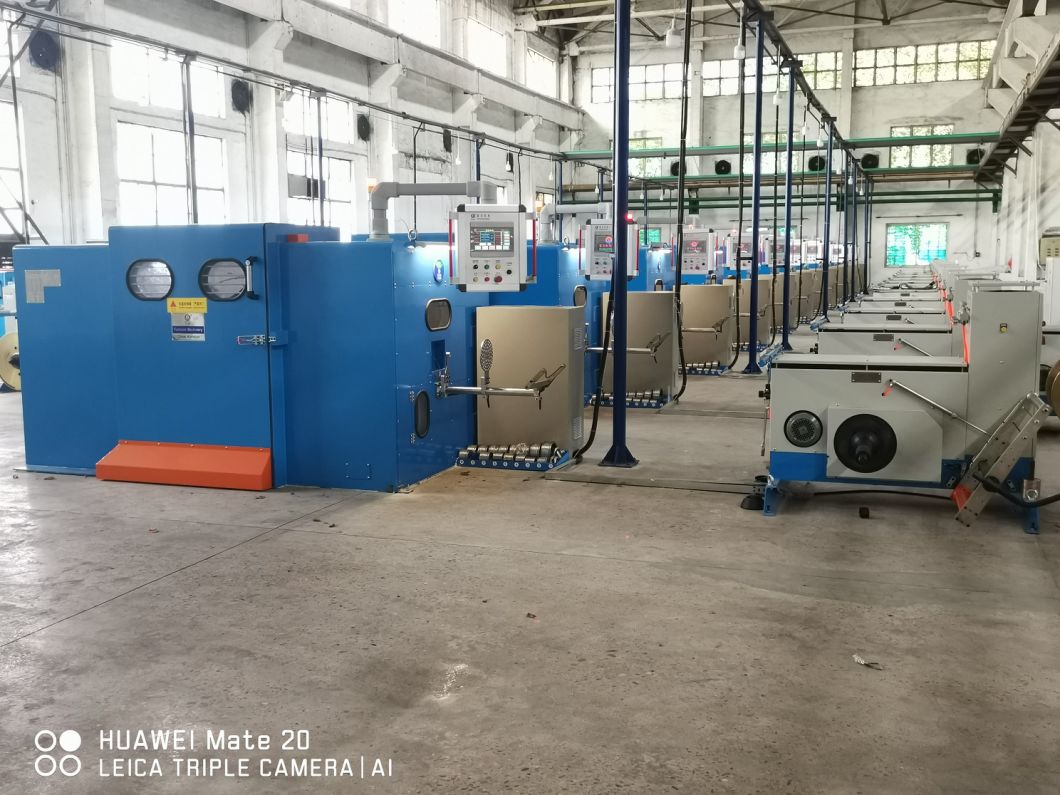

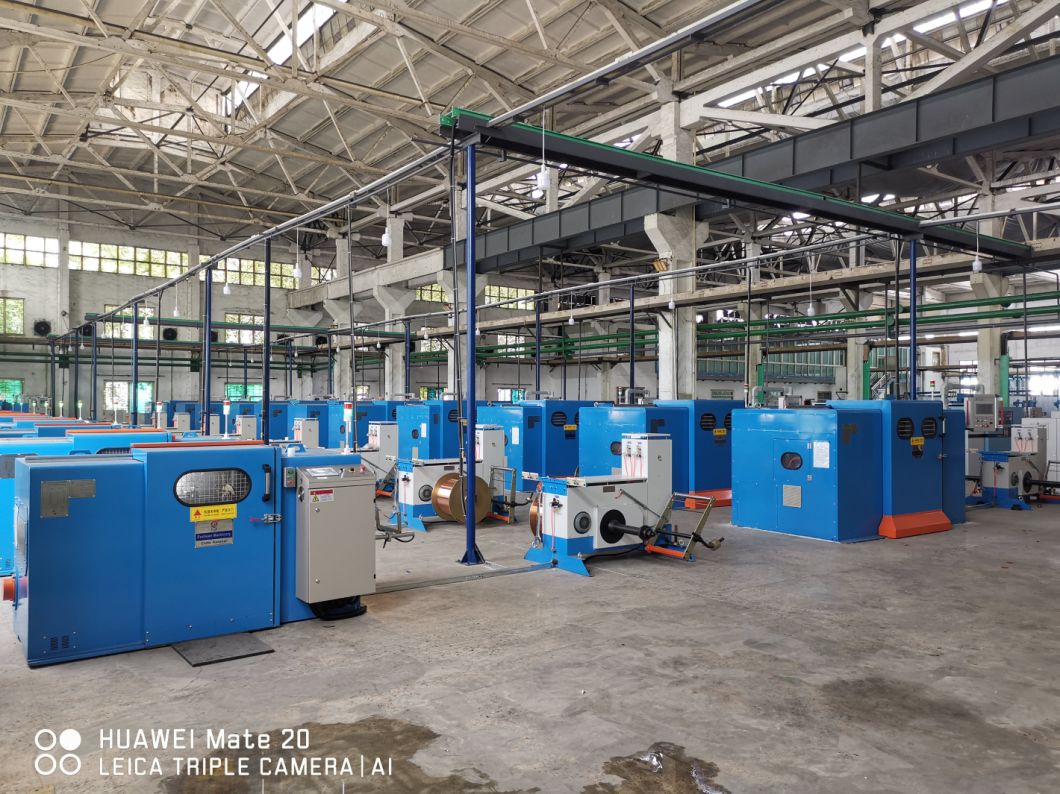

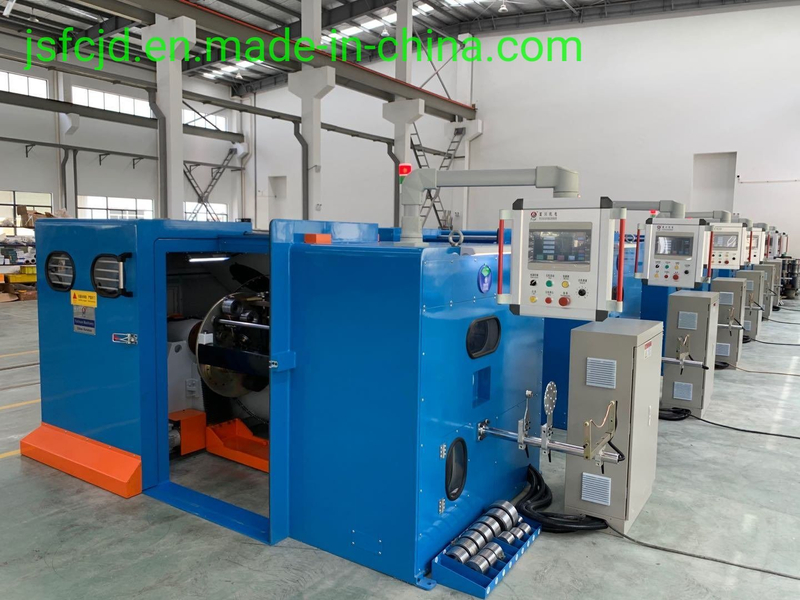

Series for Model-B normal wire high speed bunching machine & double twisting machine | ||||
Merits: With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire.The machine is driven by synchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate. | ||||
Equipment Model | FC-500B | FC-650B | FC-650C | FC-800B |
Usage | It is applied to the twisting of above 7pcs of bare copper wires,tinned wires,silver jacketed wires and enameled wires and double twisting for core wires. | |||
Single Wire Dia(mm) | Φ0.08~0.45 | Φ0.15~1.04 | Φ0.12~0.52 | Φ0.38~1.7 |
Stranding Section Area(mm²) | 0.05~2.5 | 0.35~6.0 | 0.30~4.0 | 1.0~16 |
Core Wire Single Wire Dia(mm) | Φ0.5~1.5 | Φ0.5~3.0 | Φ0.5~2.0 | Φ1.0~4.0 |
Core Wire Stranding Outer Dia(mm) | Φ1.0~3.0 | Φ1.0~6.0 | Φ1.0~4.0 | Φ2.0~8.0 |
Pitch(mm) | 6.3-52.3(24pcs pitch) | 11.6-100(34pcs pitch) | 11.6-100(34pcs pitch) | 23-147(20pcs pitch) |
Direction of Lay | optional for right or left | |||
Take-up Bobbin(mm) | Φ500*Φ56*375/Φ500*Φ127*375 | Φ630*Φ56*475/Φ630*Φ127*475 | Φ630*Φ56*475/Φ630*Φ127*475 | Φ800*φ80*600 |
Max Rotating Speed(rpm) | 3000(6000twist) | 2000(4000twist) | 2400(4800twist) | 1500(3000twist) |
Main Motor Power | 5.5KW | 7.5KW | 11KW | 15KW |
Inverter Power | 5.5KW | 7.5KW | 11KW | 15KW |
Tension Control Method | Touch screen+PLC+magnetic powder clutch,it may ensure the constant tension from empty bobbin to full bobbin. | |||
Magnetic Powder Clutch | 1.2kgf | 5kgf | 2.5kgf | 10kgf |
Protection | Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived. | |||
Brake Mode | Electromagnetic Brake | |||
Traversing Method | Rolling ring drive units, winding pitch and breadth are adjustable. | |||
Operation Mode | Touch Screen Operation | |||
Dimension(mm) | 2680L*1250W*1500H | 3300L*1550W*1800H | 3300L*1550W*1800H | 4600L*2000W*2000H |
