Copper Tinned Cable Wire Plastic Extrusion Extruder Twister Bunching Buncher Winding Drawing Stranding Coiling Making Doule Twist Cutting Recycling Machine
-
12months
-
Electric
-
New
-
ISO, CE, VDE
-
12 Months
-
High Precision

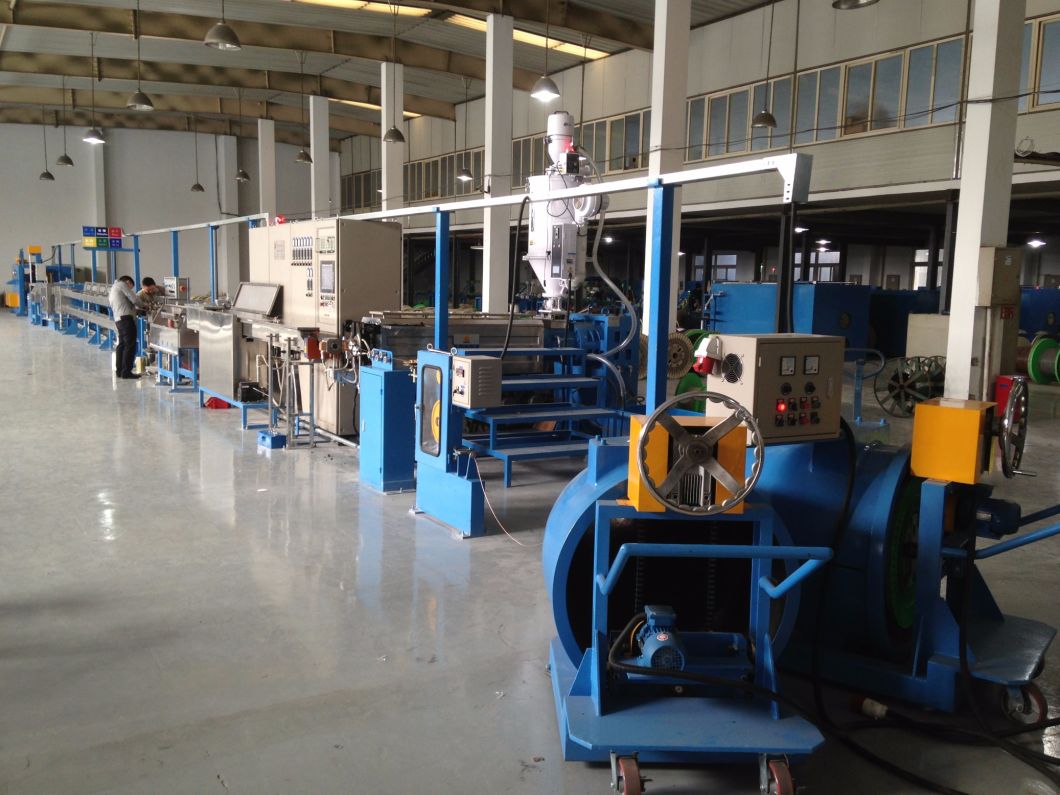

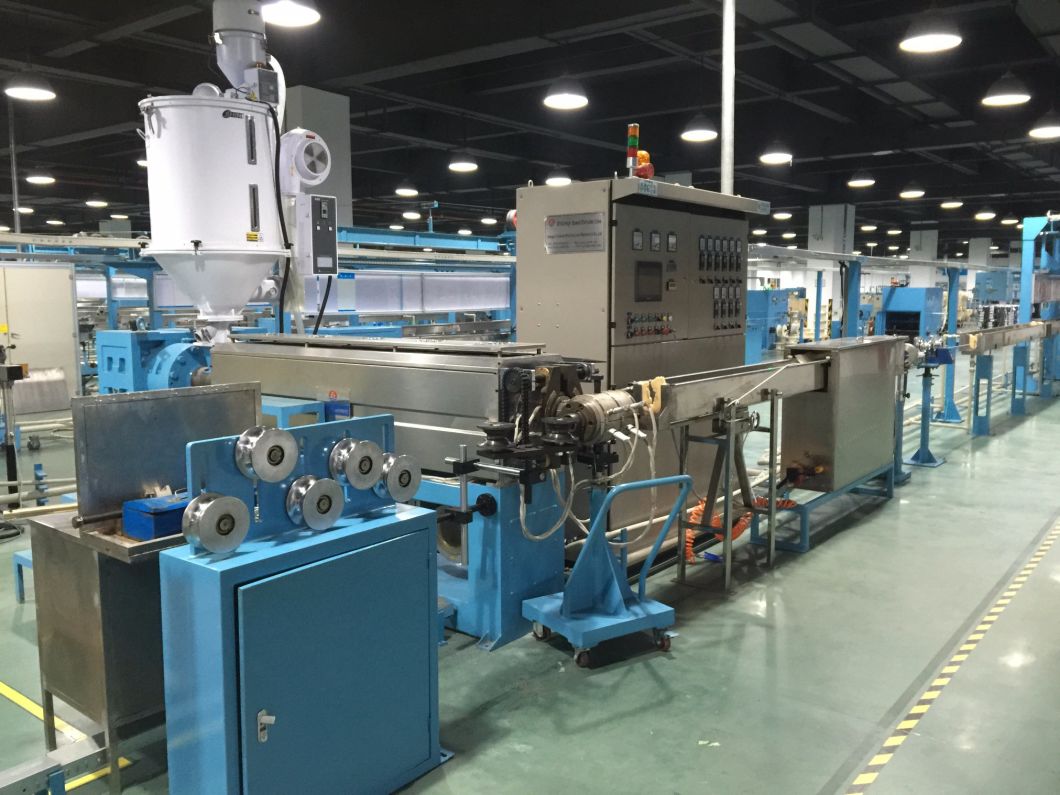

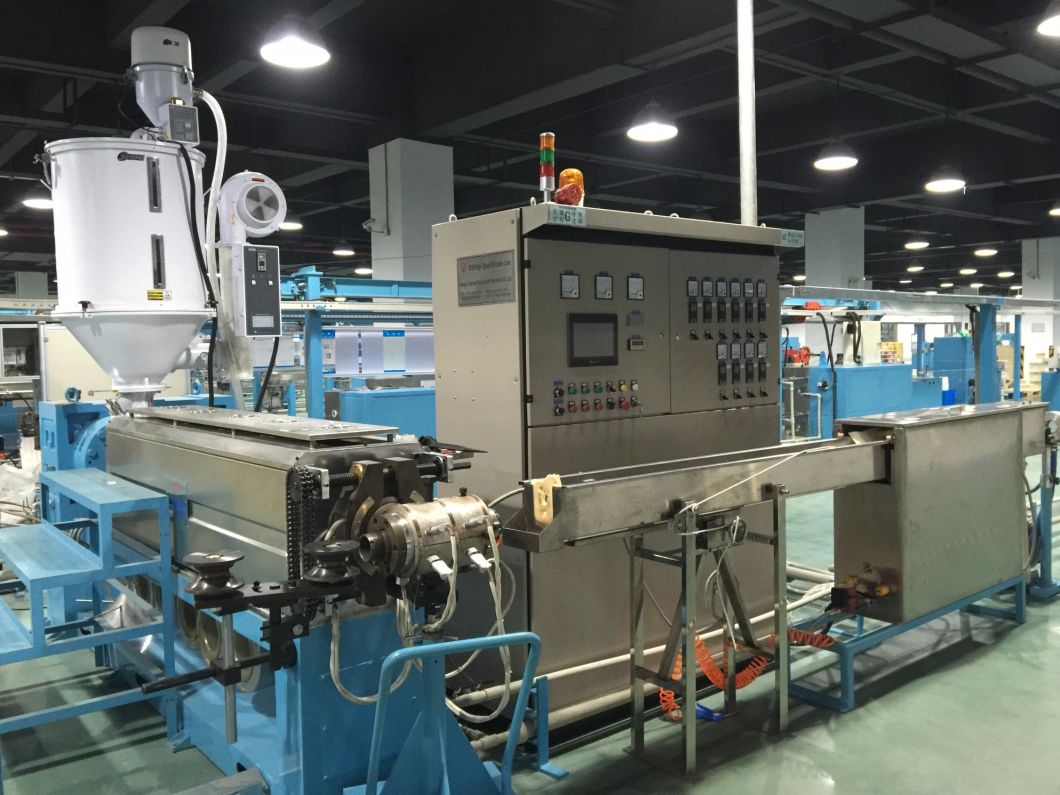

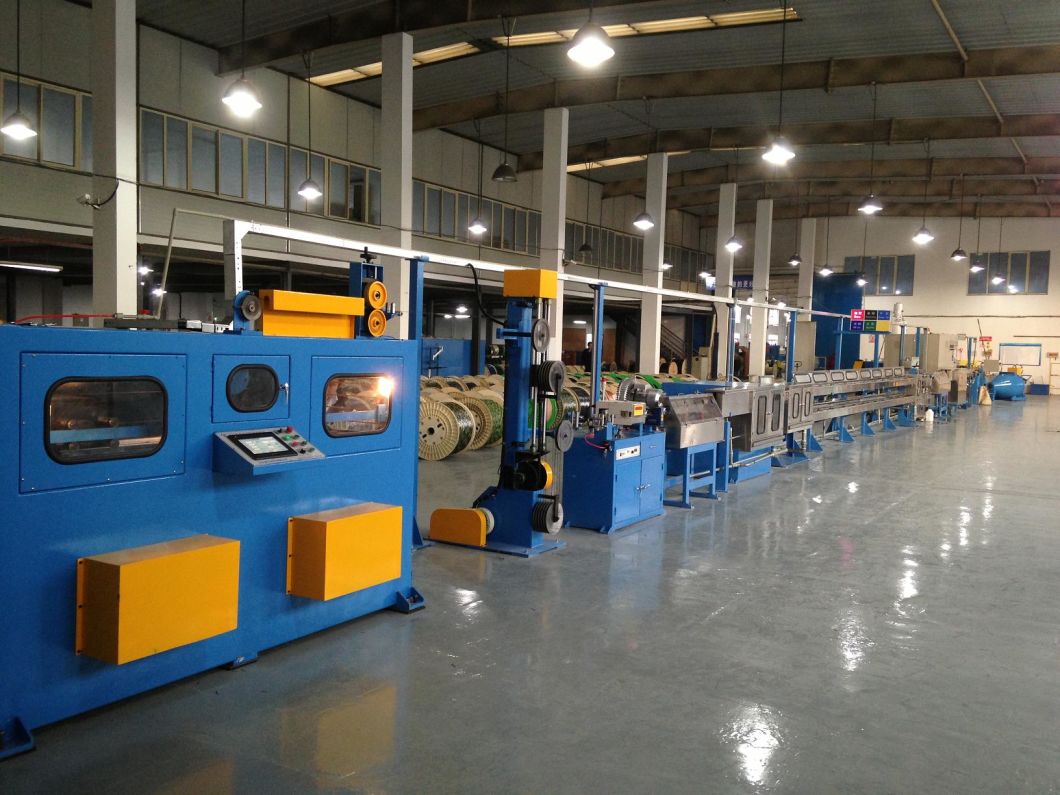

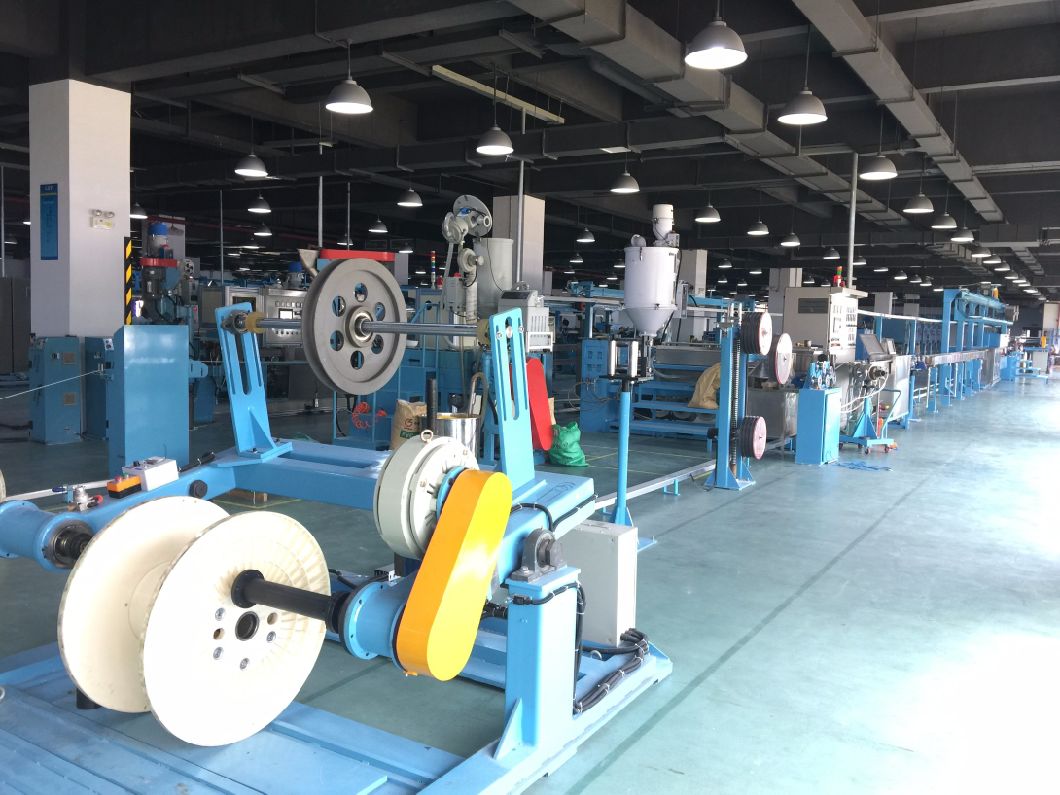

FC-60+35 High Speed Extrusion Line
Application: for PE,PVC , low-smoking non-halogen and other material of wire insulation and sheathing line.
Components :
Mechanical model FC-50+35 FC-60+35 FC-70+35 Pay off type 500-630 active pay off or lut barrel pay off Screw Diameter 50 60 70 Screw L/D Ratio 25:1 25:1 25:1 Revoling speed of screw Max:110RPM Max: 100RPM Max:100RPM Extrusion output 60 100 150 Power for main machine 15KW 18.5KW 22KW Wire diameter 0.6-4.0 0.8-5.0 1.0-6.0 Max accumulator length(m) 200 220 220 Cooling device Double layer model U Monolayer/double layer model U Monolayer/double layer model U Wire speed(m/min) 0-600 0-800 0-800 Capstan power 3.7KW 5.5KW 5.5KW Take up type 1246 automatic coiling machine, the plum blossom falls barrel machine, shaft type
FC-60+35 High Speed Extrusion Line
Application: for PE,PVC , low-smoking non-halogen and other material of wire insulation and sheathing line.
Components :
Mechanical model FC-50+35 FC-60+35 FC-70+35 Pay off type 500-630 active pay off or lut barrel pay off Screw Diameter 50 60 70 Screw L/D Ratio 25:1 25:1 25:1 Revoling speed of screw Max:110RPM Max: 100RPM Max:100RPM Extrusion output 60 100 150 Power for main machine 15KW 18.5KW 22KW Wire diameter 0.6-4.0 0.8-5.0 1.0-6.0 Max accumulator length(m) 200 220 220 Cooling device Double layer model U Monolayer/double layer model U Monolayer/double layer model U Wire speed(m/min) 0-600 0-800 0-800 Capstan power 3.7KW 5.5KW 5.5KW Take up type 1246 automatic coiling machine, the plum blossom falls barrel machine, shaft type
