Copper Conductor Electric Cable Wire Winding Twisting Bunching Twisting Extrusion Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Electric

  • New

  • ISO, CE

  • 12 Months

  • Automatic

  • >1,000,000 Shots

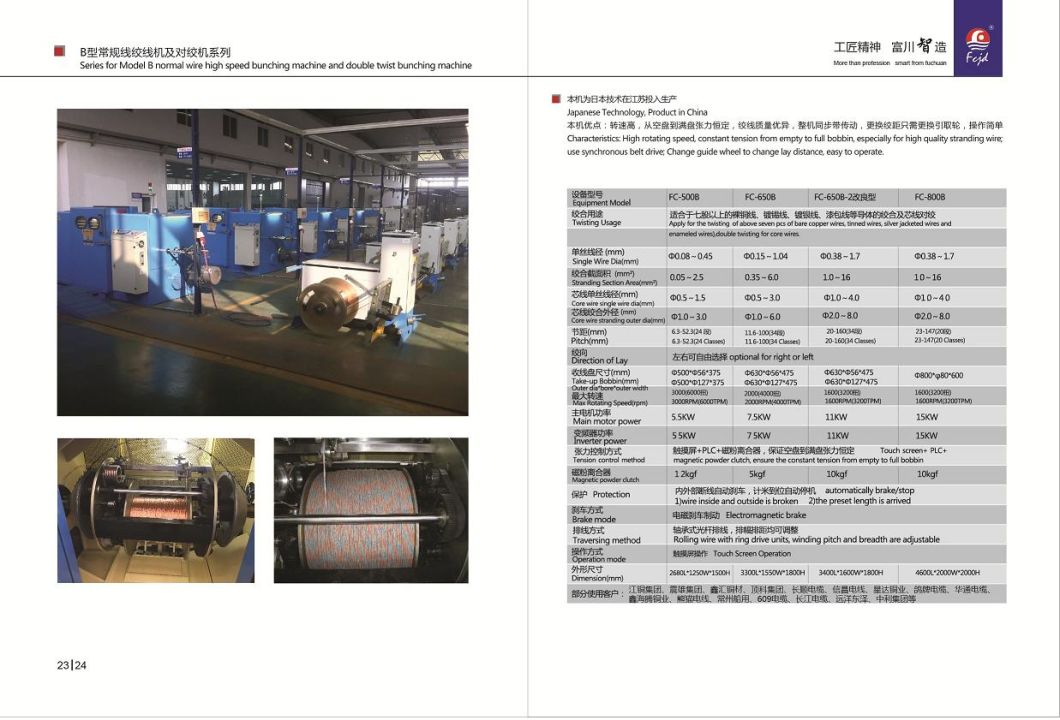

Main performance parameters of FC-500B automatic high speed bunching machine (replace of the capstan wheel to change the lay length).
  1. Usage: It is applied to the stranding of bare twisted wire, tinned, copper covered aluminum, lacquer wire and alloy wire. 1+6 may twist instead of bunching.
2.Diameter of single copper wire: φ0.08~φ0.45mm
3.Outer diameter of wire: φ0.24~φ2.1mm;
4.Cross section area: φ0.05~φ2.5mm2
5.Size of take up spool: φ500mm×375mm×φ56mm(according to client's drawings to make).
6. Maximum rotating speed: 2600RPM
7.Type of traverse: φ20mm rolling ring traverse, winding pitch and breadth are adjustable.
8. Standard lay length: 24 section 6.3~52.3mm (enclose list of standard lay length).
9. Main motor: 5.5KW AC motor +frequency converter
10. Weight of copper load: about 200kg
11. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate.
12. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter.
13. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension constant tension.
14. Drive bearing: it is adopted imported Japan bearing.
15. Synchronization strap: it is adopted imported American product.
16. Spool from top to bottom: it is adopted manual pump hydraulic landing.
17. Way of spindle lubrication: butter lubrication.
18. Index of noise: about 80dB
19.Dimension: (length×breadth×height): 2680×1250×1500mm
20. Weight: 3500Kg
21. Coating:Ral5015 sky blue (may according to customer's requirements).
