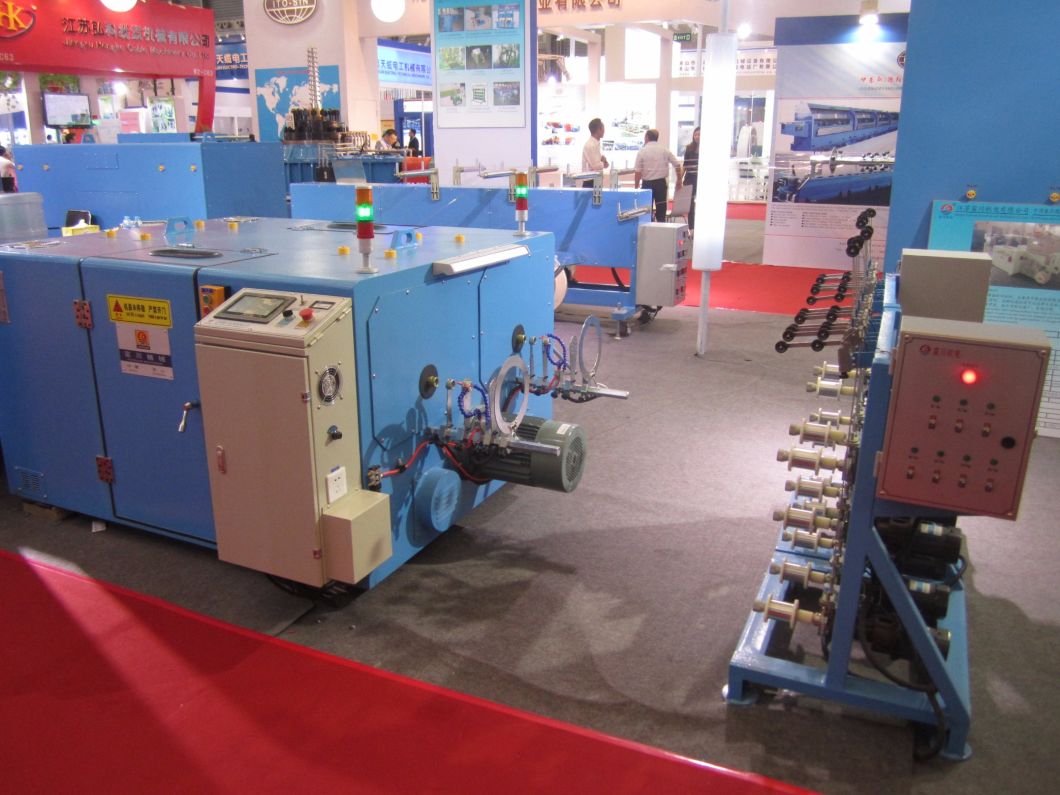

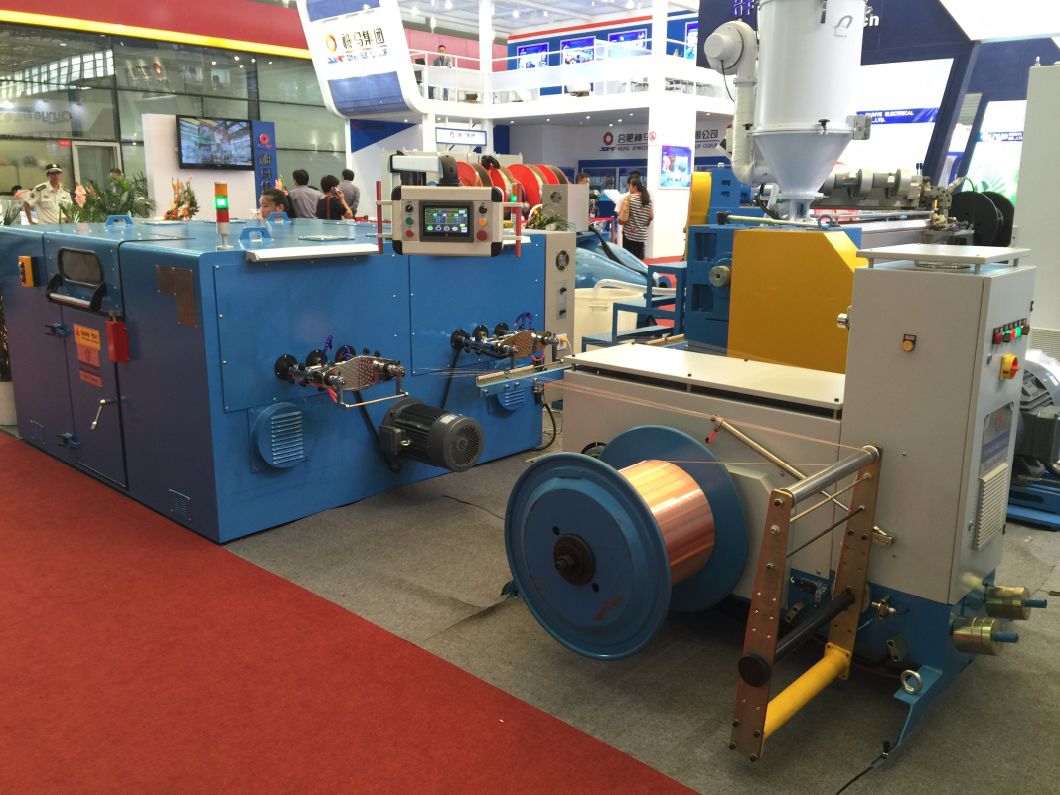

Copper Cable Wire Double Twisting Bunching Stranding Buncher Twister Extrusion Machine
-
Pneumatic
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
Double Twisting
1. Merits:

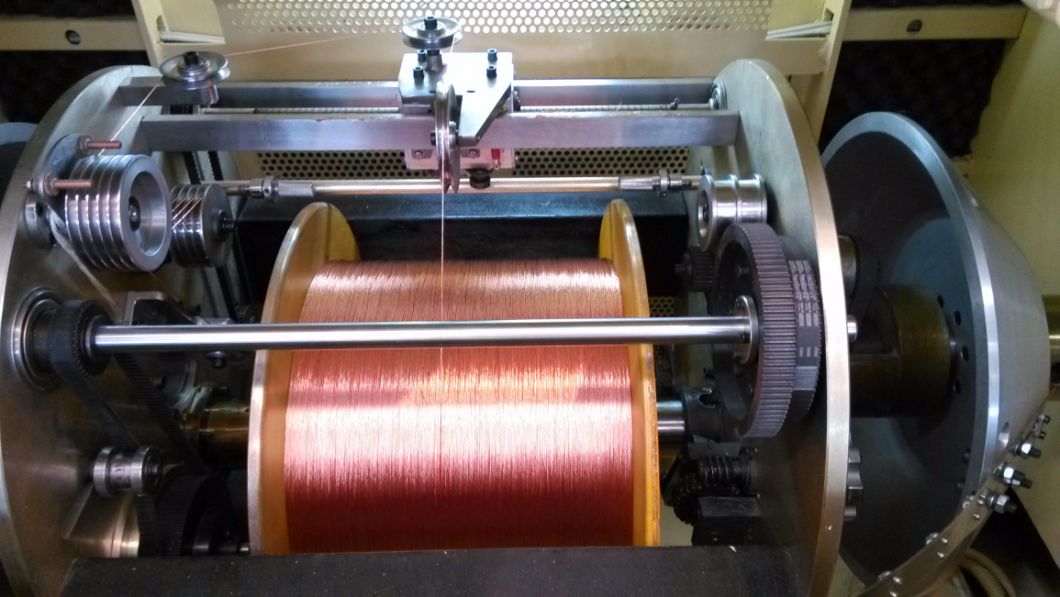

With high rotation speed, with the main shaft counts the meters, the same machine twist the types of the same line, and the tolerance is only 0.0001%. With constant tension from empty bobbin to full bobbin, with superior quality for twist wire, it can realize bunching instead of twisting to match up FC-100 active back-twist pay-off machine. And meet requirements of customer to twist wire of small crossection area. The machine is driven by synchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate.
2. Apllication:
It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above 7 PCS of bare copper wires, tinned wires, silver jacketed wires and enamelled wires).
3. Tech. Parameter:
For more details, please contact me.Equipment models FC-250D FC-300D FC-500D FC-650D Twisting usage It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above 7pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires)to twist. Single wire dia(mm) Φ0.03~0.18 Φ0.05~0.28 Φ0.08~0.45 Φ0.15~1.04 Stranding section area(mm²) 0.0049~0.30 0.0137~0.45 0.05~2.0 0.35~6.0 Pitch(mm) 0.8-10.8(24sections) 1.6-21.6(24sections) 6.3~52.3(24sections) 11.6-100(34sections) Direction of lay Optional for right or left Take up bobbin(mm) Φ250*Φ30*180 Φ300*Φ30*160 Φ500*Φ56*375
Φ500*Φ127*375Φ630*Φ56*475
Φ630*Φ127*475Max speed(rpm) 3500(7000twist) 3000(6000twist) 3000(6000twist) 2000(4000twist) Power 3.7KW 5.5KW 7.5KW 11KW Tension control method Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin. Magnetic powder clutch 0.3kgf 0.6kgf 1.2kgf 5kgf Protection Machine will automatically brake when wire inside and outside is broken ,the machine will automatically stop when the preset length is arrived. Traversing method Rolling ring drive units, winding pitch and breadth are adjustable. Dimension(mm) 2400L*1750W*1100H 2400L*1750W*1100H 2800L*2800W*1500H 3500L*3650W*1800H
