China Fuchuan Best Quality Double Twisting Stranding Bunching Drawing Extrusion Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
300,000-1,000,000 Shots

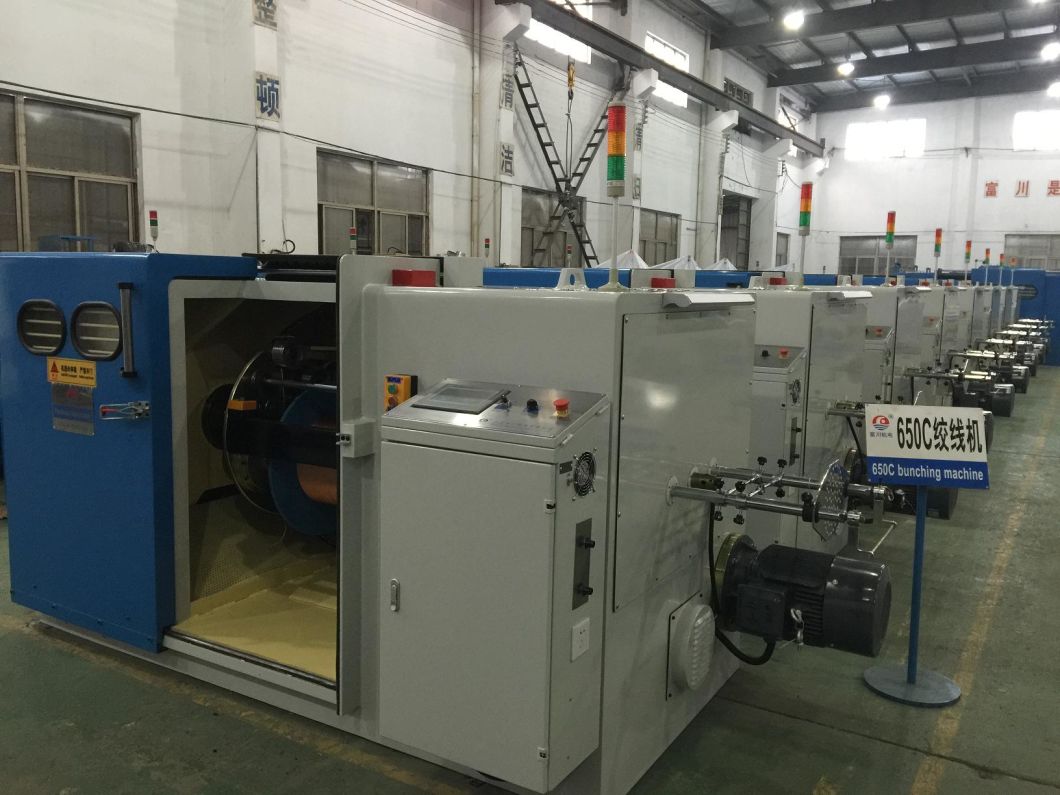

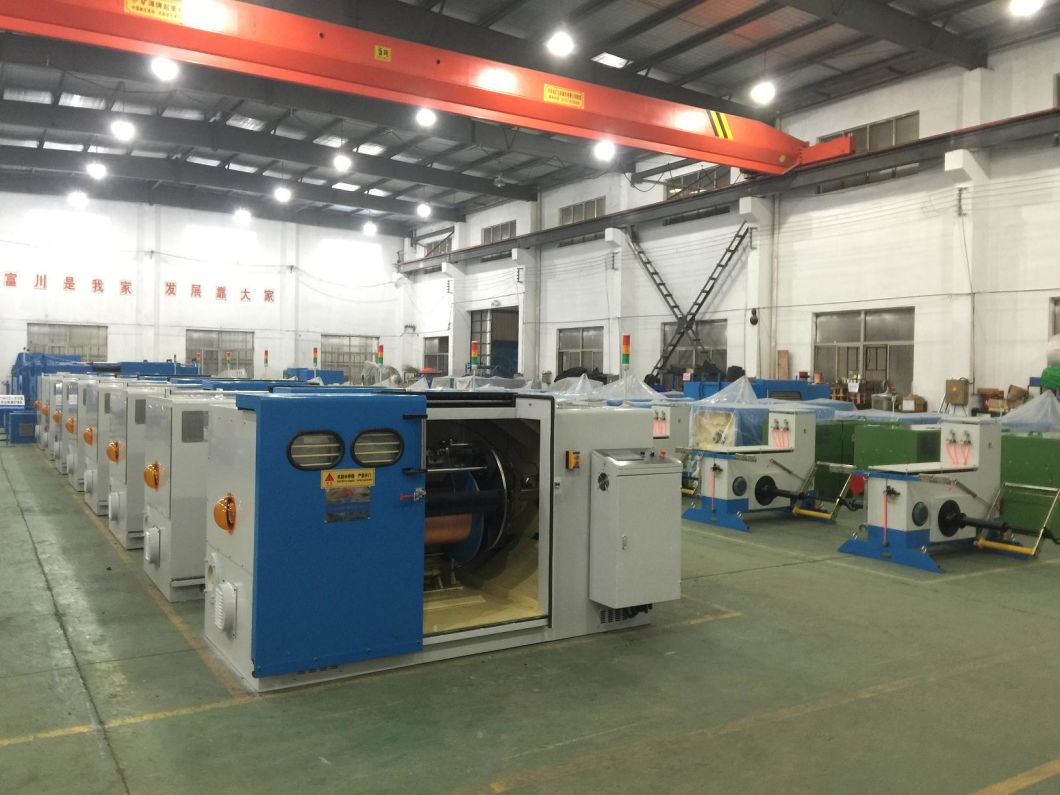

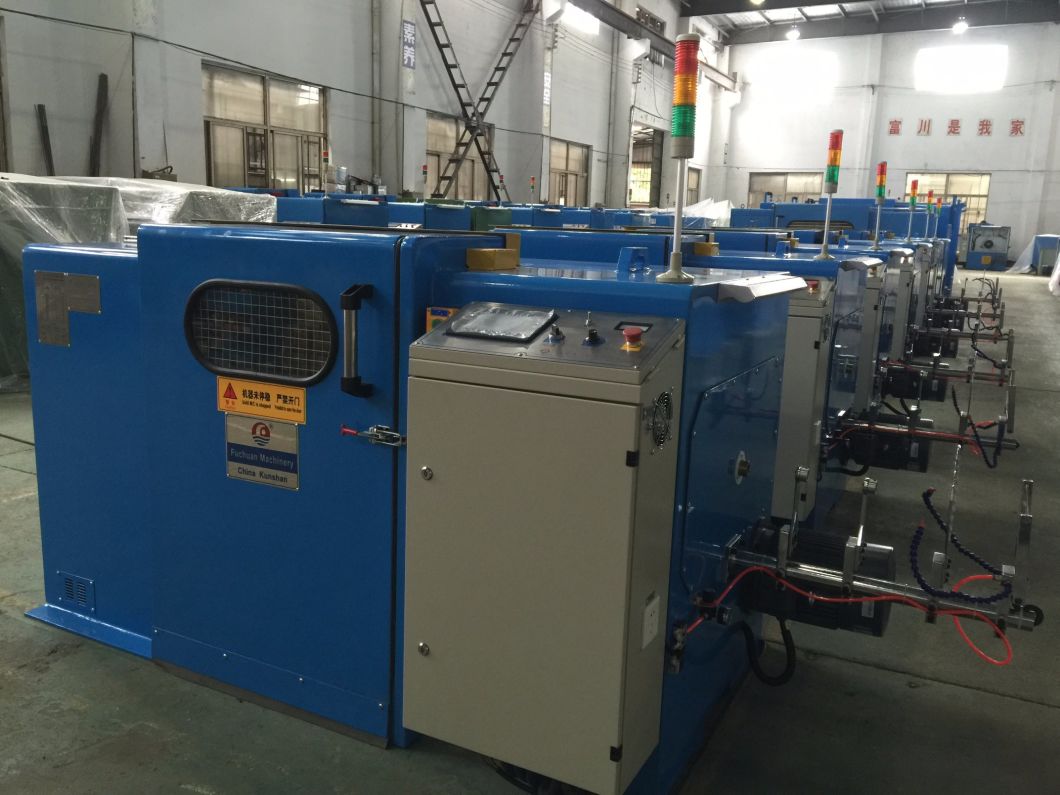

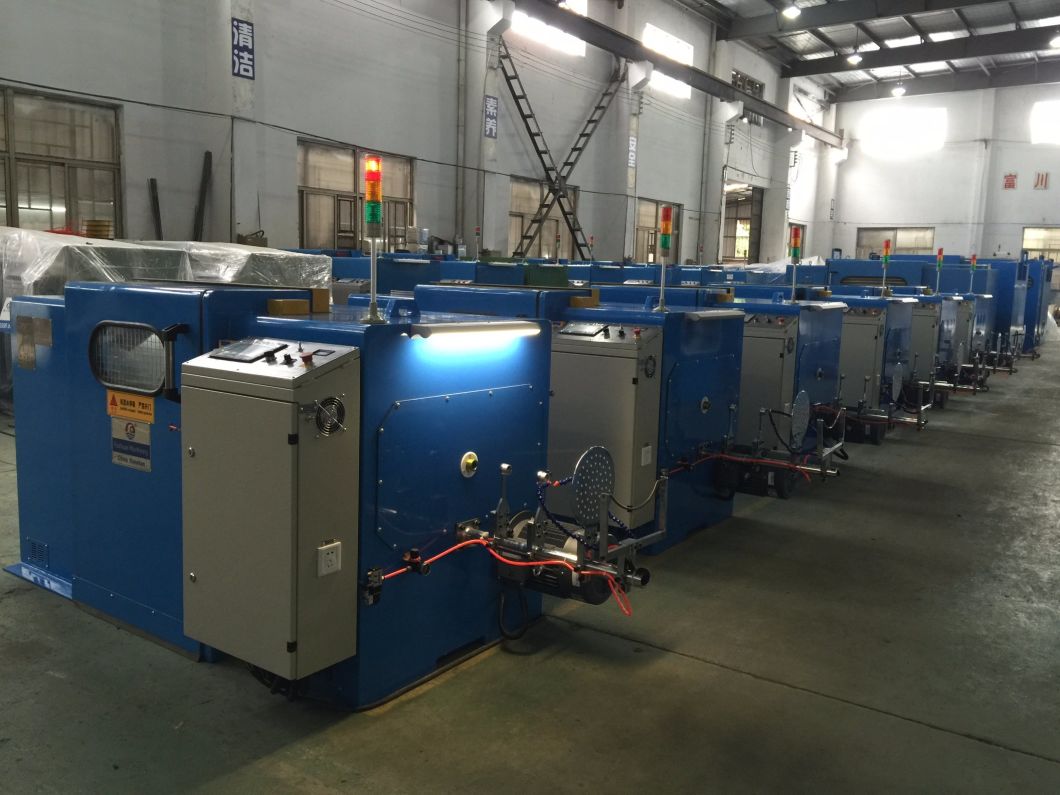

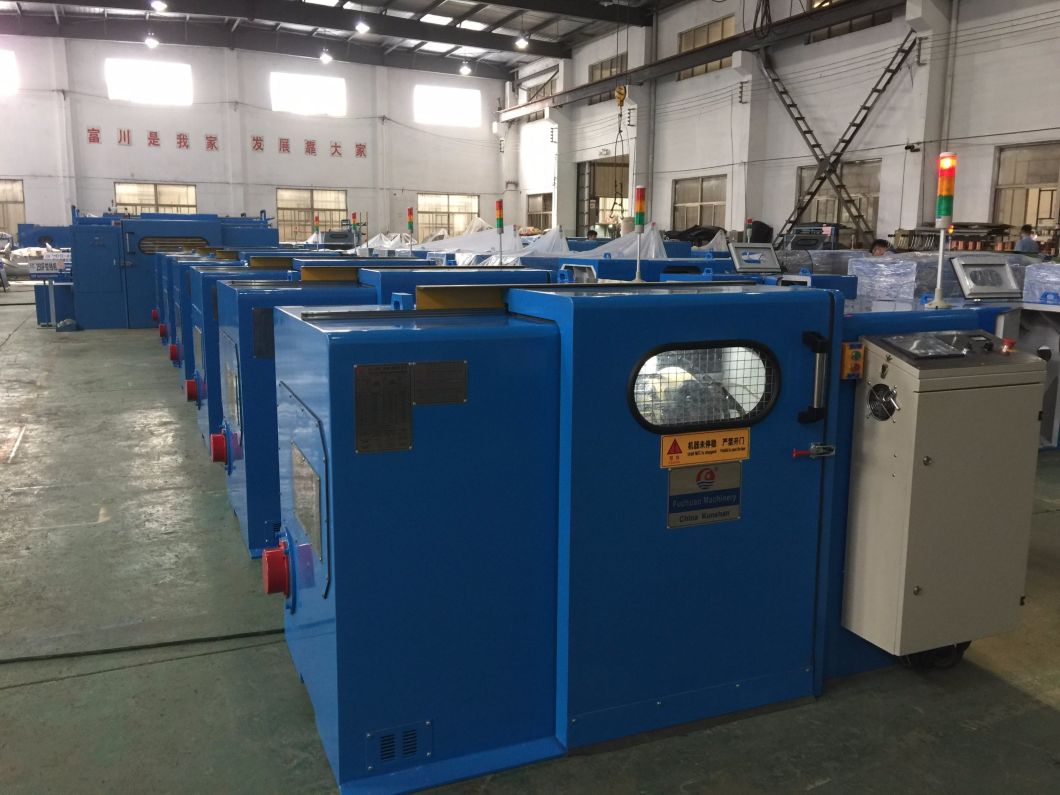

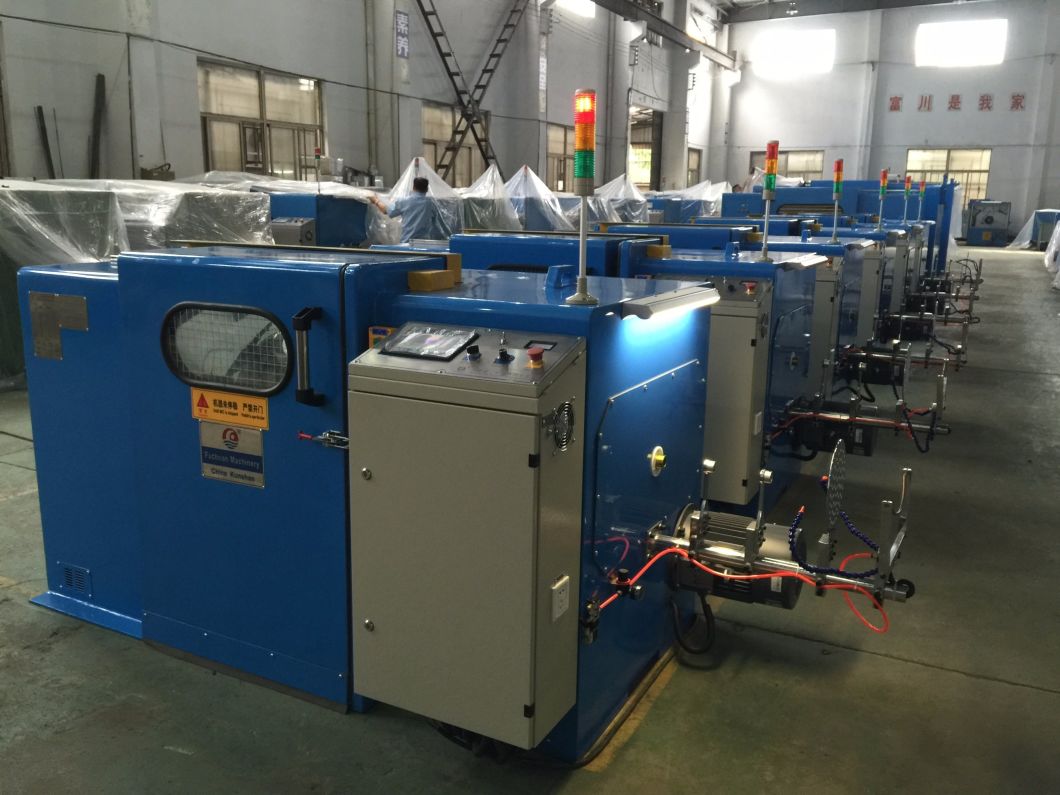

Series for Model C normal wire high speed bunching machine and double twist bunching machine
The technology of this machine is brought from Japan and put in production in JiangSu
Merits: With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.
Equipment models FC-650C-2 Twisting usage It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires. Single wire dia(mm) φ0.12-φ0.52 Stranding section area (mm²) 0.30-4.0 Core wire single wire dia φ0.5-φ2.0 Core wire stranding outer dia φ1.0-φ4.0 Pitch(mm) 11.6-100(34zones) Direction of lay Optional for right or left Outer dia*bore*outer width φ630*φ56*475
φ630*φ127*475Max rotating speed 2400(4800twist) Main motor power 11KW Inverter power 11KW Tension control method Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin Magnetic powder clutch 2.5kgf Protection Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. Brake mode Electromagnetic brake Traversing method Rolling ring drive units, winding pitch and breadth are adjustable Operation mode Touch screen operation Dimension(mm) 3300L*1550w*1800H
