Bare Copper Wire CCA Wire High Speed Bunching Buncher Twister Twisting Extrusion Extruder Coiler Coiling Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Electric

  • New

  • ISO, CE

  • 12 Months

  • Automatic

  • 300,000-1,000,000 Shots

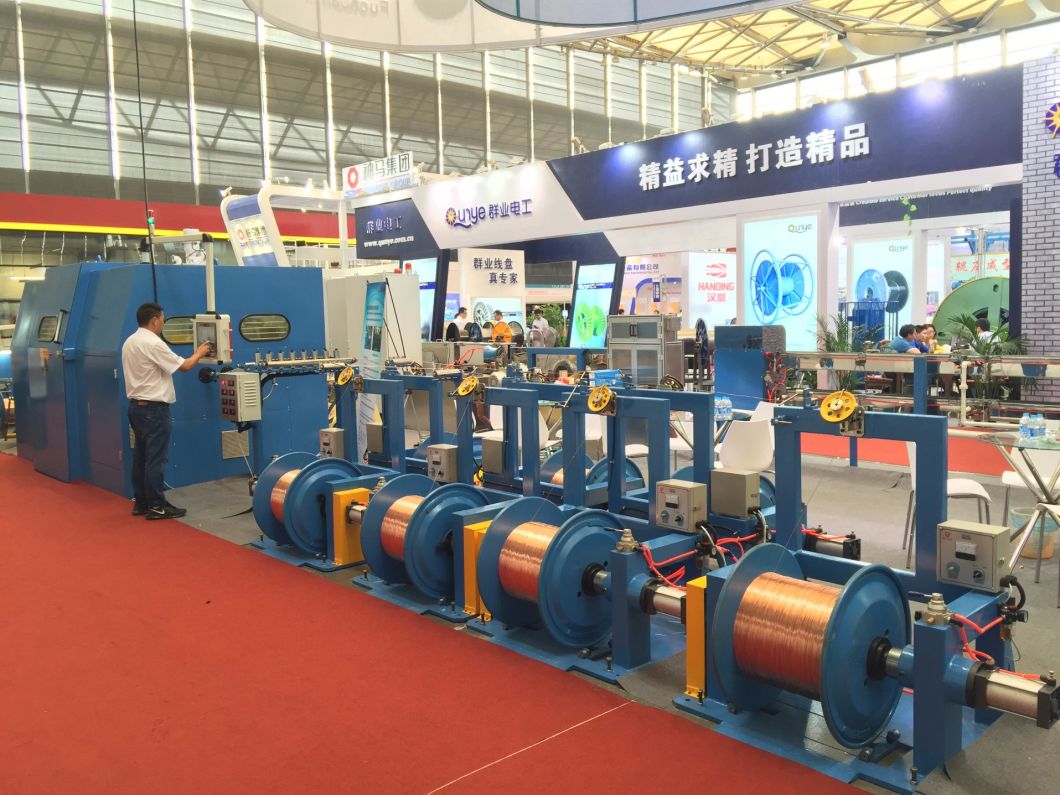

Bare Copper Wire CCA Wire High Speed Bunching Buncher Twister Twisting Extrusion Extruder Coiler Coiling Machine

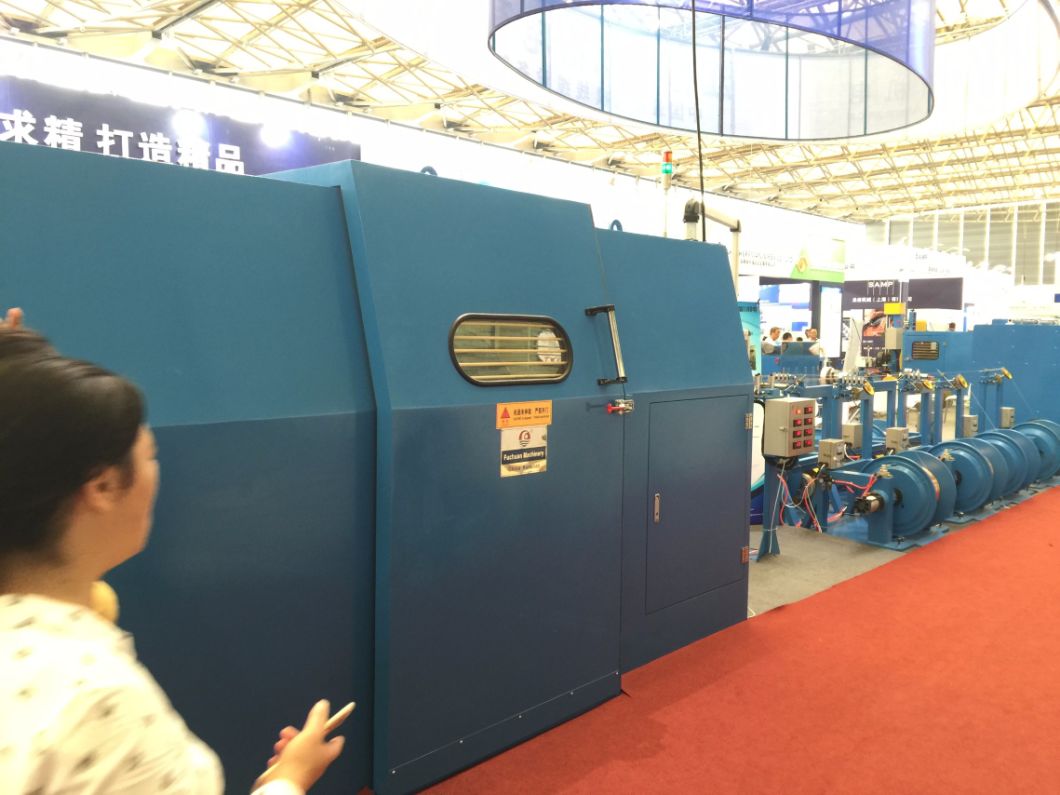

Bare Copper Wire CCA Wire High Speed Bunching Buncher Twister Twisting Extrusion Extruder Coiler Coiling Machine

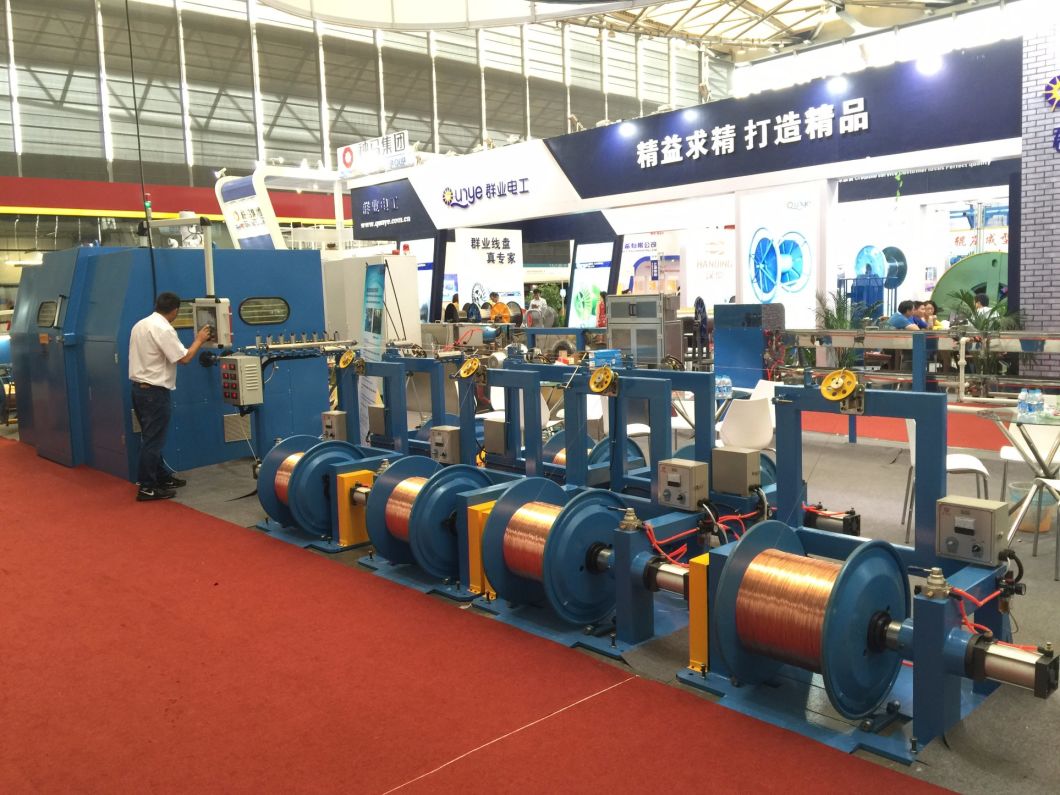

Bare Copper Wire CCA Wire High Speed Bunching Buncher Twister Twisting Extrusion Extruder Coiler Coiling Machine

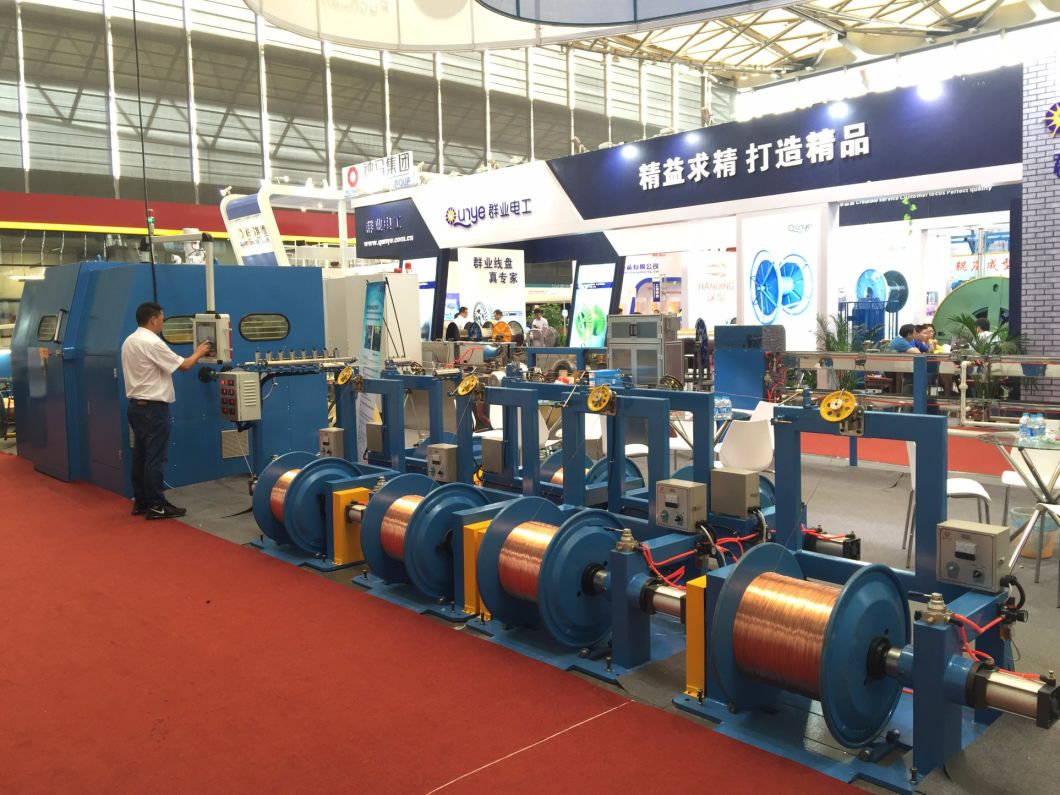

Bare Copper Wire CCA Wire High Speed Bunching Buncher Twister Twisting Extrusion Extruder Coiler Coiling Machine

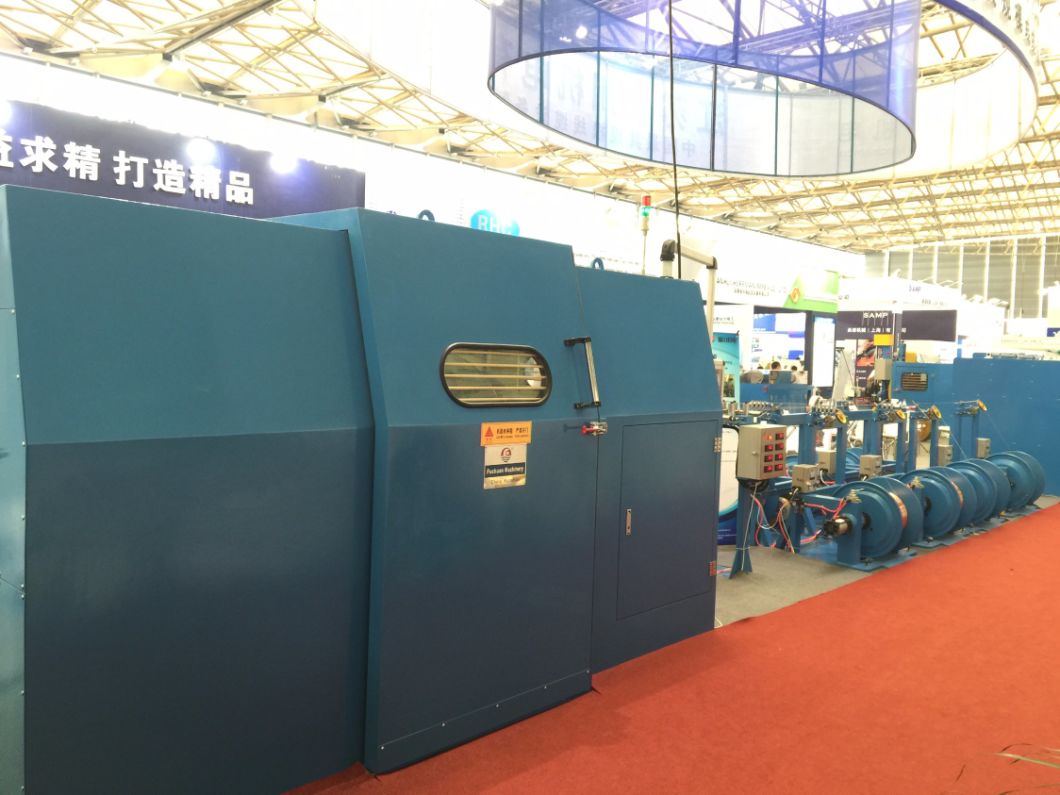

Bare Copper Wire CCA Wire High Speed Bunching Buncher Twister Twisting Extrusion Extruder Coiler Coiling Machine

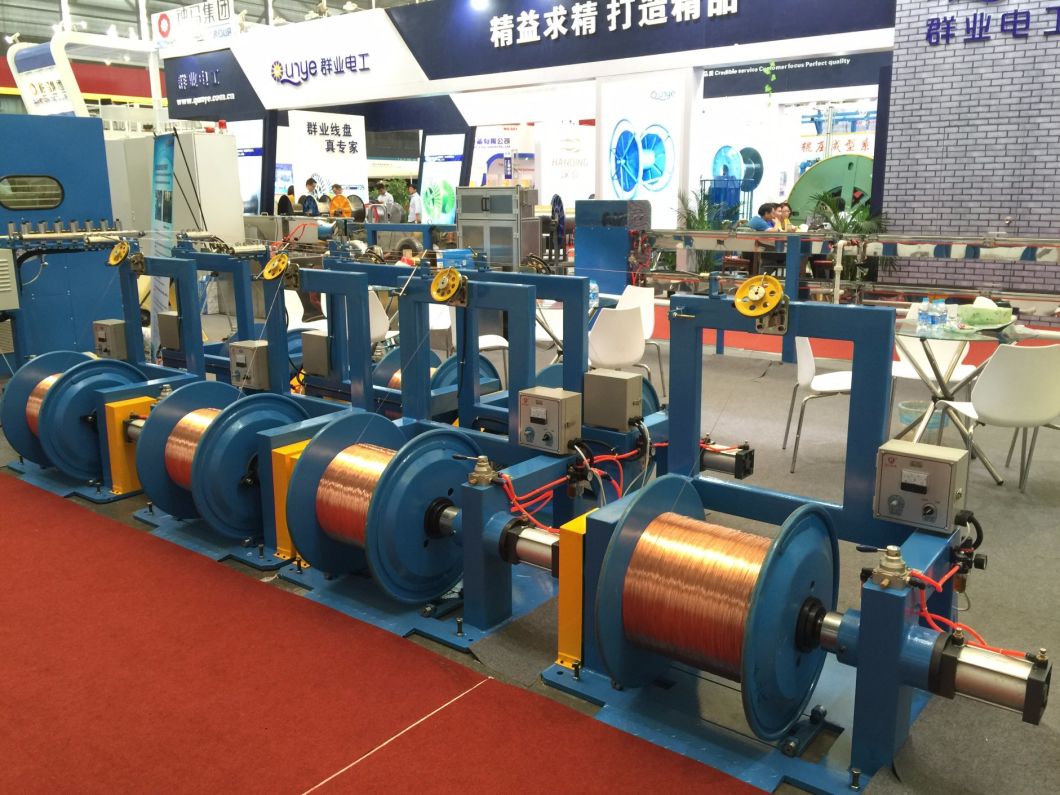

Bare Copper Wire CCA Wire High Speed Bunching Buncher Twister Twisting Extrusion Extruder Coiler Coiling Machine

Series for Model B large wire high speed bunching machine

1. Characters:
With high rotation speed, the main shaft counts the meters, the same machine twist with the same type to line, and the tolerance is only 0.0001%, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate. 1 + 6 soft copper conductor winding complex can be substituted for the tube ground machine, linear velocity is speed tube with two times, the ground machine core wires into power cable can instead of single twist into a cable machine, linear velocity is single twist with speed into a cable machine twice.

2. Application:
It is applied to the twisting of above 7 PCS of bare copper wires, tinned wires, silver jacketed wires and enamelled wire and double twisting for core wires.

3. Technical parameters:

For more details, please contact me.
The technology of this machine is brought from Japan and put in production in Jiangsu.
Series for Model-B big wire high speed bunching machine
Merits: It is the latest developed machine. this machine replace the traditional Model 400 tube bunching machine With the high productivity( it is 4.5times than tube machine for the 1+6 conductors normal bunching ),low power, small floor place, low noise and other merits.
Model FC-1000B FC-1250B FC-1600B
Usage It is applied to the twisting of above 7 pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires and double twisting for core wires.
Single Wire Dia(mm) Φ0.3~1.7 Φ0.5~2.14 Φ0.5~2.52
Stranding Section Area(mm²) 6.0~35.0 10.0~50.0 16.0~95.0
Core Wire Single Wire Dia(mm) Φ2.0~5.0 Φ3.0~8.0 Φ3.0~10
Core Wire Stranding Outer Dia(mm) Φ4.0~10.0 Φ6.0~16.0 Φ8.0~20.0
Pitch(mm) 35-200(12sections) 50-250(12sections) 80-350(12sections)
Direction of Lay optional for right or left
Take-up Bobbin(mm) Φ1000*Φ80*750 Φ1250*Φ80*950 Φ1600*Φ80*1180
Max Rotating Speed(rpm) 1000(2000twist) 800(1600twist) 600(1200twist)
Main Motor Power 18.5KW 22KW 30KW

Inverter Power
18.5KW 22KW 30KW
Tension Control Method Touch screen+PLC+magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin.
Magnetic Powder Clutch 20kgf 20kgf 40kgf
Protection Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived.
Brake Mode Electromagnetic Brake
Traversing Method Rolling ring drive units, winding pitch and breadth are adjustable.
Operation Mode Touch Screen Operation
Dimension(mm) 4000L*2200W*2100H 4500L*2600W*2500H 5000L*3000W*3000H
