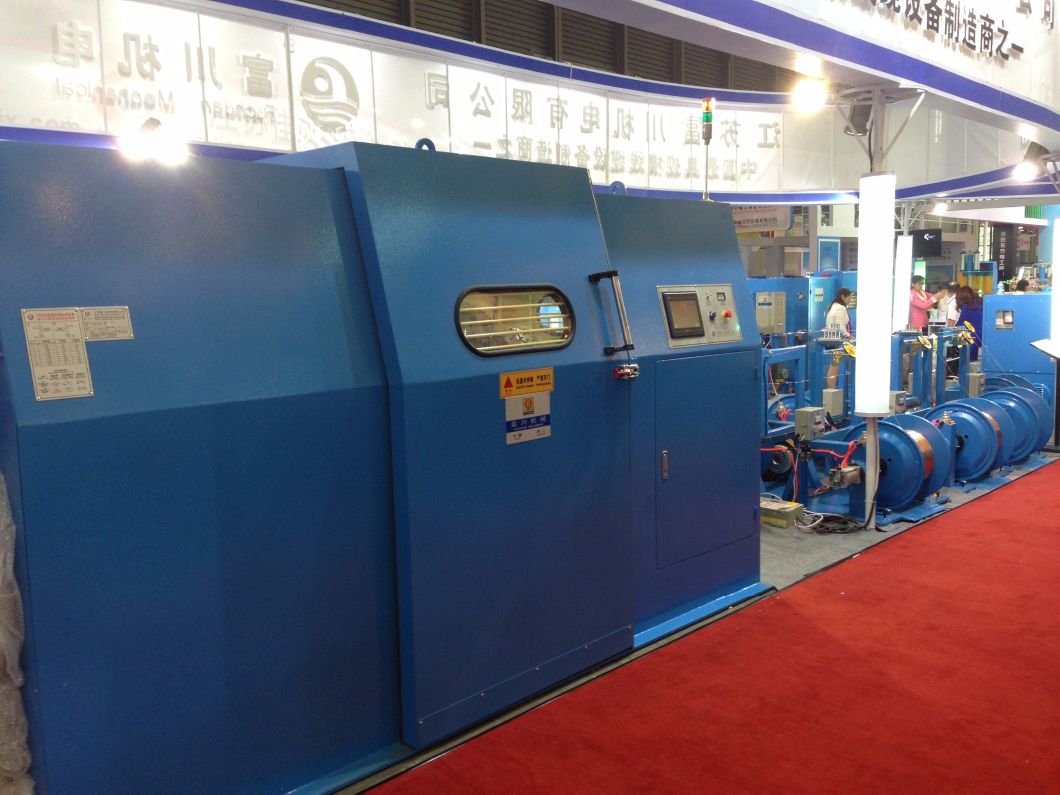

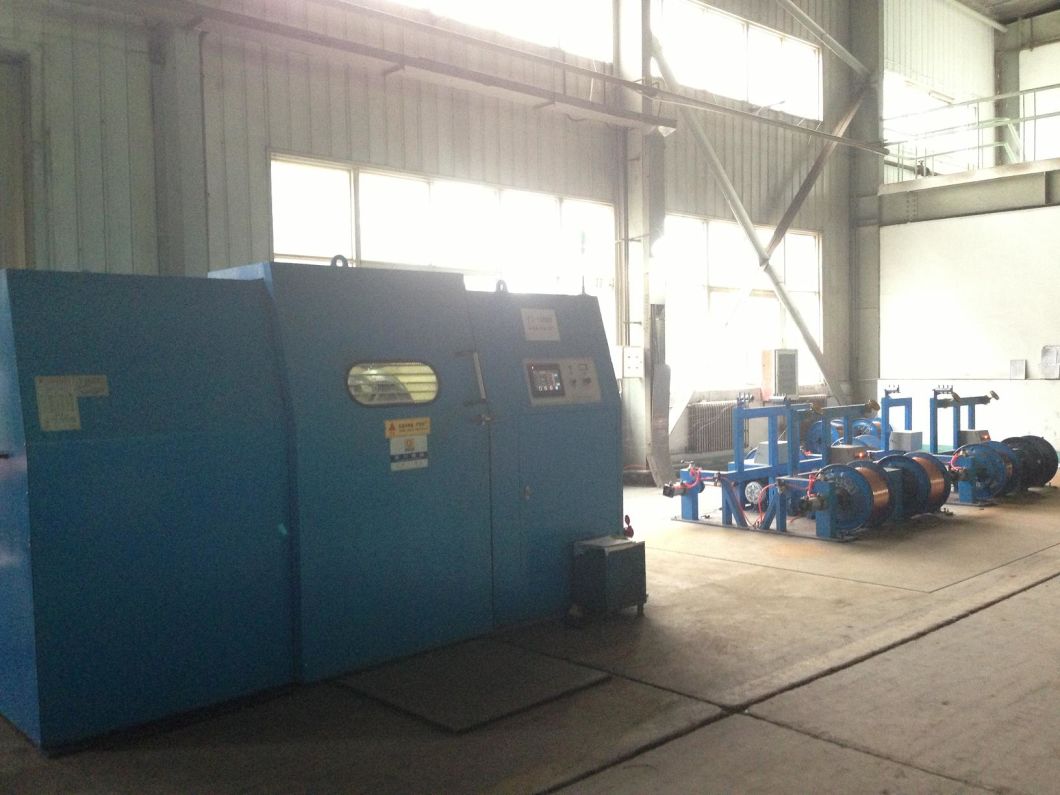

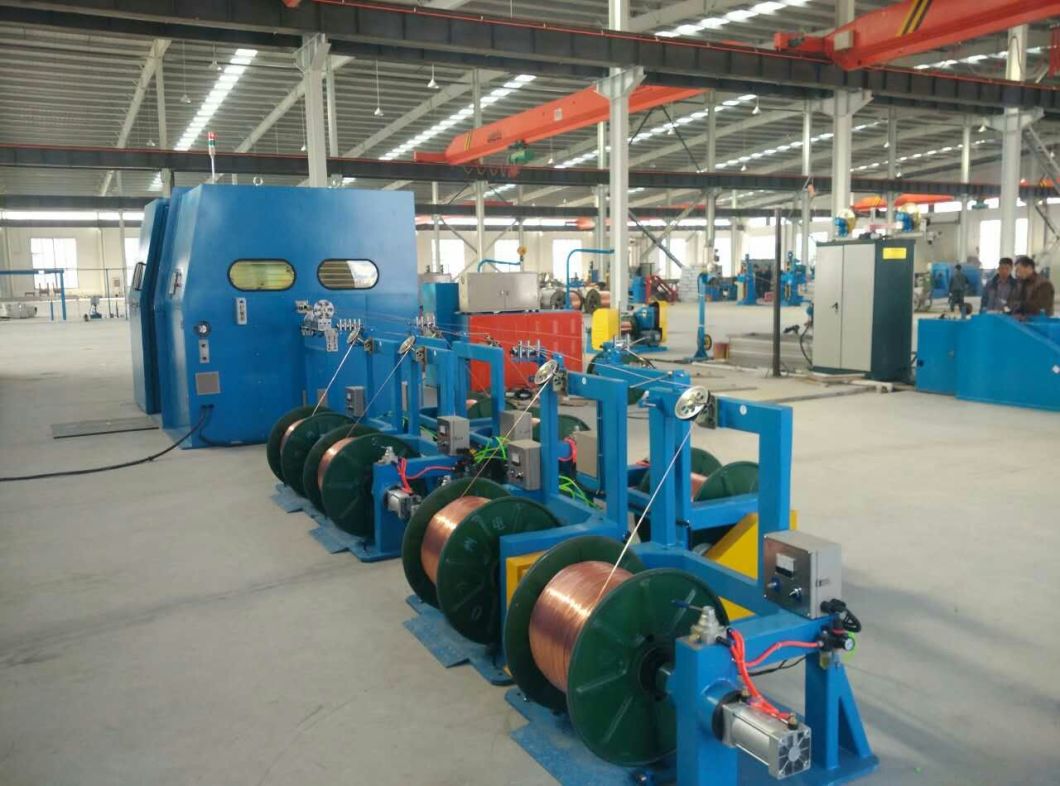

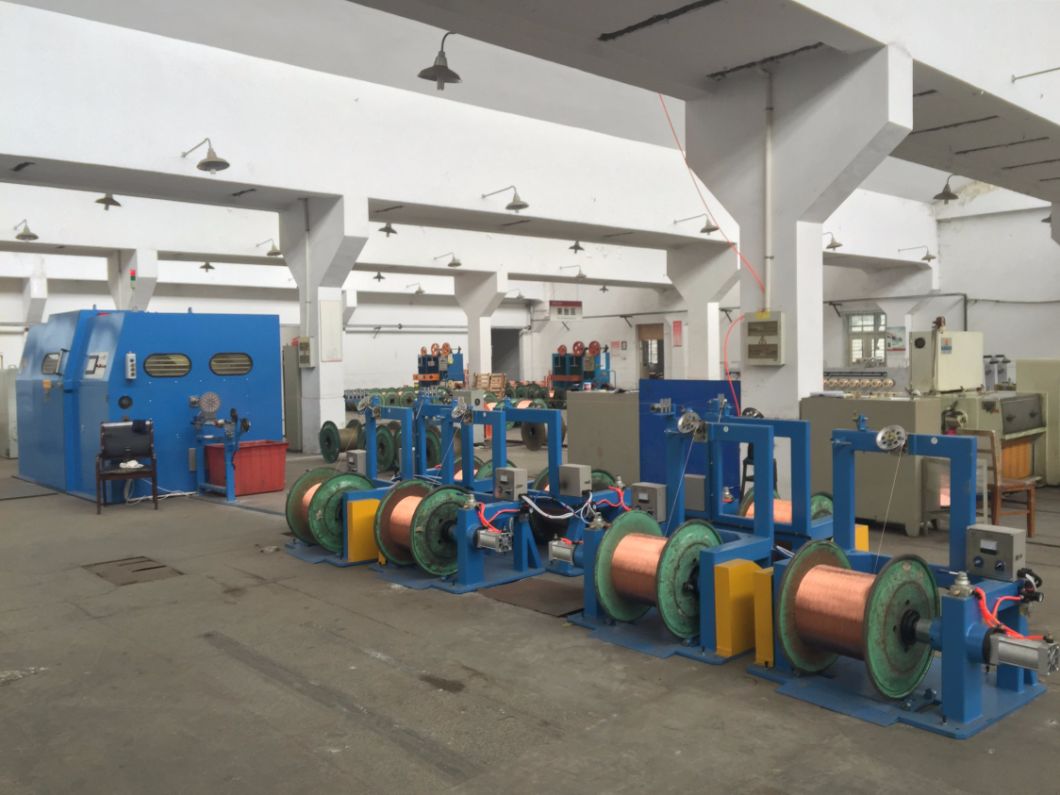

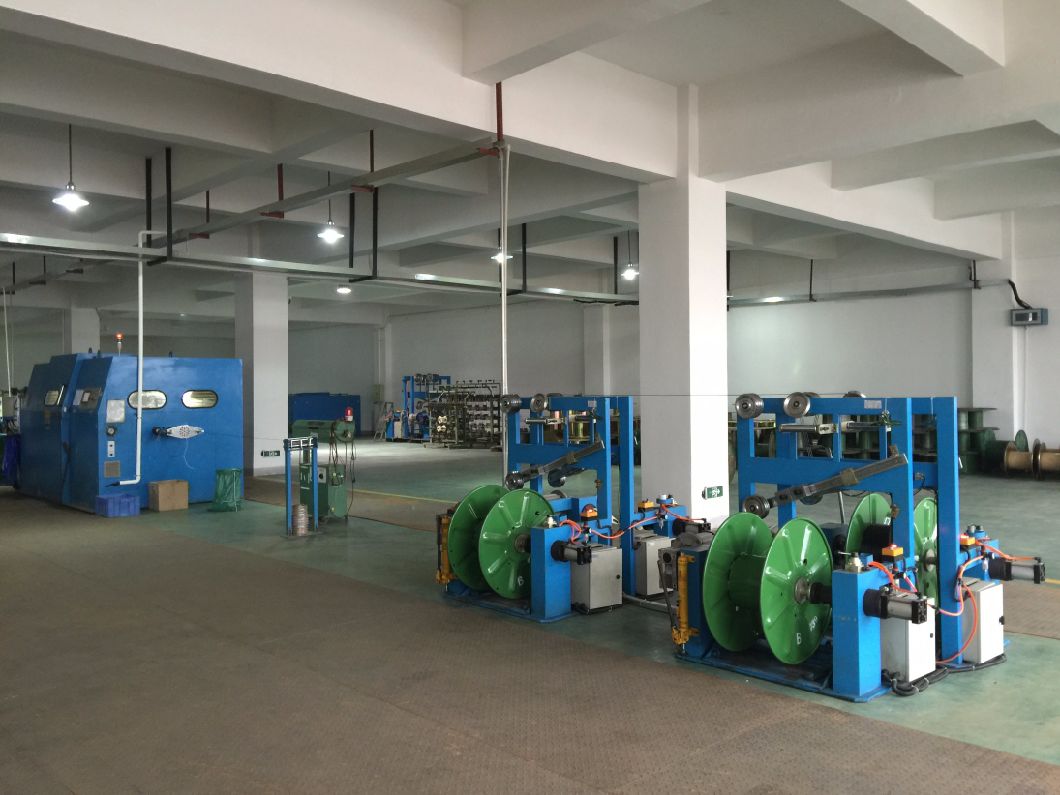

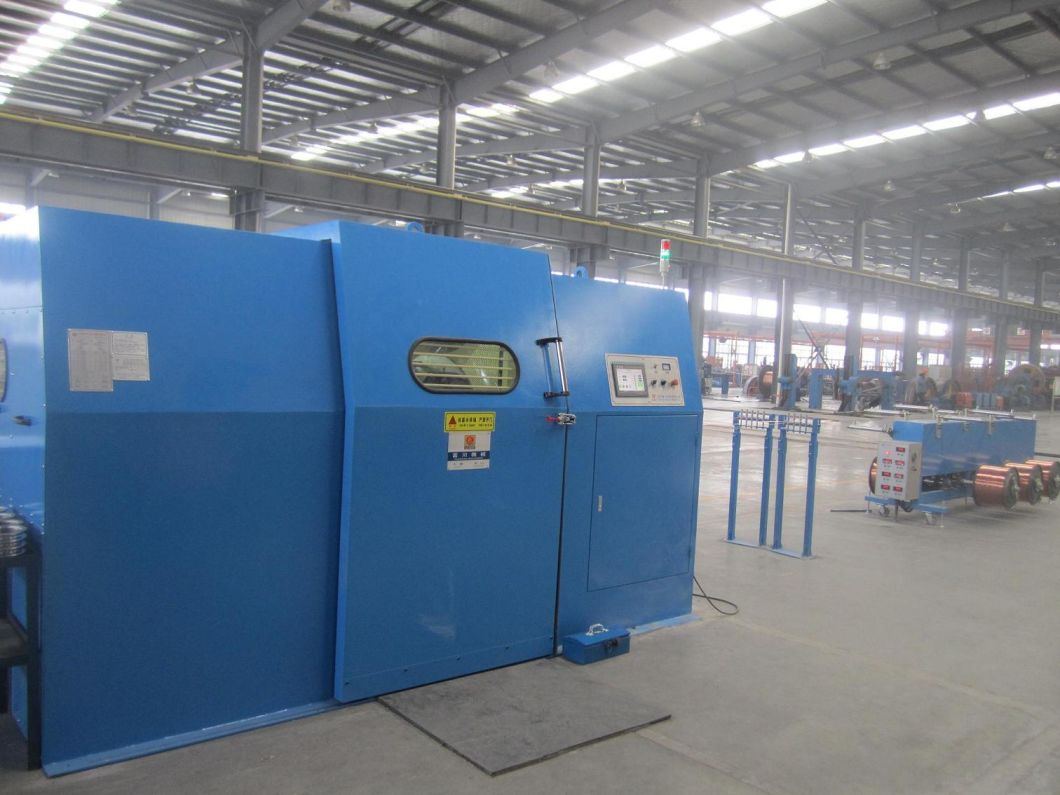

Bare Copper Wire 0.03-1.52mm Tinned Wire, Core Cable Wire Twisting Stranding Bunching Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
300,000-1,000,000 Shots
The technology of this machine is brought from Japan and put in production in Jiangsu.Series for Model-B big wire high speed bunching machineMerits: It is the latest developed machine. this machine replace the traditional Model 400 tube bunching machine With the high productivity( it is 4.5times than tube machine for the 1+6 conductors normal bunching ),low power, small floor place, low noise and other merits.Equipment model FC-1000B FC-1250B FC-1600B Twisting usage Apply for the twisting of above seven pcs of bare copper wires,tinned wires,alloy aluminium wires etc.BVR and RVV),double twisting for core wires. Single wire diaφ(mm) 0.3-2.14 0.5-2.52 0.5-2.52 Stranding section area 6.0-25 10-35 10.0-50 Core wire single wire diaφ(mm) 2.0-4.0 3.0-6.0 3.0-6.0 Core wire stranding outer dia(mm) 4.0-10.0 6.0-12.0 6.0-15.0 Pitch(mm) 35-149 41-155 60-260 Direction of lay Optional for right or left Take up bobbin(mm) Dia1000 Dia1250 Dia1600 Max rotating speed 1000rpm(2000TPM) 800rpm(1600TPM) 600rpm(1200TPM) Main motor power 18.5kw 22kw 30kw Inverter power 18.5kw 22kw 30kw Tension control method Magnetic powder clutch+PLC+touchscreen,ensure the constant tension from empty to full bobbin Magnetic powder clutch 20kgf 20kgf 40kgf Protection 1.wire inside and outside is broken,automatically brake/stop
2.The preset length is arrivedBrake mode Electromagnetic brake Traversing method Rolling wire with ring drive units,winding pitch and breadth are adjustable Operation mode Touchscreen operation Dimension(mm) 4000L*2200W*2100H 4500L*2600W*2500H 5000L*3000W*3000H
