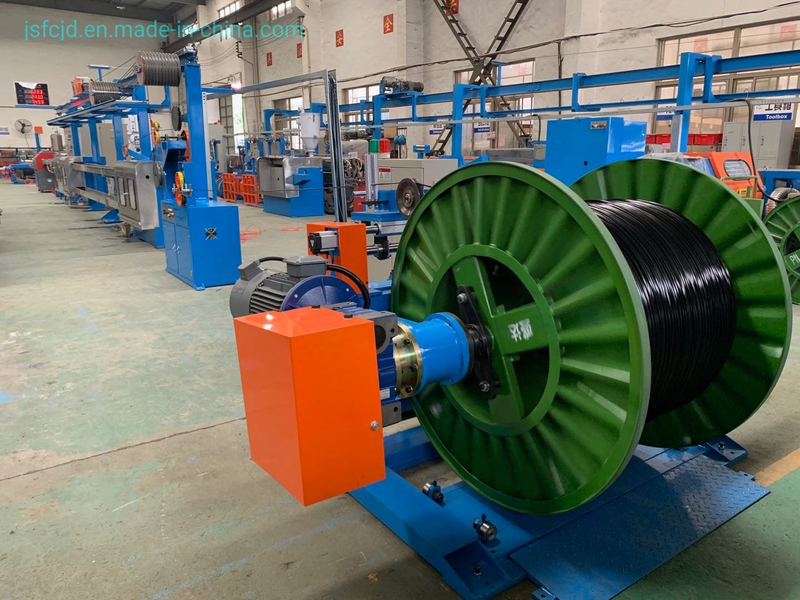

BV. Bvr Electrical Core Wire High Speed Extruder Extrusion Winding Cable Making Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • 12months

  • Profile Extruder

  • PVC, PP, PE, Sr-PVC

  • Extrusion Molding Machine

  • Multiple Feed

  • Separate Type Extruder

It's applied to extruding FEP(F-46). PFA and ETFE(F-40) and other products, which can bear high temperature.
1. Core wire diameter: Φ0.2-φ1.02mm
2. Finished wire diameter: Φ0.6-φ1.67mm;
3. Speed of extruding line: Max15-50m/min;
4. Center height of main engine: 1000mm
5. Direction o extruding line: Optional for right
6. Operation mode: Touch screen operation

Tech. Parameter:
1)Power: 11kw AC motor
2)Reducer gear box: Milling gear imported from Italy ZLYJ133-II, the specialized reducer gear box for extrusion
3)Screw: GH113, φ45MM, ratio: 25: 1
4)Screw drum: GH113
5)Screw speed: 10-60r/min
6)Hot dip: 220V voltage, 3 phase screw drum, cast copper heater, each phase 2.2KW; 1 phase clamp, cast copper heater, 1000W.
7)Clamp type: Flange bolt fix way
8)Cooling way: 3 sets screw cooling high voltage centrifugal fan, 60W power, the clamp cooling itself.
9)Total power: 11+3*2.2+1+3*0.06=20KW
10)Dimension: L2000*W1300*H1500mm
11)Vacuum installation
12)Weight: 800KG
13)Spare parts: 1set clamp cast copper heater; 2 bar hot dip; 1 handpiece, and 1 eye die heater.

Please email me if you have other questions.
