650b Automobile Wire, Electrical Power Wire, Copper Wire 0.3-2.5sq mm PLC Pitch Double Twister Buncher Bunching Winding Drawing Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Electric

  • New

  • CCC, ISO, CE

  • 12 Months

  • Automatic

  • >1,000,000 Shots

Low Noise 7 Pcs Alloy Wire Bunching Buncher Machine With Touch Screen Operation
FC-1000B-2 large wire high speed bunching machine and double twist bunching machine buncher machine
Wire bunching stranding machine twisting machine cabling machine wire making machine
China Best Bare Copper wire buncher wire bunching machine
Copper Aluminum Wire cable bunching machine stranding machine buncher
twisting machine wire buncher bunching machine
B type high speed twisting machine and double twist machine
1. Characters:
With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, the machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch, easy to operate.

2. Usage:
It is applied to the twisting of above 7 pcs of bare copper wires, tinned wires, silver jacketed wires and enamelled wires and double twisting for core wires.

3. Parameters:
Equipment model FC-500B FC-650B FC-650B-2 FC-800B
Twisting usage Apply for the twisting of above seven pcs of bare copper wires,tinned wires,silver jacketed wires and enameled wires),double twisting for core wires.
Single wire diaφ(mm) 0.08-0.45 0.15-1.04 0.37-1.7 0.37-1.7
Stranding section area 0.05-2.5 0.35-6.0 1.0-16 1.0-16
Core wire single wire diaφ(mm) 0.5-1.5 0.5-3.0 1.0-4.0 1.0-4.0
Core wire stranding outer dia(mm) 1.0-3.0 1.0-6.0 2.0-8.0 2.0-8.0
Pitch(mm) 6.3-52.3 11.6-100 20-160 23-147
Direction of lay Optional for right or left
Take up bobbin(mm) Dia500 Dia630 Dia630 Dia800
Max rotating speed 3000rpm(6000TPM) 2000rpm(4000TPM) 1600rpm(3200TPM) 1600rpm(3200TPM)
Main motor power 5.5kw 7.5kw 11kw 15kw
Inverter power 5.5kw 7.5kw 11kw 15kw
Tension control method Magnetic powder clutch+PLC+touchscreen,ensure the constant tension from empty to full bobbin
Magnetic powder clutch 1.2kgf 5kgf 10kgf 10kgf
Protection 1.wire inside and outside is broken,automatically brake/stop
2.The preset length is arrived
Brake mode Electromagnetic brake
Traversing method Rolling wire with ring drive units,winding pitch and breadth are adjustable
Operation mode Touchscreen operation
Dimension(mm) 2680L*1250W*1500H 3300L*1550W*1800H 3400L*1600W*1800H 4600L*2000W*2000H

Model FC-1000B large wire high speed bunching machine and double twist bunching machine

1.1 Japanese Technology, product in China

1.2 Apply for the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.

Characteristics:

2.1 Latest developed machine.

2.2 This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),

2.3 low power, small floor place ,low noise and other merits.

Specification:

Equipment models

FC-1000B

Twisting usage

Apply for the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.

Single wire dia(mm)

φ0.30-φ1.7

Stranding section area(mm²)

6.0-35.0

Core wire single wire dia

φ2.0-φ5.0

Core wire stranding outer dia

φ4.0-φ10

Pitch(mm)

35-200(12zones)

Direction of lay

Optional for right or left

Take up bobbin Outer dia*bore*outer width

φ1000*φ80*750

Max rotating speed

1000(2000twist)

Main motor power

18.5KW

Inverter power

18.5KW

Tension control method

Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin

Magnetic powder clutch

20kgf

Protection

Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.

Brake mode

Electromagnetic brake

Traversing method

Rolling ring drive units, winding pitch and breadth are adjustable

Operation mode

Touch screen operation

Dimension(mm)

4000L*2200W*2100H

Model FC-1600B large wire high speed bunching machine and double twist bunching machine

The technology of this machine is brought from Japan and put in production in JiangSu

Merits: It is the latest developed machine. This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),low power, small floor place ,low noise and other merits.

Equipment models

FC-1600B

Twisting usage

It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.

Single wire dia(mm)

φ0.50-φ2.52

Stranding section area(mm²)

16.0-95

Core wire single wire dia

φ3.0-φ10.0

Core wire stranding outer dia

φ8.0-φ20.0

Pitch(mm)

80-350(12zones)

Direction of lay

Optional for right or left

Take up bobbin Outer dia*bore*outer width

φ1600*φ80*1180

Max rotating speed

600(1200twist)

Main motor power

30KW

Inverter power

30KW

Tension control method

Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin

Magnetic powder clutch

40kgf

Protection

Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.

Brake mode

Electromagnetic brake

Traversing method

Rolling ring drive units, winding pitch and breadth are adjustable

Operation mode

Touch screen operation

Dimension(mm)

5000L*3000w*3000H

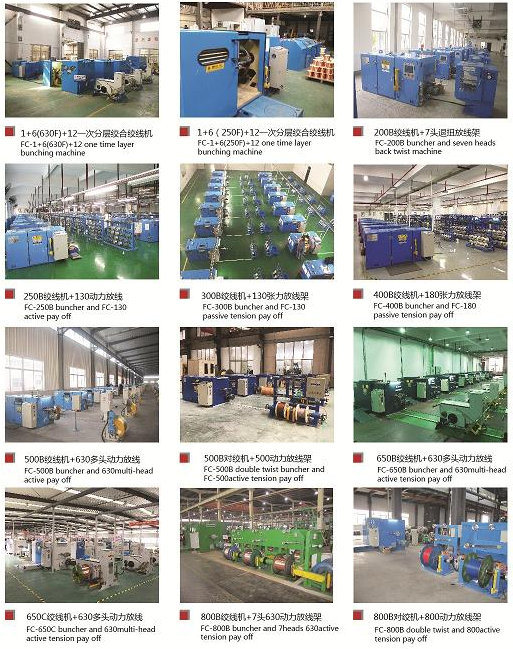

4. Machine Show
650b Automobile Wire, Electrical Power Wire, Copper Wire 0.3-2.5sq mm PLC Pitch Double Twister Buncher Bunching Winding Drawing Machine

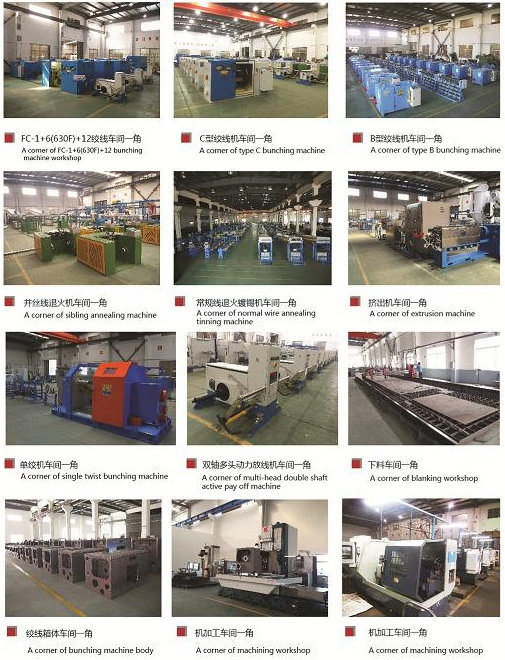

5. Cornor of Workshop
650b Automobile Wire, Electrical Power Wire, Copper Wire 0.3-2.5sq mm PLC Pitch Double Twister Buncher Bunching Winding Drawing Machine
6. Customer Show
650b Automobile Wire, Electrical Power Wire, Copper Wire 0.3-2.5sq mm PLC Pitch Double Twister Buncher Bunching Winding Drawing Machine
6. Fair Show
650b Automobile Wire, Electrical Power Wire, Copper Wire 0.3-2.5sq mm PLC Pitch Double Twister Buncher Bunching Winding Drawing Machine

6. Certificates & Honor & Patents
650b Automobile Wire, Electrical Power Wire, Copper Wire 0.3-2.5sq mm PLC Pitch Double Twister Buncher Bunching Winding Drawing Machine

7. For more details, please feel free to contact with me in any time:
And FUCHUAN always sincerely welcome for your visit and cooperation.
