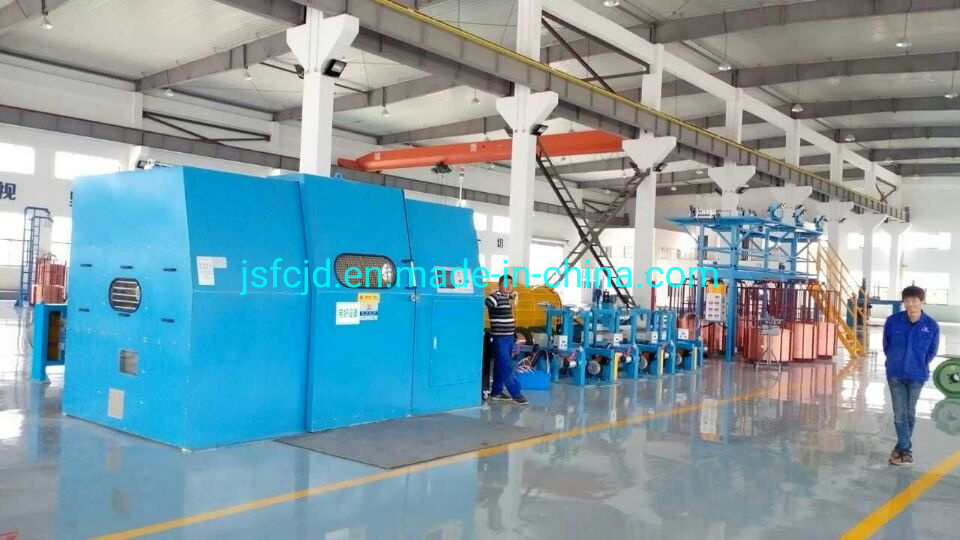

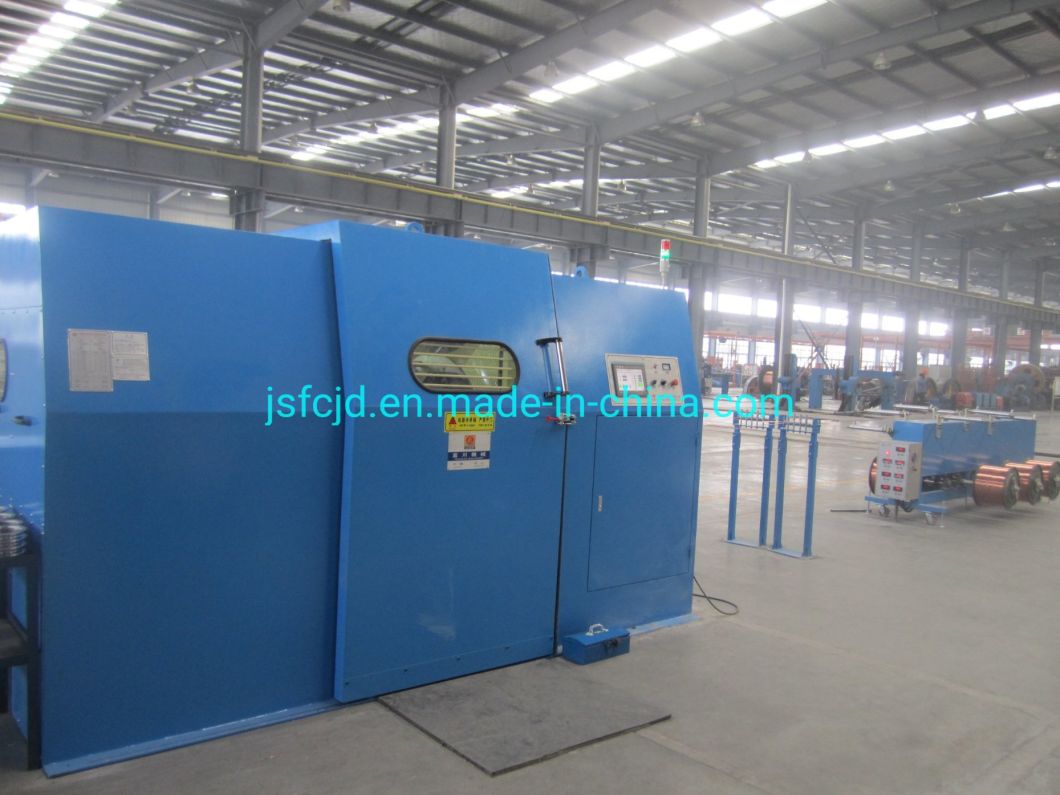

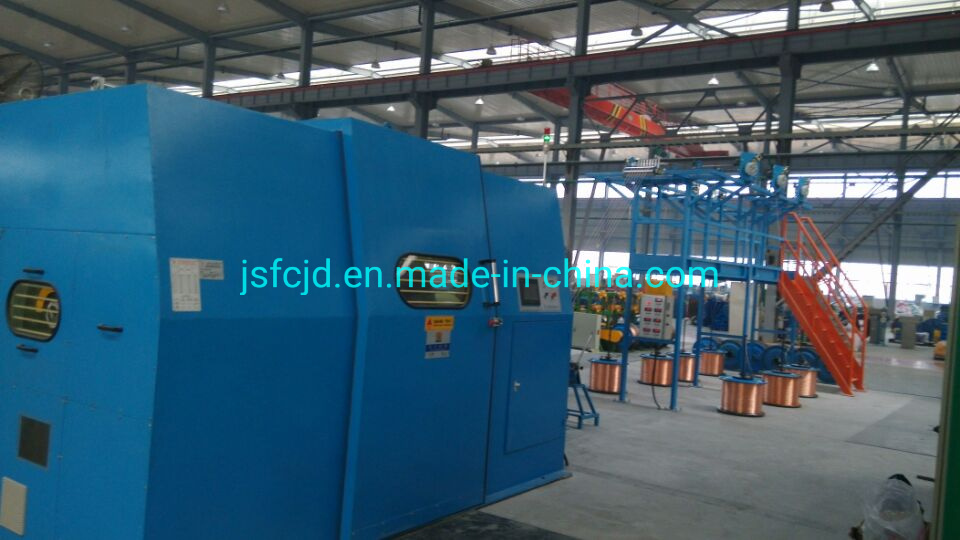

1.5-12.0mm Cable Copper Wire Twist Twisting Bunching Buncher Stranding 1250mm Bobbin Take up Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
>1,000,000 Shots
Model FC-1250B large wire high speed bunching machine and double twist bunching machine
The technology of this machine is brought from Japan and put in production in JiangSu
Merits: It is the latest developed machine. This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),low power, small floor place ,low noise and other merits.
Equipment models FC-1250B Twisting usage It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires. Single wire dia(mm) φ0.5-φ2.14 Stranding section area (mm²) 10.0-50.0 Core wire single wire dia φ3.0-φ8.0 Core wire stranding outer dia φ6.0-φ16.0 Pitch(mm) 50-250(12zones) Direction of lay Optional for right or left Take up bobbin Outer dia*bore*outer width φ1250*φ80*950 Max rotating speed 800(1600twist) Main motor power 22KW Inverter power 22KW Tension control method Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin Magnetic powder clutch 20kgf Protection Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. Brake mode Electromagnetic brake Traversing method Rolling ring drive units, winding pitch and breadth are adjustable Operation mode Touch screen operation Dimension(mm) 4500L*2600W*2500H
