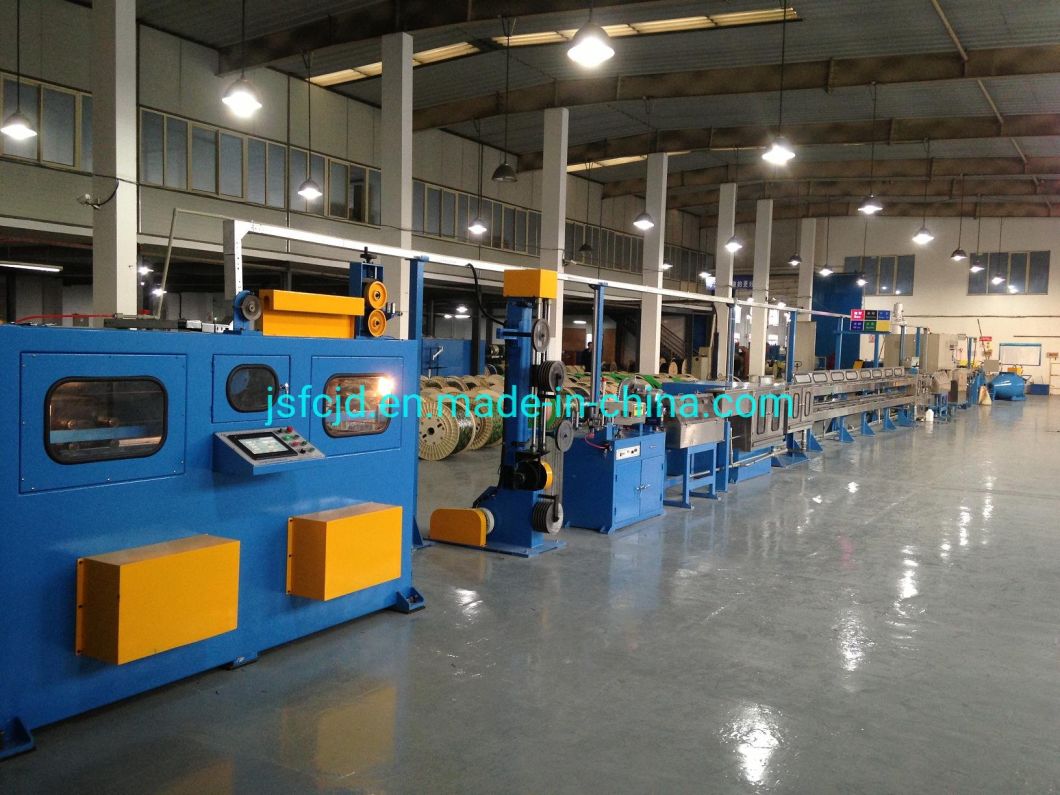

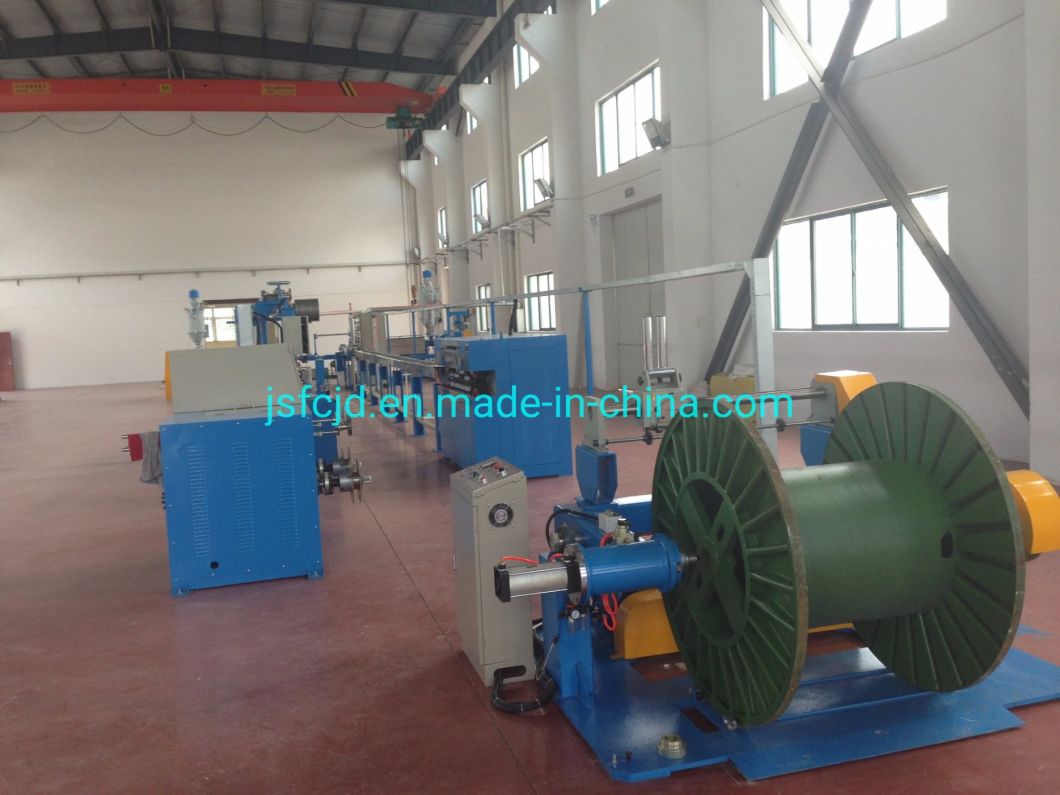

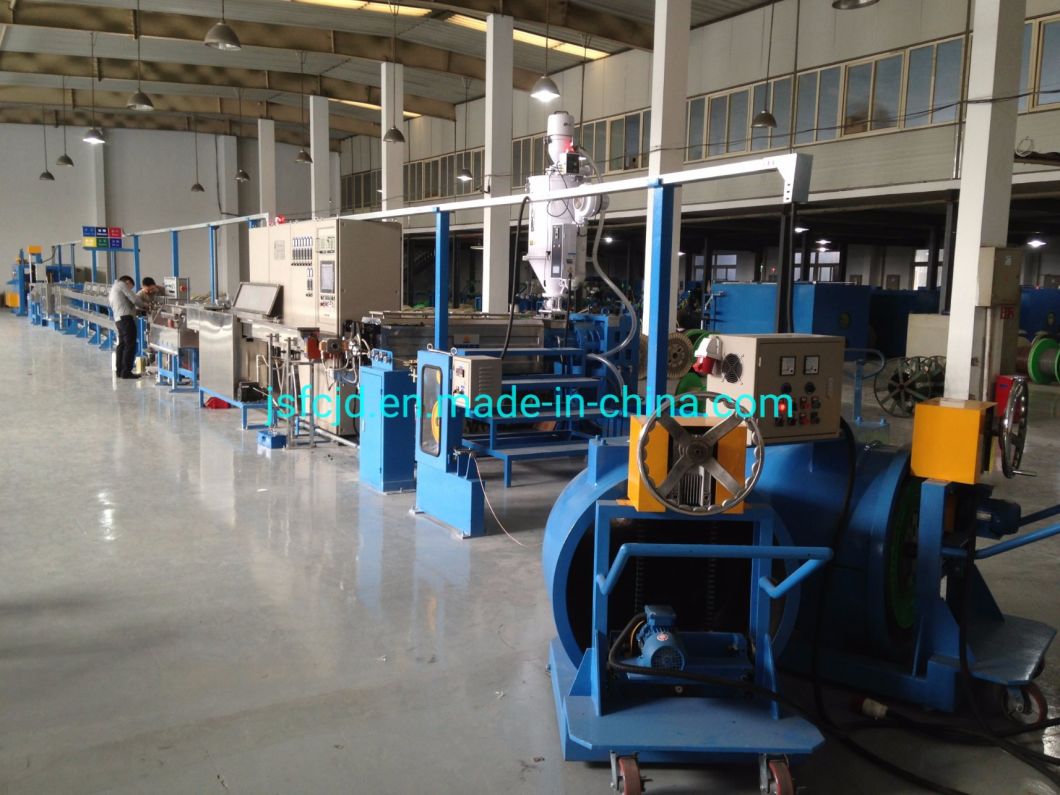

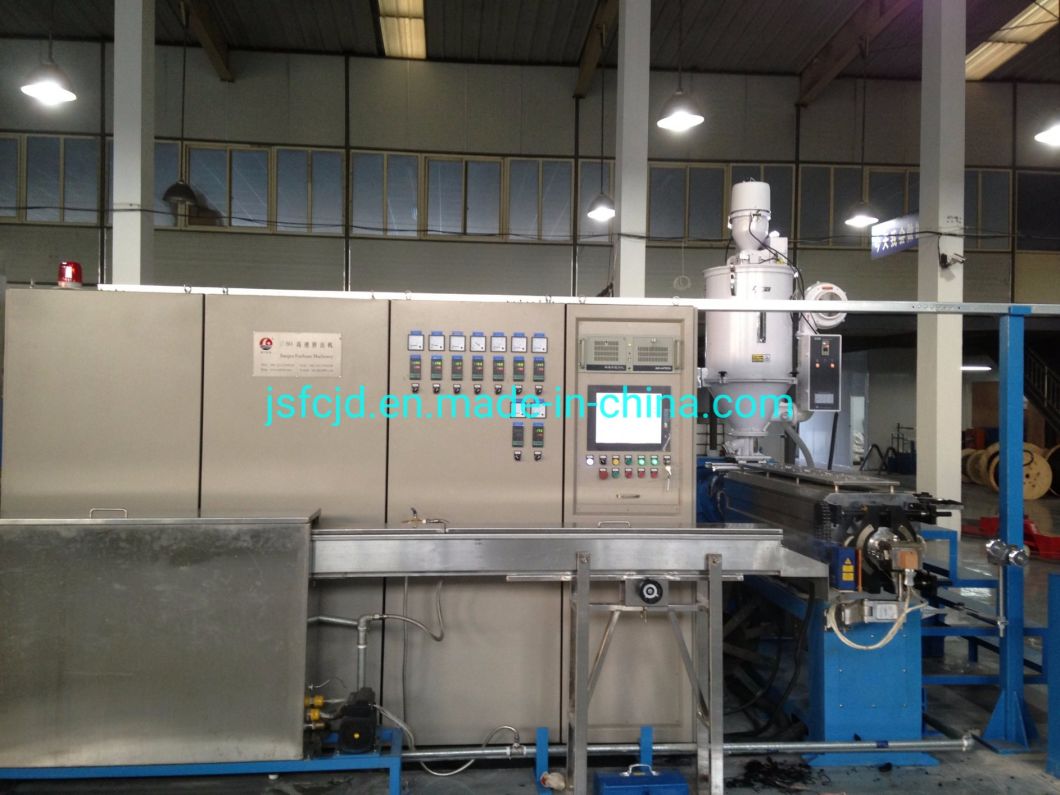

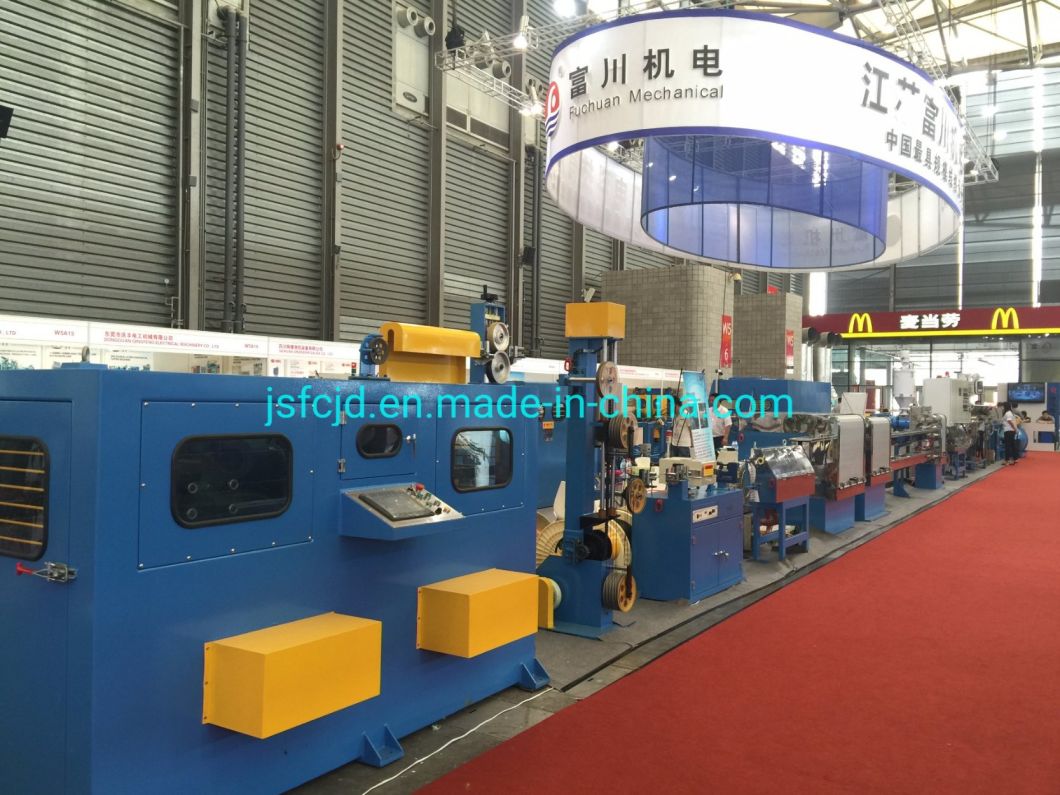

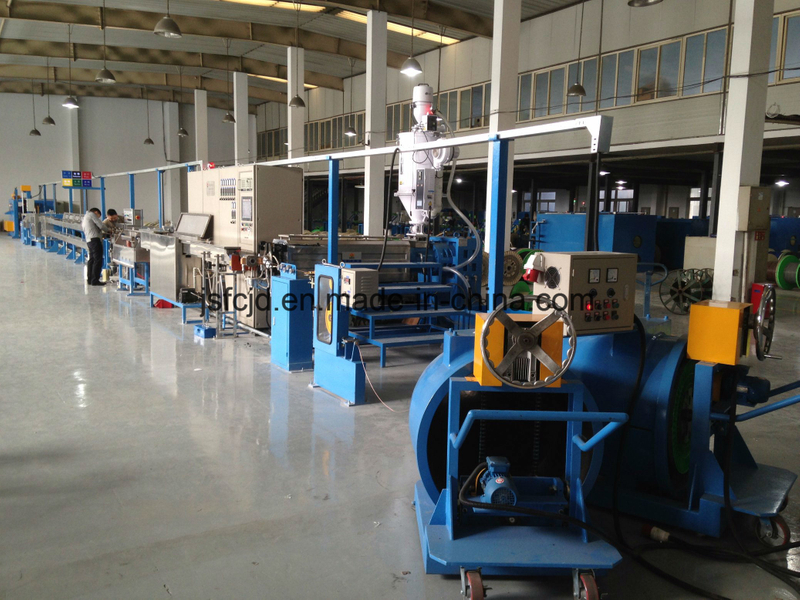

1.0-16mm Electrical Wire and Cable Making Extrusion Bunching Buncher Stranding Machine
-
12months
-
12months
-
Wire Extruder
-
PVC,PP,PE,Sr-PVC and Other Plastic Material
-
Core Wire,Cable Wire Extrusion
-
Wire and Cable Making
FC-φ70+φ40technical specifications
Fit for material LSZH,LSOH, PVC , PE , XLPE,HFFR insulating-sheathing extrusion.
1. Machine direction : right hand machine or left hand machine
2. Line axis height 1000mm ;
3. Inlet conductor diameter :φ 0.5- φ 3.2mm; sheathing wire 2.0 φ -10.0 φ4. Finished wire diameter :φ 1.5- φ 5.0mm ; sheathing finished wire φ 3.0- φ 12.05. Linear speed : 300m/min(according to wire)6. Machine color :sky blue7. Power in customer's area:3P/380V/50HZ
Main components of machine

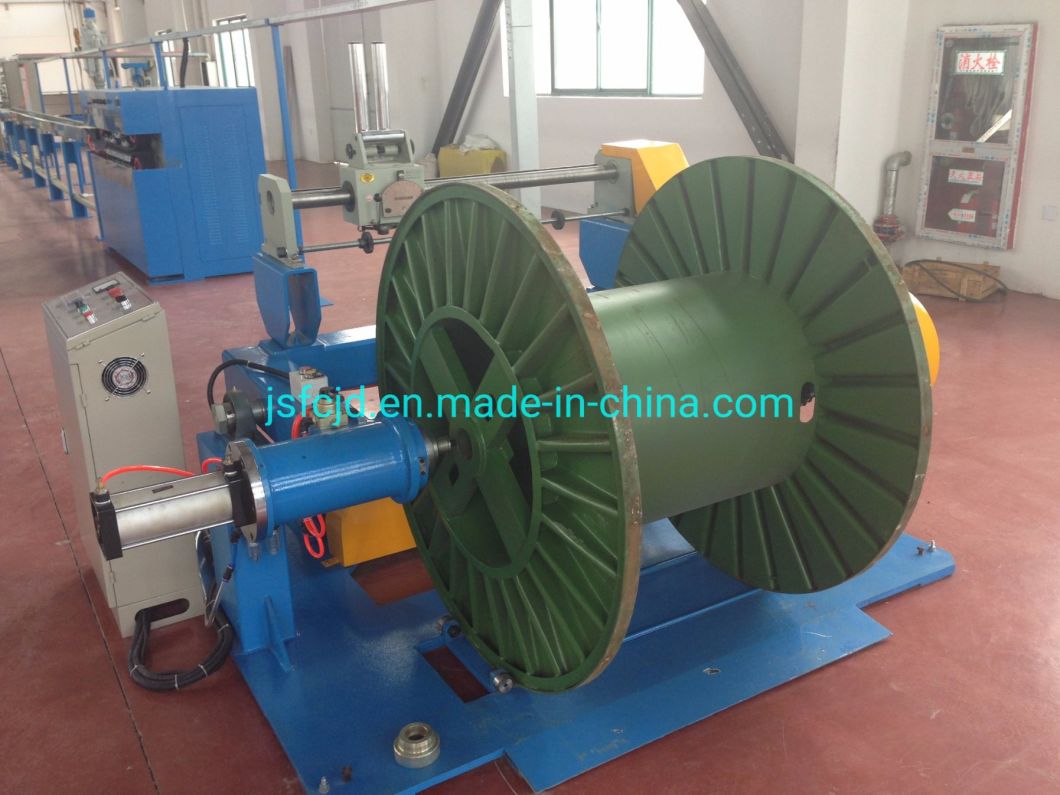

No Specification number unit Note 1630active pay off machine 1 Set Fuchuan made 2120swing tension rack 1 Set Fuchuan made 3Wire straighting machine 1 set Fuchuan made 4U7 cross head 1 set For core wire 5X7 adjustable head 1 set For sheathing 6¢70 extruder 1 set contains one screw 7¢40fixed injection machine 1 set 81.8 meters adjustable cooling tank 1 set Fuchuan made 9Diameter measure device 1 set Shanghai On-line 10High speed printing machine 1 set Fuchuan made 11 Front 2meters back 6 meters fixed water tank 1 set Fuchuan made 12 510 rotation box 1 set Fuchuan made 13 510 hauling machine 1 set Fuchuan made 14 12 meters horizontal accumulator rack 1 set Fuchuan made 15 159 meter counter device 1 set Fuchuan made 16 Spark tester 1 set Tai Wan He Tai 17 800 doubleshaft take up machine 1 sets 18 50KG dryer hopper loader(for 70 extruder) 1 set Tai Wan XIN YI 19 Insuction machine(for 70 extruder) 1 set Tai Wan XIN YI 20 25KG dryer hopper loader(for 45injection ) 1 set Tai Wan XIN YI 21 Insuction machine(for 45injection machine) 1 set Tai Wan XIN YI 22 Electrical control parts 1 set
