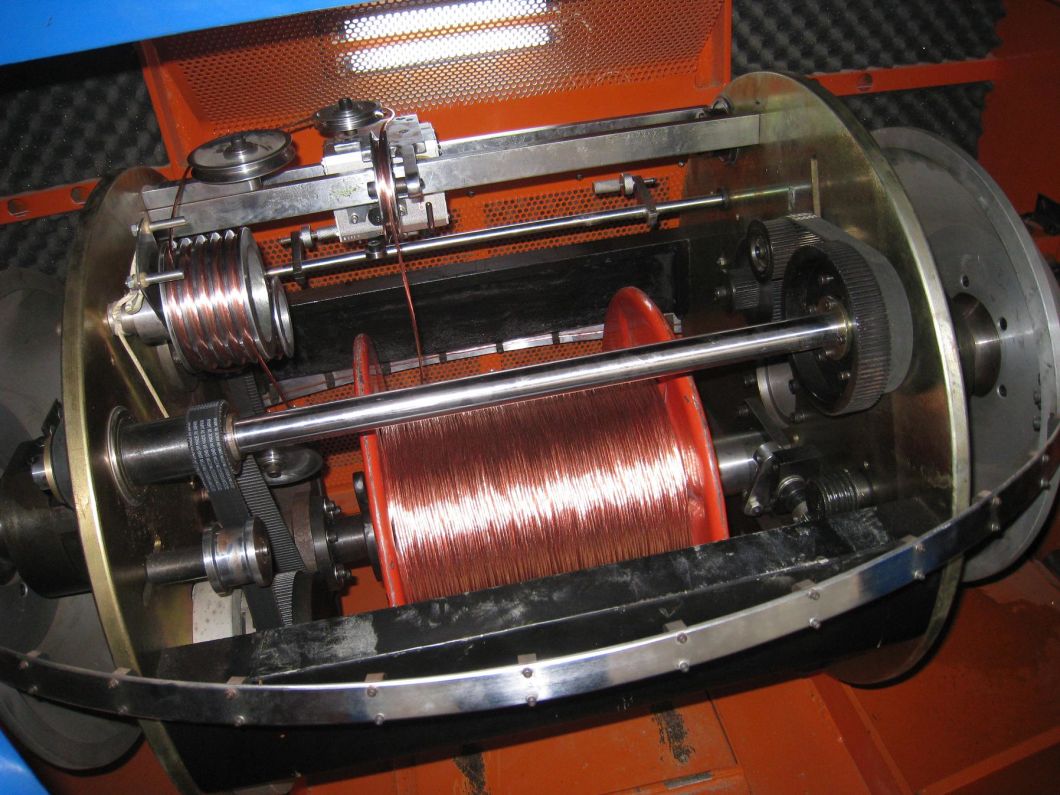

0.08-0.45mm Bare Copper Wire Insulated Core Cable Wire Twisting Bunching Stranding Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • 12months

  • Electric

  • New

  • ISO, CE

  • 12 Months

  • Automatic

Series for Model B normal wire high speed bunching machine and double twist bunching machine

The technology of this machine is brought from Japan and put in production in JiangSu

Merits: With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.


Equipment models FC-500B-1
Twisting usage It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm) φ0.08-φ0.45
Stranding section area (mm²) 0.05-2.5
Core wire single wire dia φ0.5-φ1.5
Core wire stranding outer dia φ1.0-φ3.5
Pitch(mm) 6.3-52.3(24zones)
Direction of lay Optional for right or left
Outer dia*bore*outer width φ500*φ56*375
Max rotating speed 3000(6000twist)
Main motor power 5.5KW
Inverter power 5.5KW
Tension control method Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch 1.2kgf
Protection Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode Electromagnetic brake
Traversing method Rolling ring drive units, winding pitch and breadth are adjustable
Operation mode Touch screen operation
Dimension(mm) 2680L*1250W*1500H

0.08-0.45mm Bare Copper Wire Insulated Core Cable Wire Twisting Bunching Stranding Machine
0.08-0.45mm Bare Copper Wire Insulated Core Cable Wire Twisting Bunching Stranding Machine
0.08-0.45mm Bare Copper Wire Insulated Core Cable Wire Twisting Bunching Stranding Machine

0.08-0.45mm Bare Copper Wire Insulated Core Cable Wire Twisting Bunching Stranding Machine
0.08-0.45mm Bare Copper Wire Insulated Core Cable Wire Twisting Bunching Stranding Machine
