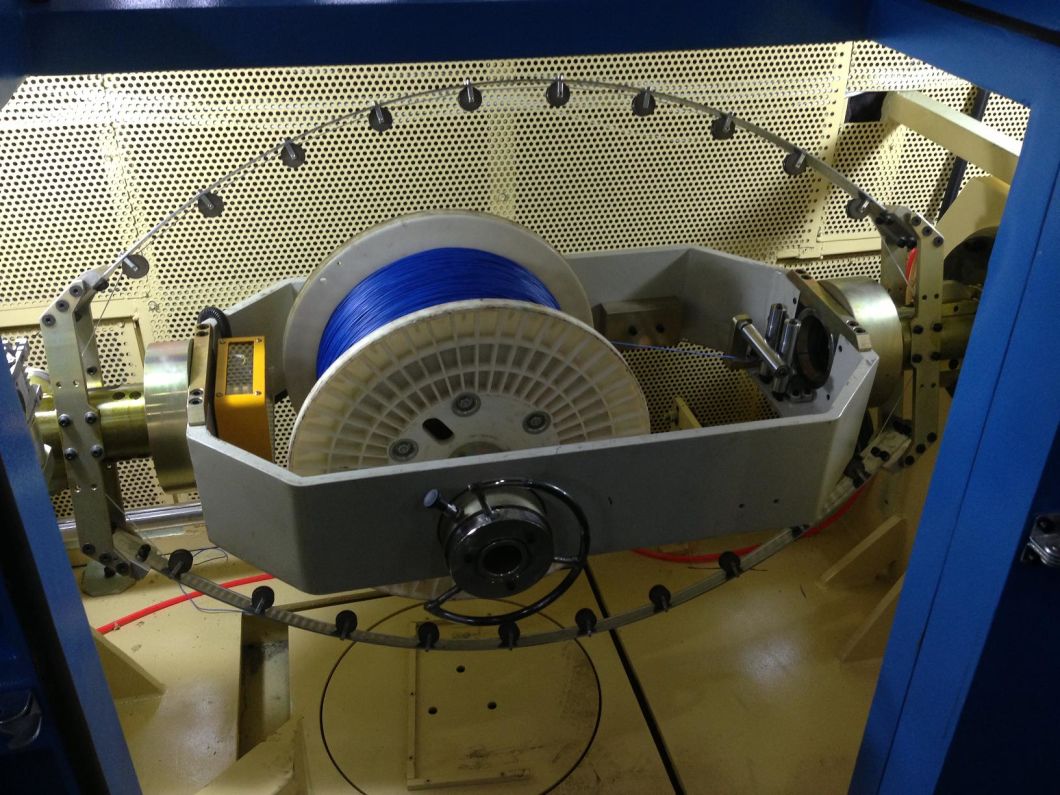

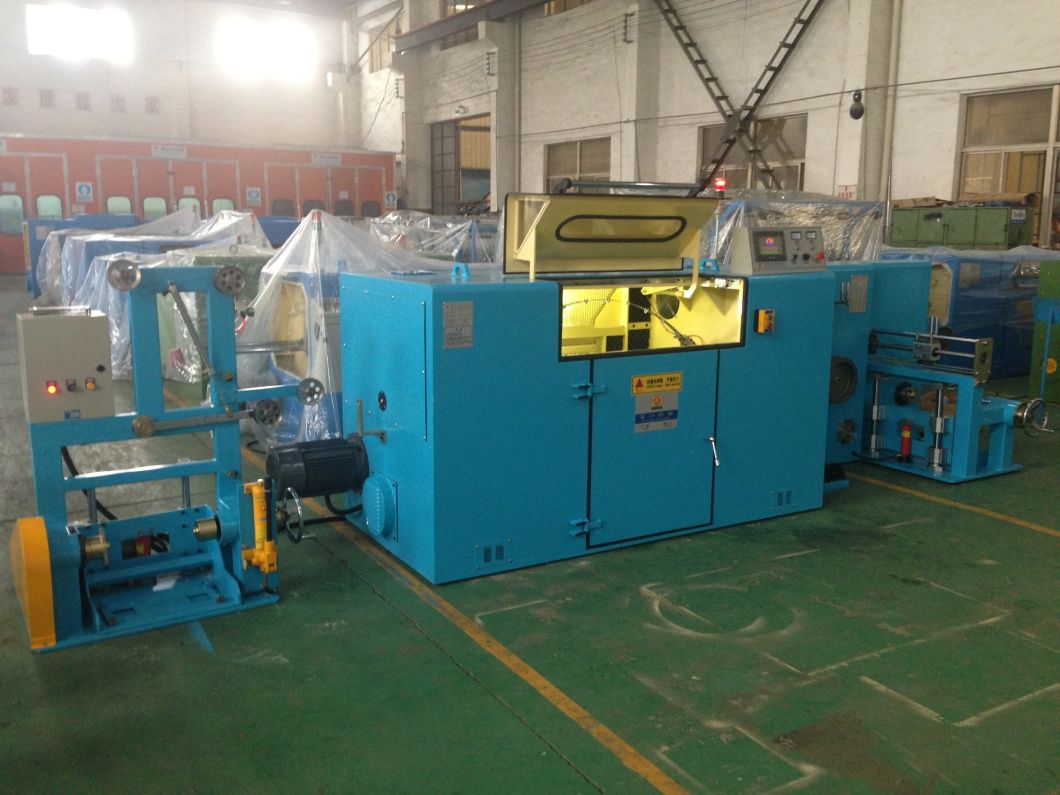

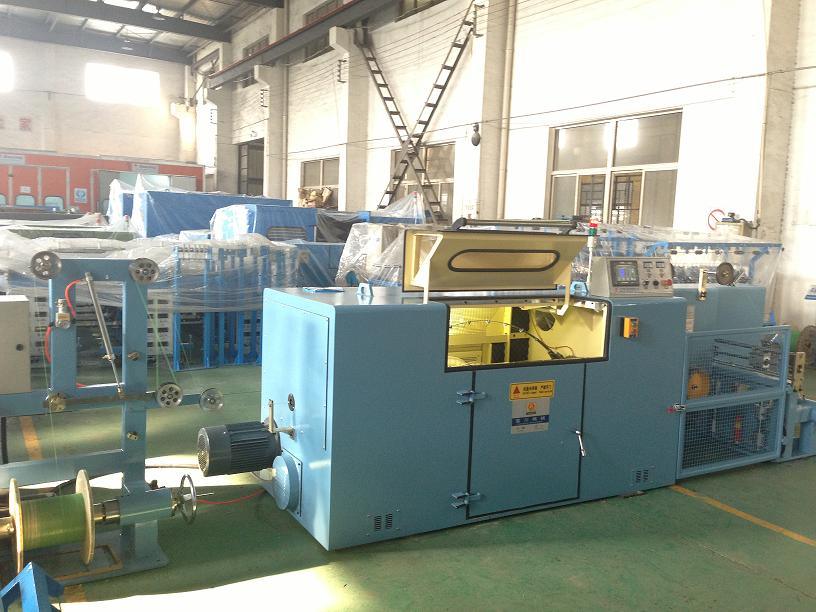

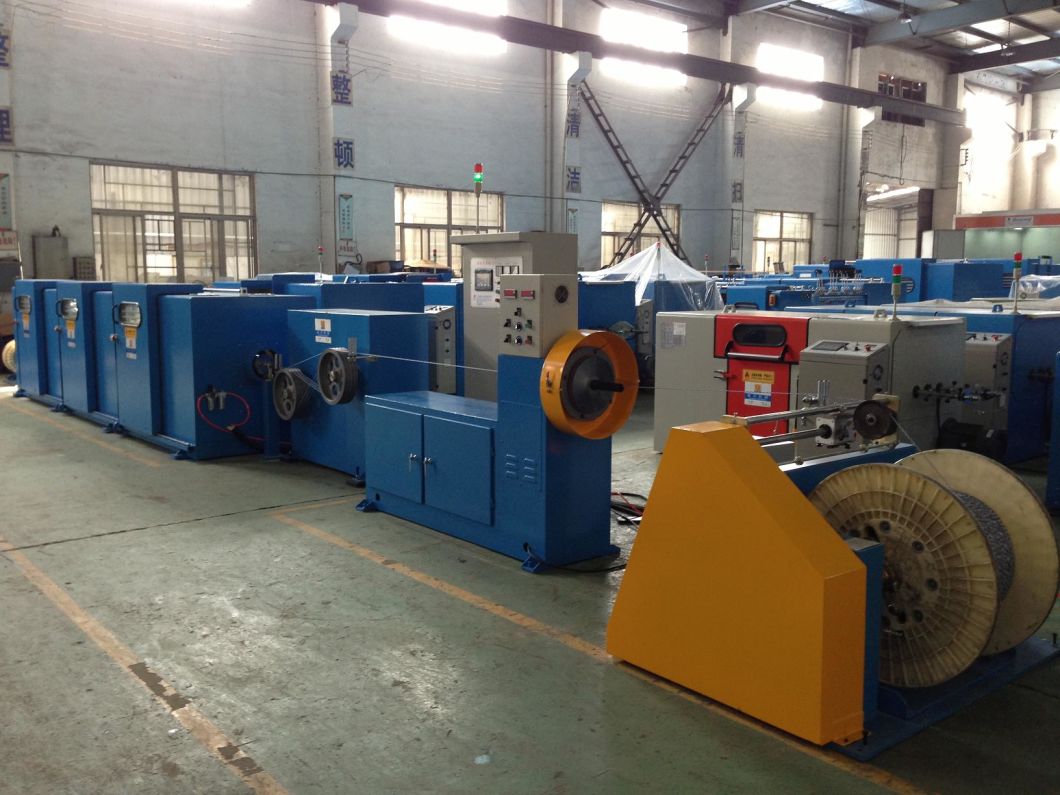

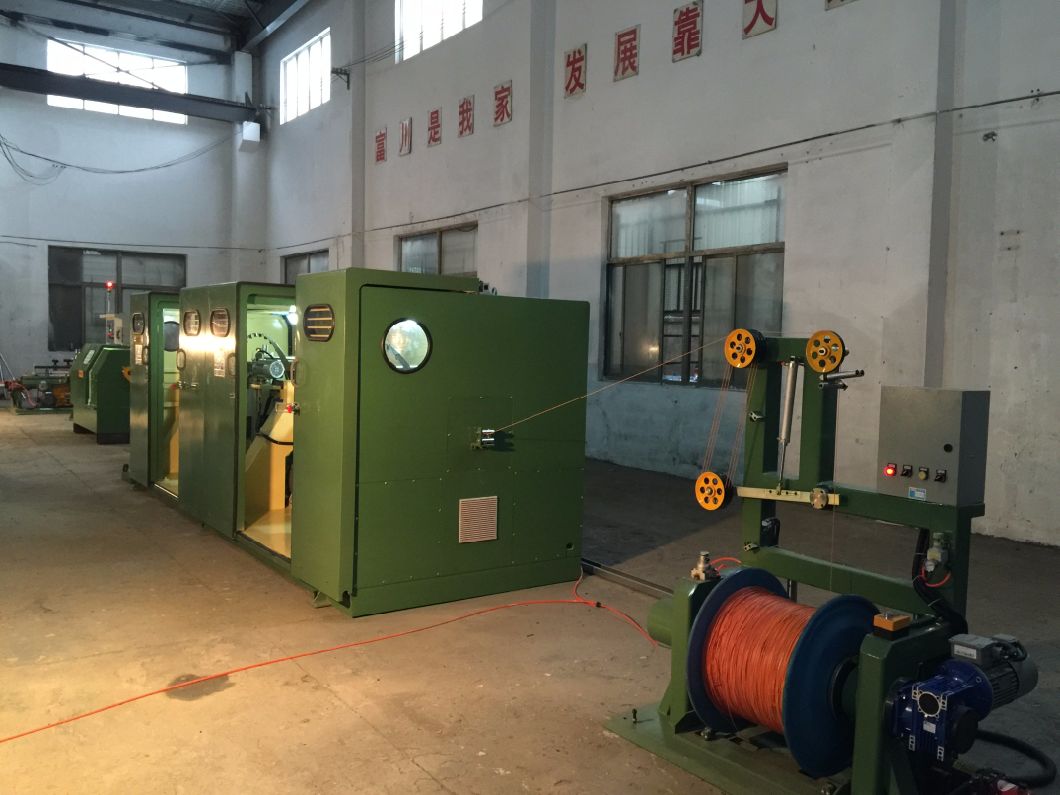

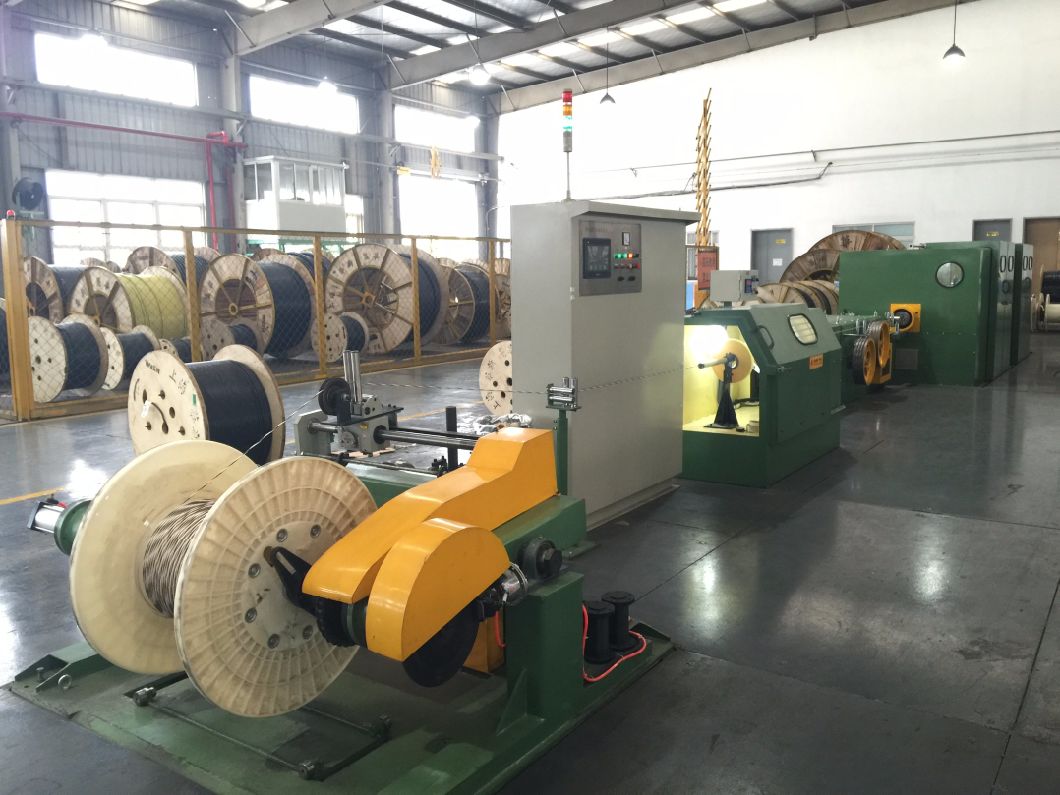

0.05-2.14mm Electrical Cable Copper Wire Winding Bunching Stranding Bunchers Machine
-
Electric
-
New
-
ISO, CE, ISO2001
-
12 Months
-
Automatic
-
>1,000,000 Shots
Merits: It is applied to high frequency date cable, LAN cable (CAT6 cable). Non twist after double twisting, make the insulated core wire interlace uniformly, avoid the nonuniform twist force,thus make the finished wire with the uniform ,precision pitch. this machine is developed for the high speed data wire & cable(contain the USB2.0, USB3.0, CATE-6E, HDMI and other wire) ,combined the functions and merits of non-twist stranding machine and high speed wrapping machine. the 2 machine can operate separatly and simultaneously. Device structure: Active pay off, Non-twist stranding machine, High frequency spark tester ,Wrapping machine, Take-up and other parts.
1.core wire dia:0.5-2.0mm
2.core wire stranding outer dia:1.0-4.0mm
3.pitch:10-90(24zones)
4.Pay off bobbin size:400*56*300mm
5.Outer pay off type:active pay off
6.Inner pay off type:magnetic tension pay off
7.Take up bobbin size:500*56*375
8.Pay off motor power:1.5kw
9.Main motor power:5.5kw
10.Tension control method:touch screen+plc+magnetic powder clutch,it may ensure the constant tension from empty bobbin to full bobbin.
11.Inner magnetic powder clutch:1.2kgf
12.Magnetic powder clutch:5kgf
13.Traversing method:Rolling ring drive units,winding pitch and breadth are adjustable.
14.Operation mode:Touch screen operation
