Availability: | |
---|---|
12months
12months
Twist Tinned Wire, Silver Jacketed Wire, Enamelled
Wire From Wire Diameter 0.38 to 1.7
From 1.0 to 16 mm2
1500rpm
Equipment model | FC-500B | FC-650B | FC-650B-2 | FC-800B | ||||
Twisting usage | Apply for the twisting of above seven pcs of bare copper wires,tinned wires,silver jacketed wires and enameled wires),double twisting for core wires. | |||||||
Single wire diaφ(mm) | 0.08-0.45 | 0.15-1.04 | 0.37-1.7 | 0.37-1.7 | ||||
Stranding section area | 0.05-2.5 | 0.35-6.0 | 1.0-16 | 1.0-16 | ||||
Core wire single wire diaφ(mm) | 0.5-1.5 | 0.5-3.0 | 1.0-4.0 | 1.0-4.0 | ||||
Core wire stranding outer dia(mm) | 1.0-3.0 | 1.0-6.0 | 2.0-8.0 | 2.0-8.0 | ||||
Pitch(mm) | 6.3-52.3 | 11.6-100 | 20-160 | 23-147 | ||||
Direction of lay | Optional for right or left | |||||||
Take up bobbin(mm) | Dia500 | Dia630 | Dia630 | Dia800 | ||||
Max rotating speed | 3000rpm(6000TPM) | 2000rpm(4000TPM) | 1600rpm(3200TPM) | 1600rpm(3200TPM) | ||||
Main motor power | 5.5kw | 7.5kw | 11kw | 15kw | ||||
Inverter power | 5.5kw | 7.5kw | 11kw | 15kw | ||||

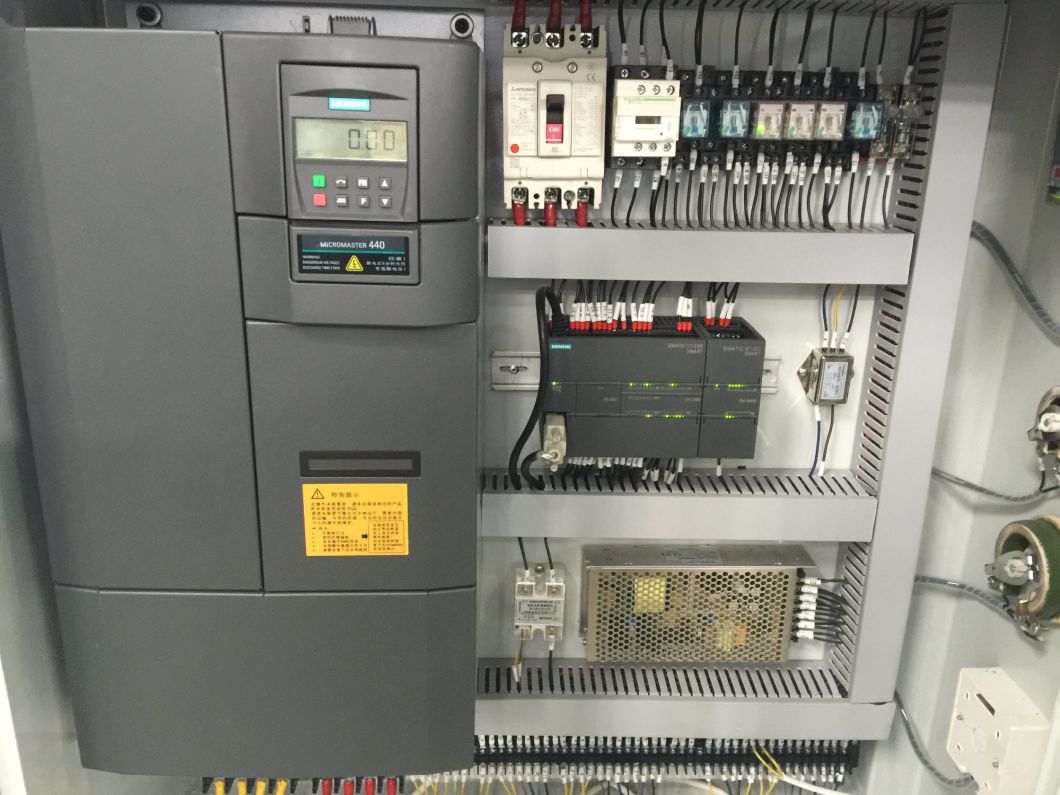

Tension control method | Magnetic powder clutch+PLC+touchscreen,ensure the constant tension from empty to full bobbin | |||||||
Magnetic powder clutch | 1.2kgf | 5kgf | 10kgf | 10kgf | ||||
Protection | 1.wire inside and outside is broken,automatically brake/stop 2.The preset length is arrived | |||||||
Brake mode | Electromagnetic brake | |||||||
Traversing method | Rolling wire with ring drive units,winding pitch and breadth are adjustable | |||||||

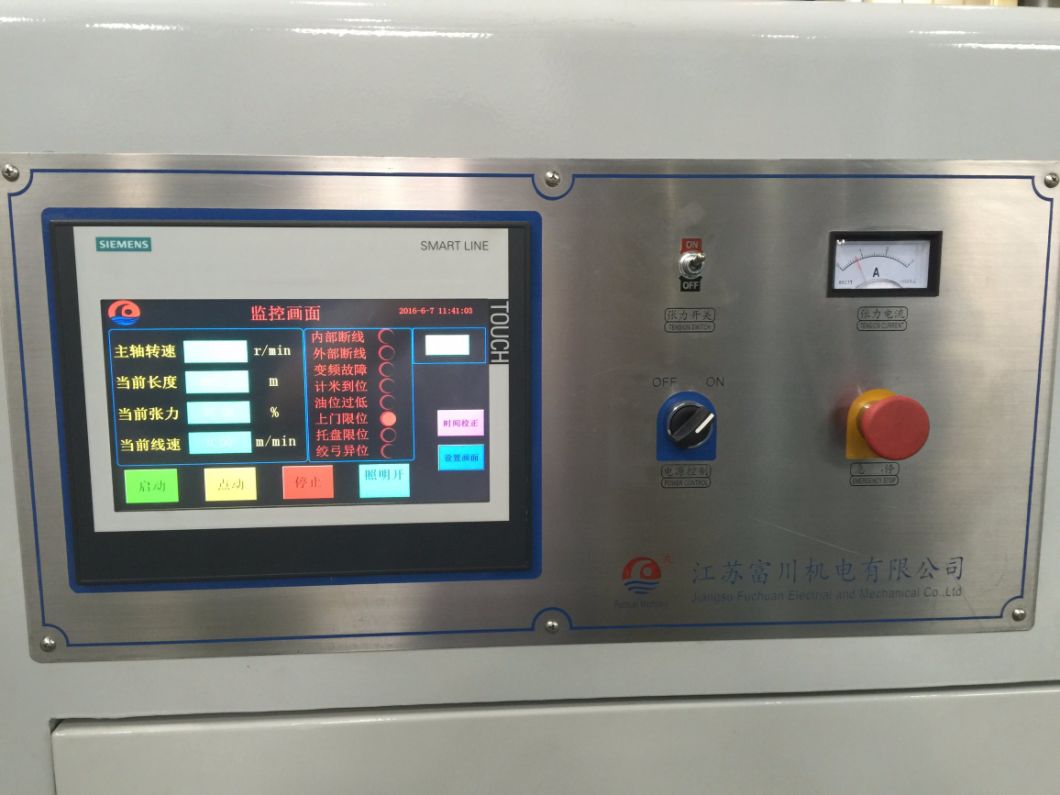

Operation mode | Touchscreen operation | |||||||
Dimension(mm) | 2680L*1250W*1500H | 3300L*1550W*1800H | 3400L*1600W*1800H | 4600L*2000W*2000H |
