0.04-2.52mm Copper Conductor Cable Wire Twisting Winding Bunching Buncher Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Electric

  • New

  • ISO, CE

  • 12 Months

  • Automatic

  • 300,000-1,000,000 Shots



0.04-2.52mm Copper Conductor Cable Wire Twisting Winding Bunching Buncher Machine
0.04-2.52mm Copper Conductor Cable Wire Twisting Winding Bunching Buncher Machine
0.04-2.52mm Copper Conductor Cable Wire Twisting Winding Bunching Buncher Machine
0.04-2.52mm Copper Conductor Cable Wire Twisting Winding Bunching Buncher Machine
0.04-2.52mm Copper Conductor Cable Wire Twisting Winding Bunching Buncher Machine
0.04-2.52mm Copper Conductor Cable Wire Twisting Winding Bunching Buncher Machine

Series for ultra fine copper wire twisting machine
1. Merits:

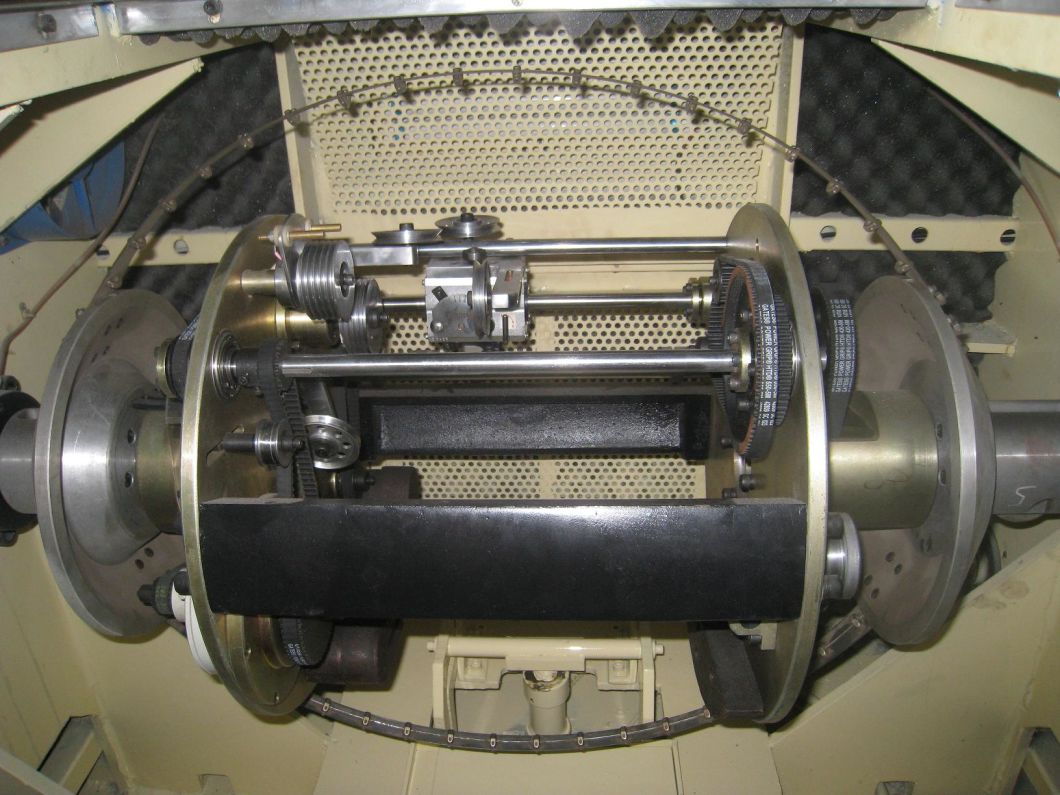

With high rotation speed, with the main shaft counts the meters, the same machine twist the types of the same line, and the tolerance is only 0.0001%. With constant tension from empty bobbin to full bobbin, with superior quality for twist wire, it can realize bunching instead of twisting to match up FC-100 active back-twist pay-off machine. And meet requirements of customer to twist wire of small crossection area. The machine is driven by synchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate.
2. Apllication:
It is applied to the bunching of aerospace, medical equipment, cellphone and ultra conductor(above 7 PCS of bare copper wires, tinned wires, silver jacketed wires and enamelled wires).

3. Tech. Parameter:
Equipment model FC-200B FC-250B FC-300B FC-400B
Twisting usage Apply for the twisting of above seven pcs of aerospace,medical instrument,cellphone,notebook PC and ultra fine conductor,alloy wire,tinned wires,silver jacketed wires and enameled wires),double twisting for core wires.
Single wire diaφ(mm) 0.016-0.08 0.03-0.18 0.05-0.28 0.05-0.32
Stranding section area 0.0014-0.035 0.0049-0.3 0.0137-0.45 0.0137-1.0
Pitch(mm) 0.8-4.0 0.8-10.8 1.6-21.6 3.1-33.3
Direction of lay Optional for right or left
Take up bobbin(mm) Dia200 Dia250 Dia300-250 Dia400
Max rotating speed 5000rpm(10000TPM) 4000rpm(8000TPM) 3500rpm(7000TPM) 3500rpm(7000TPM)
Main motor power 2.2kw 3.7kw 3.7kw 3.7kw
Inverter power 2.2kw 3.7kw 3.7kw 3.7kw
Tension control method Magnetic powder clutch+PLC+touchscreen,ensure the constant tension from empty to full bobbin
Magnetic powder clutch 0.05kgf 0.3kgf 0.6kgf 0.6kgf
Protection 1.wire inside and outside is broken,automatically brake/stop
2.The preset length is arrived
Brake mode Electromagnetic brake
Traversing method Rolling wire with ring drive units,winding pitch and breadth are adjustable
Operation mode Touchscreen operation
Dimension(mm) 2000L*960W*1100H 2300L*1100W*1330H 2300L*1100W*1330H 2850L*1150W*1350H

For more details, please contact me.
