0.04-0.64mm Electrical Core Copper Cable Wire Enamelled CCA Wire Bunchers Winding Twisting Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Electric

  • New

  • ISO, CE

  • 24 Months

  • Automatic

  • >1,000,000 Shots

0.04-0.64mm Electrical Core Copper Cable Wire Enamelled CCA Wire Bunchers Winding Twisting Machine
0.04-0.64mm Electrical Core Copper Cable Wire Enamelled CCA Wire Bunchers Winding Twisting Machine
0.04-0.64mm Electrical Core Copper Cable Wire Enamelled CCA Wire Bunchers Winding Twisting Machine
0.04-0.64mm Electrical Core Copper Cable Wire Enamelled CCA Wire Bunchers Winding Twisting Machine

0.04-0.64mm Electrical Core Copper Cable Wire Enamelled CCA Wire Bunchers Winding Twisting Machine
0.04-0.64mm Electrical Core Copper Cable Wire Enamelled CCA Wire Bunchers Winding Twisting Machine

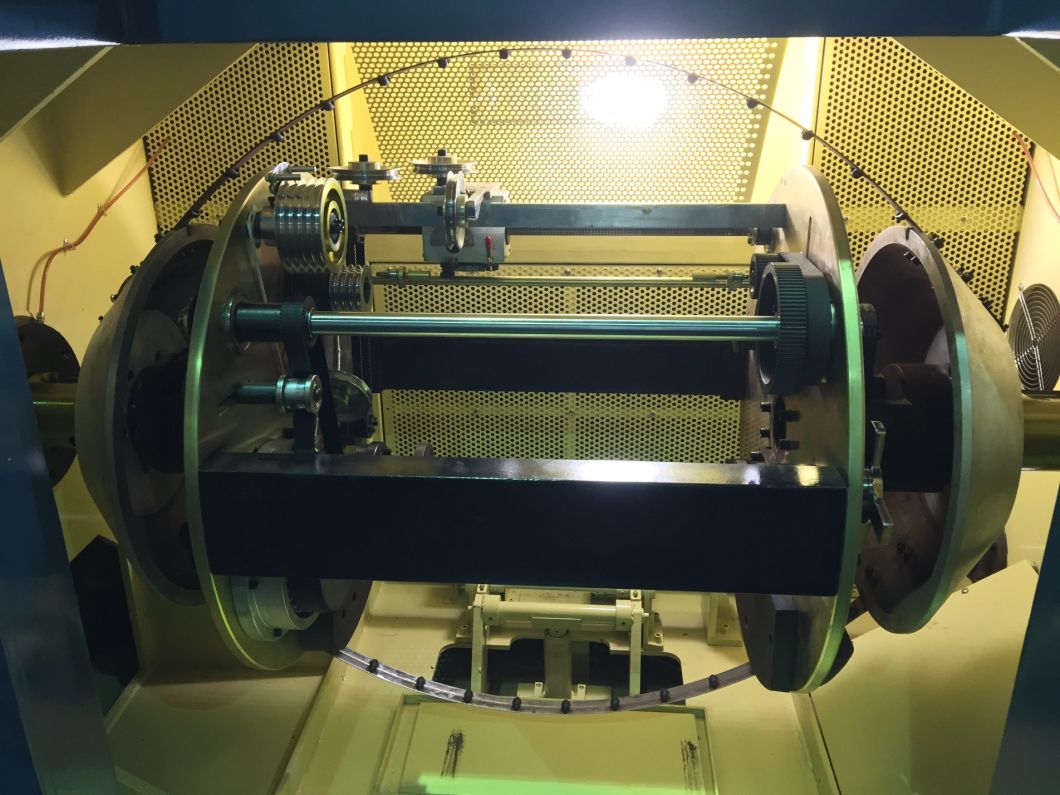

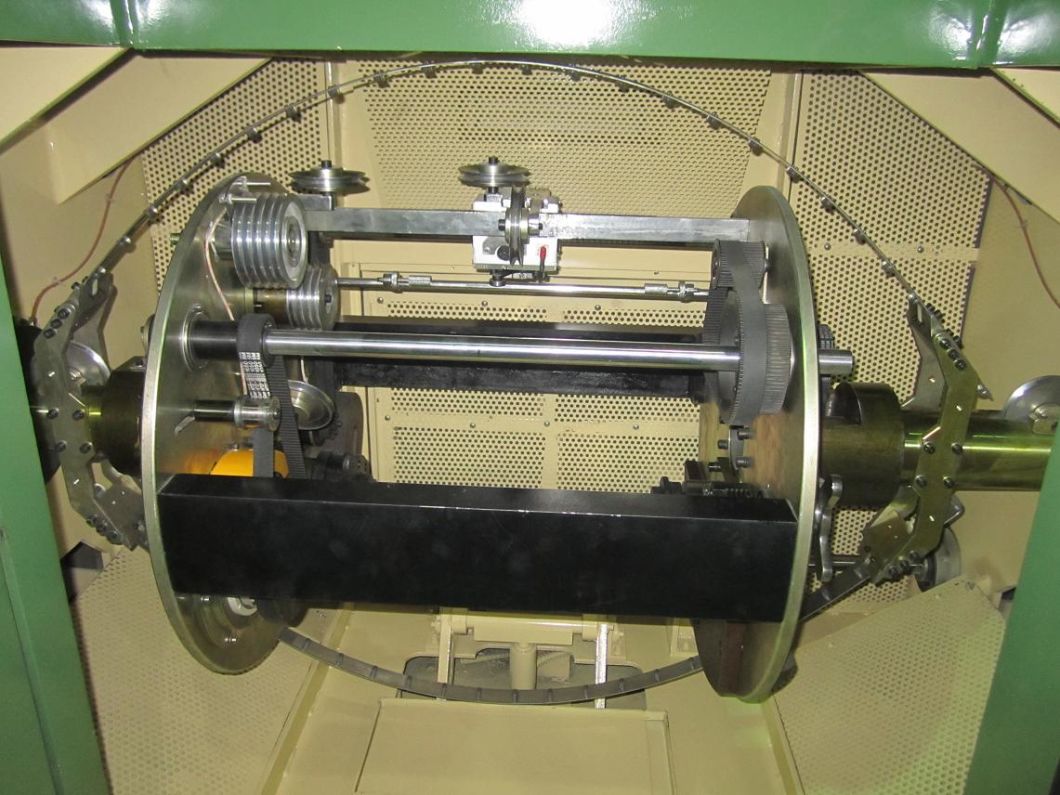

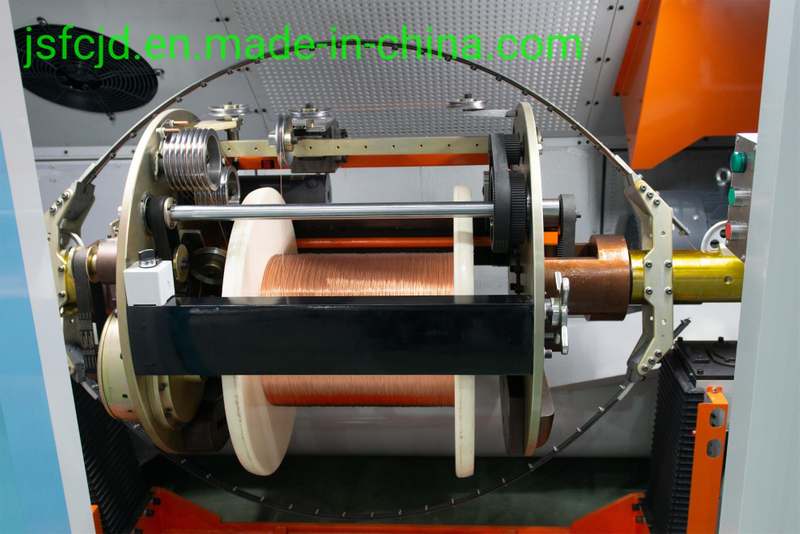

B type high speed twisting machine and double twist machine
1. Characters:
With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, the machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch, easy to operate.

2. Usage:
It is applied to the twisting of above 7 PCS of bare copper wires, tinned wires, silver jacketed wires and enamelled wires and double twisting for core wires.
Equipment model FC-500B FC-650B FC-650C FC-800B
Twisting usage Apply for the twisting of above seven pcs of bare copper wires,tinned wires,silver jacketed wires and enameled wires),double twisting for core wires.
Single wire diaφ(mm) 0.08-0.45 0.15-1.04 0.37-1.7 0.37-1.7
Stranding section area 0.05-2.5 0.35-6.0 1.0-16 1.0-16
Core wire single wire diaφ(mm) 0.5-1.5 0.5-3.0 1.0-4.0 1.0-4.0
Core wire stranding outer dia(mm) 1.0-3.0 1.0-6.0 2.0-8.0 2.0-8.0
Pitch(mm) 6.3-52.3 11.6-100 20-160 23-147
Direction of lay Optional for right or left
Take up bobbin(mm) Dia500 Dia630 Dia630 Dia800
Max rotating speed 3000rpm(6000TPM) 2000rpm(4000TPM) 1600rpm(3200TPM) 1600rpm(3200TPM)
Main motor power 5.5kw 7.5kw 11kw 15kw
Inverter power 5.5kw 7.5kw 11kw 15kw
Tension control method Magnetic powder clutch+PLC+touchscreen,ensure the constant tension from empty to full bobbin
Magnetic powder clutch 1.2kgf 5kgf 10kgf 10kgf
Protection 1.wire inside and outside is broken,automatically brake/stop
2.The preset length is arrived
Brake mode Electromagnetic brake
Traversing method Rolling wire with ring drive units,winding pitch and breadth are adjustable
Operation mode Touchscreen operation
Dimension(mm) 2680L*1250W*1500H 3300L*1550W*1800H 3400L*1600W*1800H 4600L*2000W*2000H

For more details, please feel free to contact me.
