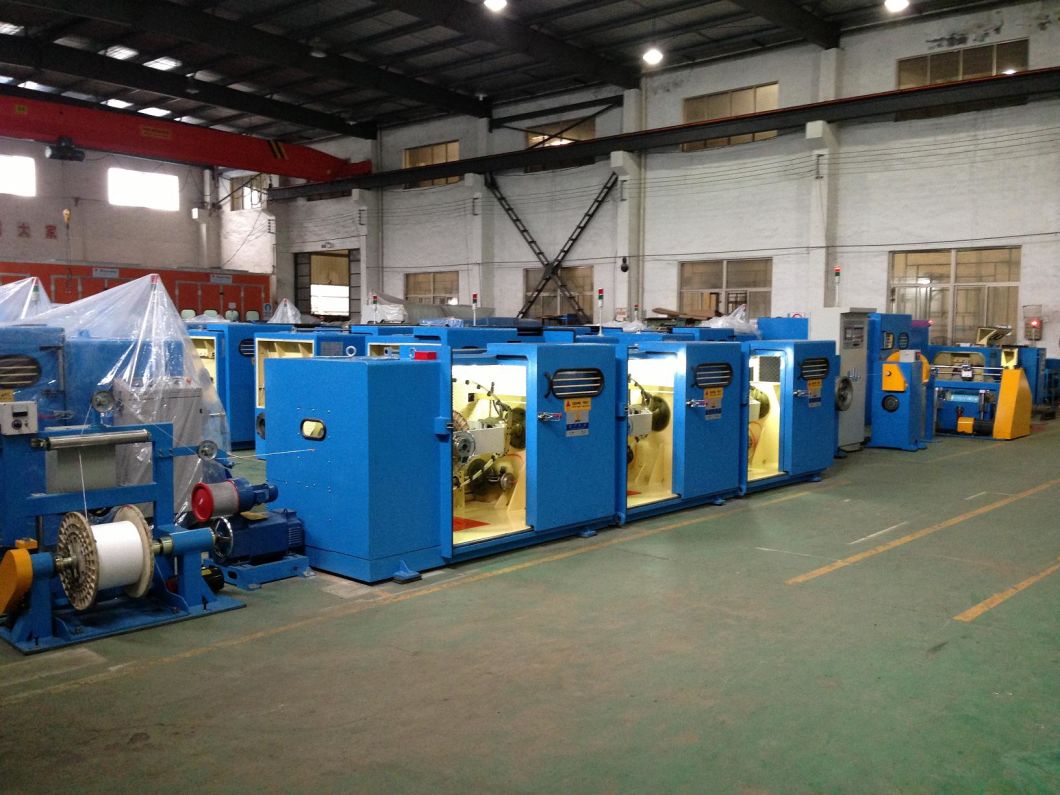

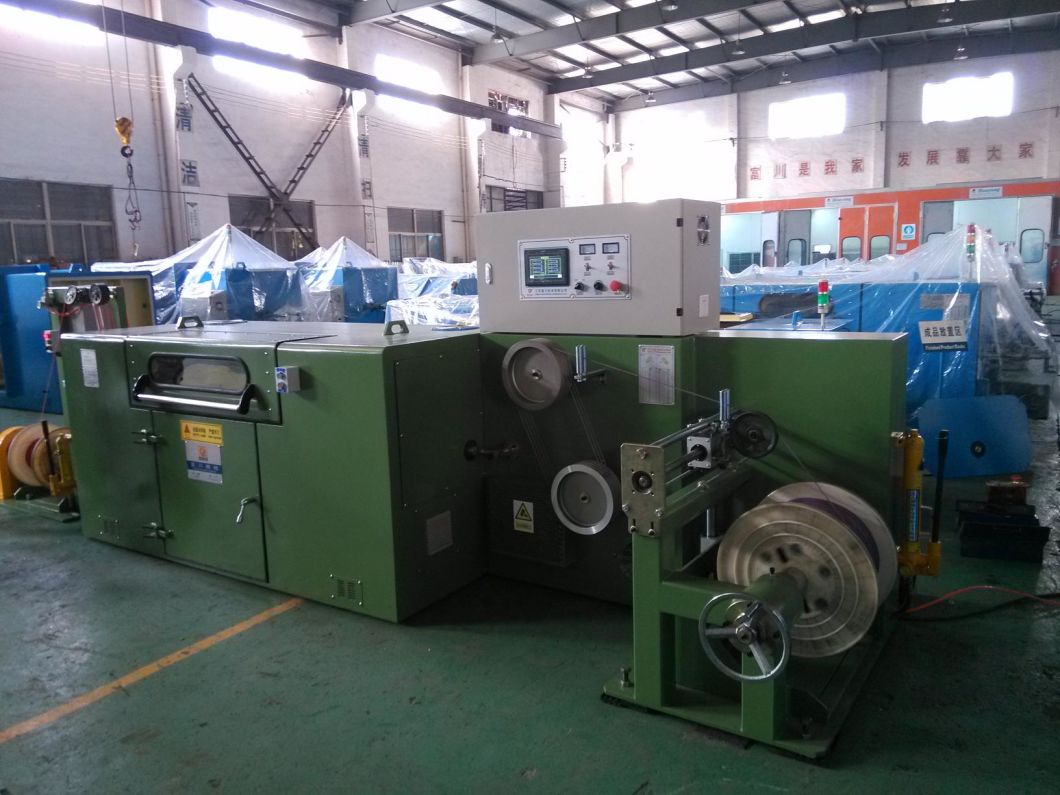

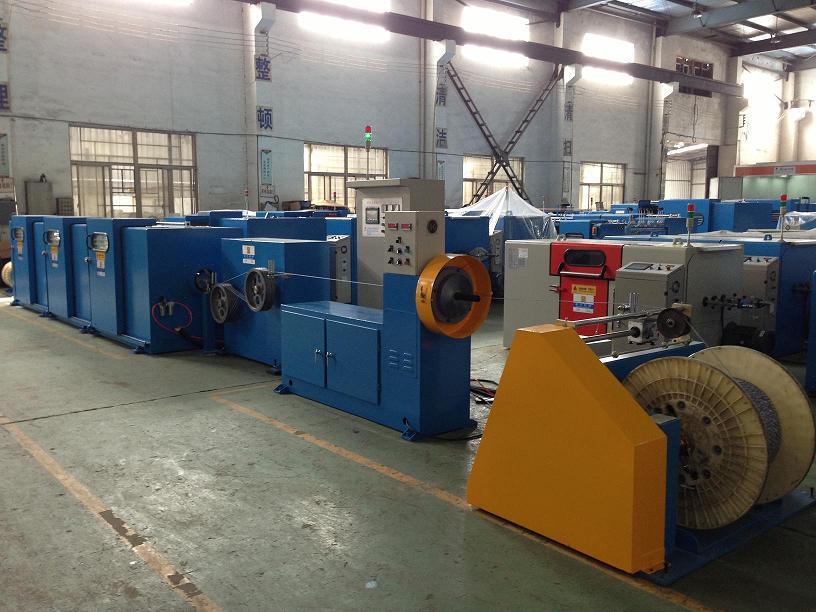

0.04-0.64mm Copper Cable Wire Bunchers Twisting Bunching Stranding Extrusion Annealer Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
>1,000,000 Shots
Series for on-twist double twist machine
Characteristics:
Apply for high frequency data cable, Lan cable(cat6 cable).Non twist after double twisting, make the insulated core wire interlace uniformly, avoid the nonuniform twist force, thus make the finished wire with the uniform, precision pitch. This machine is adopted for the high speed data wire&cable(contain the USB2.0,USB3.0,CATE-6E,HDMI and other wire),combined the functions and merits of no-twist stranding machine and high speed wrapping machine. The two machine can operate separately and simultaneously. Device structure: active pay off, no-twist stranding machine, high frequency spark tester, wrapping machine, take up and other parts.Equipment models FC-300E FC-400E FC-500E FC-630E Usage Apply for producing the high frequency data cable, Lan cable(cat6 cable),USB2.0,USB3.0,Cate-6e,Cate-7e,HDMI and other high speed data cable. Core wire single wire dia 0.5-1.5 0.5-2.0 1.0-4.0 2.0-5.0 Core wire stranding outer dia 1.0-3.0 1.0-4.0 2.0-8.0 4.0-10.0 Pitch(mm) 5-50(24zones) 10-90(24zones) 15-120(34zones) 20-160(24zones) Direction of lay Optional for right or left Outer dia*bore*outer width 300*30*160 400*56*300 500*56*300
630*56*475
Outer pay off type active pay off Inner pay off type magnetic tension pay off take up bobbin(mm) 300*30*160 500*56*375 630*56*475
800*80*600
Max rotating speed 2500(5000twist) 2500(5000twist) 2000(4000twist) 1500(3000twist) pay off motor power 0.75KW 1.5KW 1.5KW 2.2KW main motor power 3.7KW 5.5KW 5.5KW 7.5KW Tension control method Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin Inner magnetic powder clutch 0.6kgf 1.2kgf 2.5kgf 5kgf take up magnetic clutch 2.5kgf 5kgf 5kgf 10kgf Brake mode Electromagnetic brake Traversing method Rolling ring drive units, winding pitch and breadth are adjustable Operation mode Touch screen operation
