0.03-1.72mm Copper Core Cable Wire Twisting Bunching Stranding Extrusion Winding Machinery Price Making High Quality China Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • 12months

  • Electric

  • New

  • ISO, CE

  • 12 Months

  • Automatic

The technology of this machine is brought from Japan and put in production in Jiangsu.
Series for Model-B normal wire high speed bunching machine & double twisting machine
Merits: With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire.The machine is driven by synchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate.

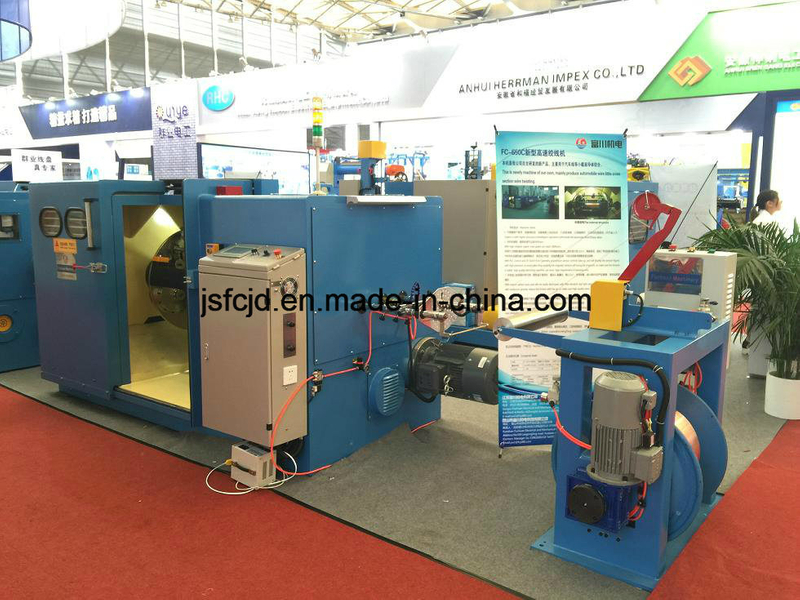

Equipment model:FC-650C
Twisting usage:It is applied to the twisting of above 7 pcs of bare copper wire,tinned wires,silver jacketed wires and enamelled wire and double twisting for core wires.


0.03-1.72mm Copper Core Cable Wire Twisting Bunching Stranding Extrusion Winding Machinery Price Making High Quality China Machine
The technology of this machine is brought from Japan and put in production in Jiangsu.
Series for Model-B normal wire high speed bunching machine & double twisting machine
Merits: With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire.The machine is driven by synchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate.





Equipment Model FC-500B FC-650B FC-650C FC-800B
Usage It is applied to the twisting of above 7pcs of bare copper wires,tinned wires,silver jacketed wires and enameled wires and double twisting for core wires.
Single Wire Dia(mm) Φ0.08~0.45 Φ0.15~1.04 Φ0.12~0.52 Φ0.38~1.7
Stranding Section Area(mm²) 0.05~2.5 0.35~6.0 0.30~4.0 1.0~16
Core Wire Single Wire Dia(mm) Φ0.5~1.5 Φ0.5~3.0 Φ0.5~2.0 Φ1.0~4.0
Core Wire Stranding Outer Dia(mm) Φ1.0~3.0 Φ1.0~6.0 Φ1.0~4.0 Φ2.0~8.0
Pitch(mm) 6.3-52.3(24pcs pitch) 11.6-100(34pcs pitch) 11.6-100(34pcs pitch) 23-147(20pcs pitch)
Direction of Lay optional for right or left
Take-up Bobbin(mm) Φ500*Φ56*375/Φ500*Φ127*375 Φ630*Φ56*475/Φ630*Φ127*475 Φ630*Φ56*475/Φ630*Φ127*475 Φ800*φ80*600
Max Rotating Speed(rpm) 3000(6000twist) 2000(4000twist) 2400(4800twist) 1500(3000twist)
Main Motor Power 5.5KW 7.5KW 11KW 15KW
Inverter Power 5.5KW 7.5KW 11KW 15KW
Tension Control Method Touch screen+PLC+magnetic powder clutch,it may ensure the constant tension from empty bobbin to full bobbin.
Magnetic Powder Clutch 1.2kgf 5kgf 2.5kgf 10kgf
Protection Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived.
Brake Mode Electromagnetic Brake
Traversing Method Rolling ring drive units, winding pitch and breadth are adjustable.
Operation Mode Touch Screen Operation
Dimension(mm) 2680L*1250W*1500H 3300L*1550W*1800H 3300L*1550W*1800H 4600L*2000W*2000H
