Availability: | |
---|---|
0.16 to 0.64
0.38 to 6.0
Touch Screen+PLC+Magnetic Powder Clutch
Customized
10000L 2500W 1650H mm
FUCHUAN
Quick Details:
Series for 1+6+12 bunching machine 19pcs copper wires φ0.16mm - φ0.64mm in one time
a. It is Fuchuan latest developed machine
b. This machine replace the model 200 tube bunching machine with the high productivity(It is 4.5times than tube machine for the 1+6+12 conductors normal bunching)
c. low power, small floor place, low noise and other merits.
Characteristics:
A. New arrival, instead of 200 tube bunching machine, have high productivity(4.5times than normal tube machine for regular 1+6+12 conductors ),
B. Energy-saving, small size, low noise, etc.
Series for 1+6+12 bunching machine | ||
Characteristics:: New arrival, instead of 200 tube bunching machine, have high productivity(4.5times than normal tube machine for regular 1+6+12 conductors ),energy-saving, small size, low noise, etc. | ||
Equipment models | 1+6+12(200 and 250bobbin) | 1+6+12(630bobbin) |
Twisting usage | Apply for bunching 19pcs copper wires synchronous | |
Single wire dia(mm) | 0.16~0.64 | |
Stranding section area (mm²) | 0.38~6.0 | |
Pitch(mm) | 11.6-100(34classes) | |
Direction of lay | Free to right or left | |

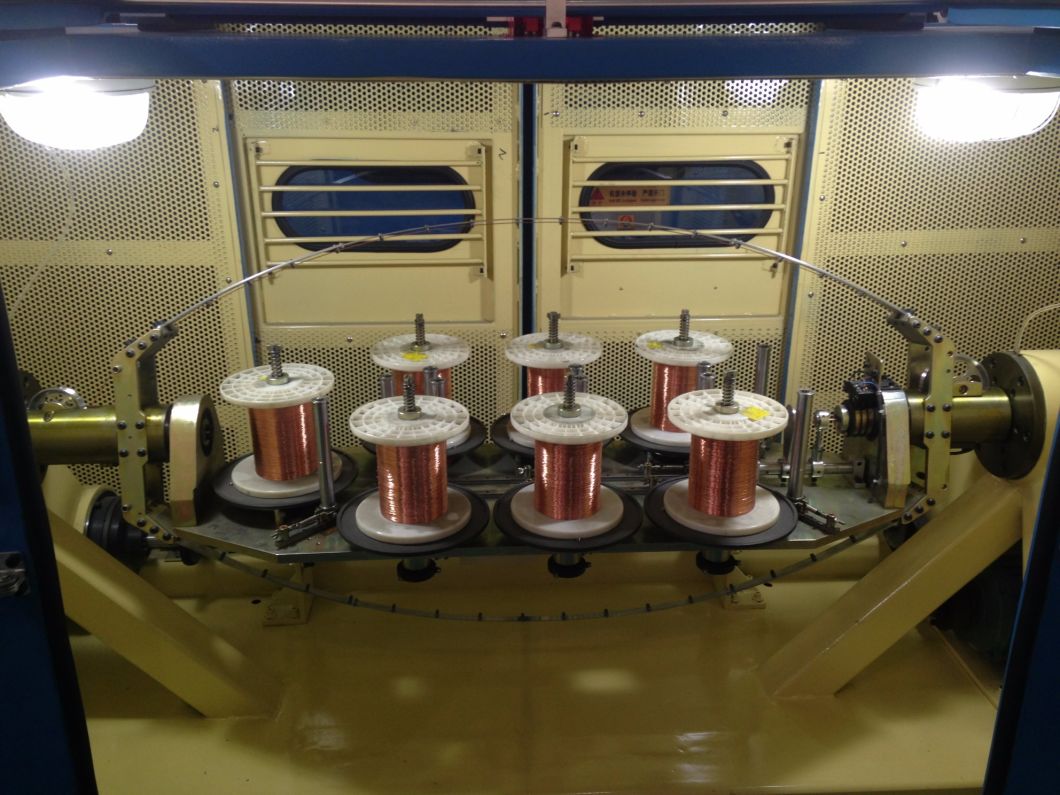

Pay-off bobbin size | 8inch,9inch | OD630 ID125 H475 |
Pay-off type | Mechanical friction | Magnetic powder tension |
Take-up bobbin size | OD630 ID127 H475 or OD630 ID56 H475 (Customized) | OD630 ID127 H475 or OD630 ID56 H475 (Customized) |
Max rotating speed | 2000rpm(4000twist) | 2000rpm(4000twist) |
Pay-off machine power | 5.5KW | 7.5KW |
Pay-off Inverter Power | 7.5KW | 7.5KW |
Take-up motor power | 7.5KW | 7.5KW |
Take-up Inverter Power | 7.5KW | 7.5KW |
Tension control | Touch screen+PLC+magnetic powder clutch, ensure the constant tension from empty to full bobbin | |
Magnetic powder clutch | 5kgf | 5kgf |
Protection | automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived | |
Brake mode | Electromagnetic brake | |
Traversing method | Rolling wire with ring drive units, winding pitch and breadth are adjustable | |
Operation | Touch screen | |
Dimension(mm) | 10000L 2500W 1650H | 10000L 2500W 1650H |
