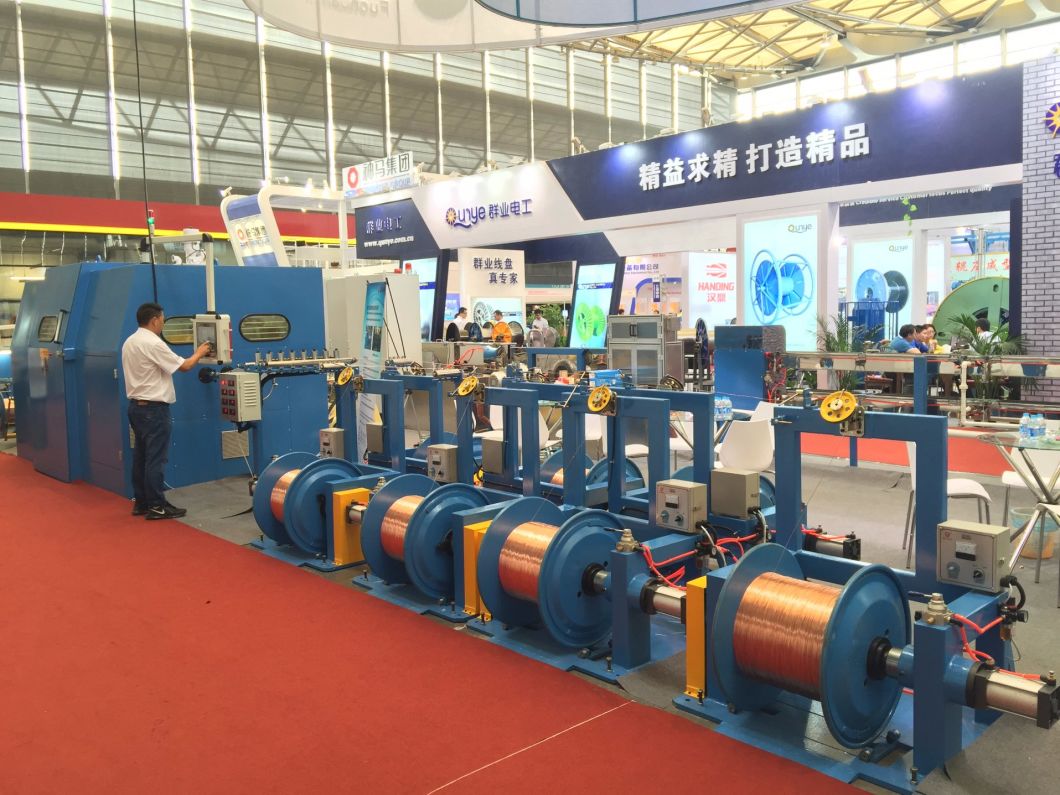

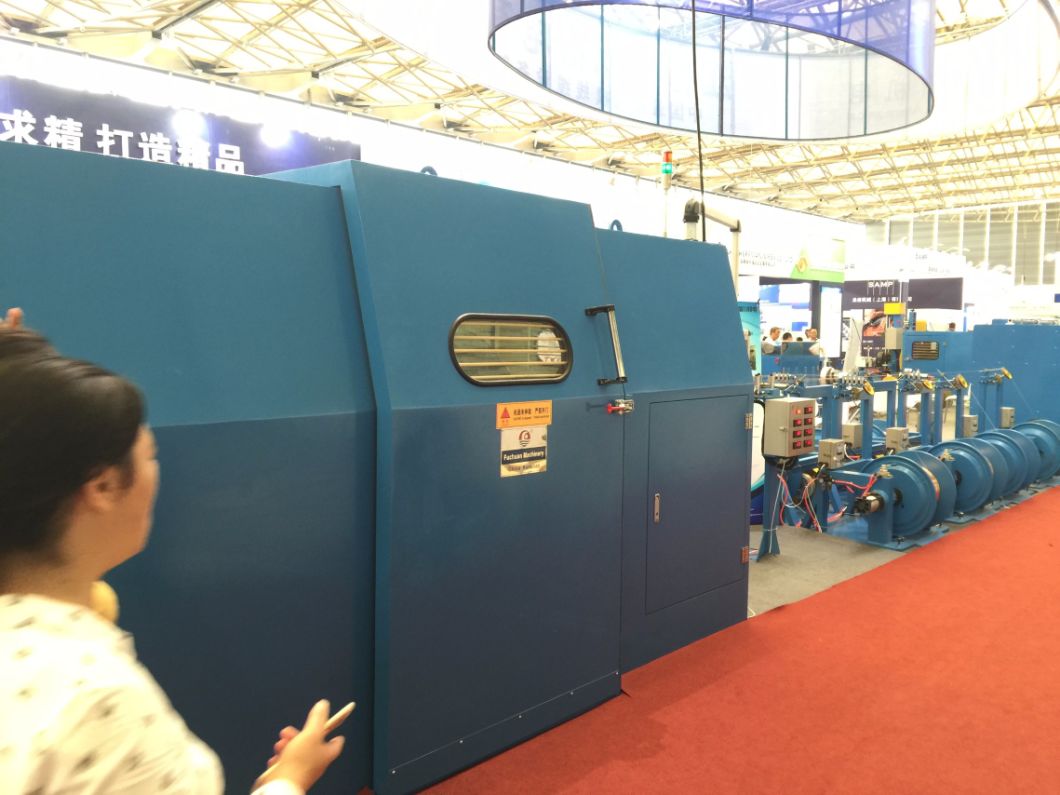

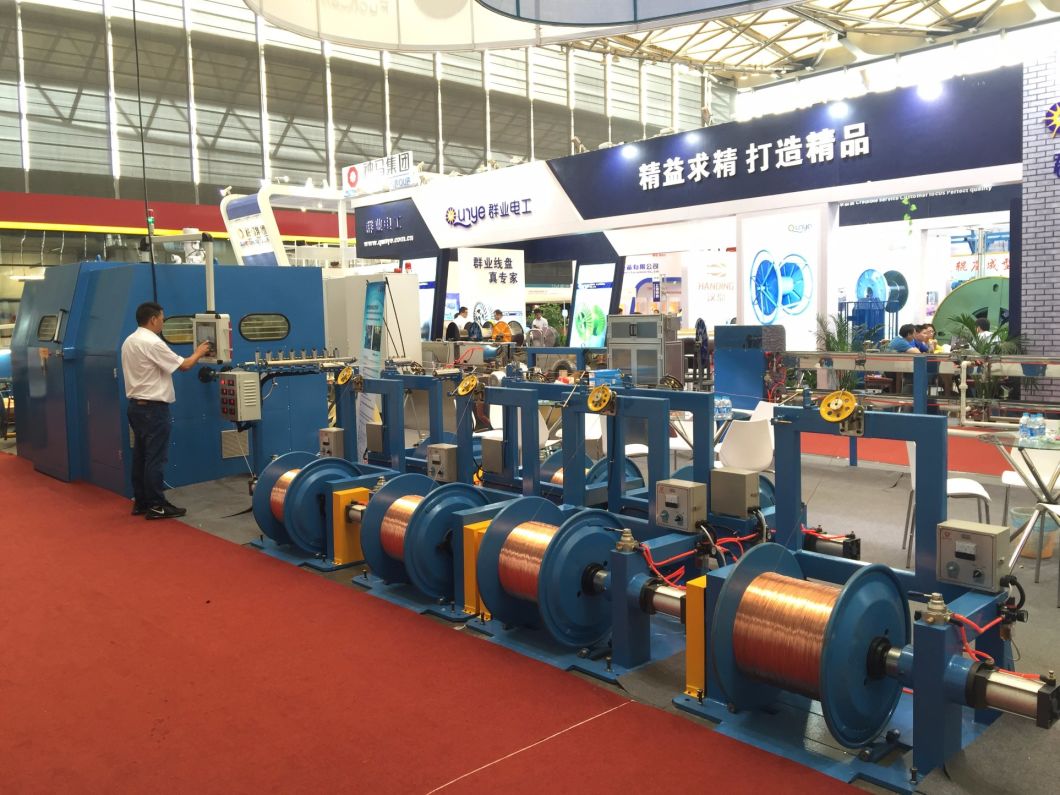

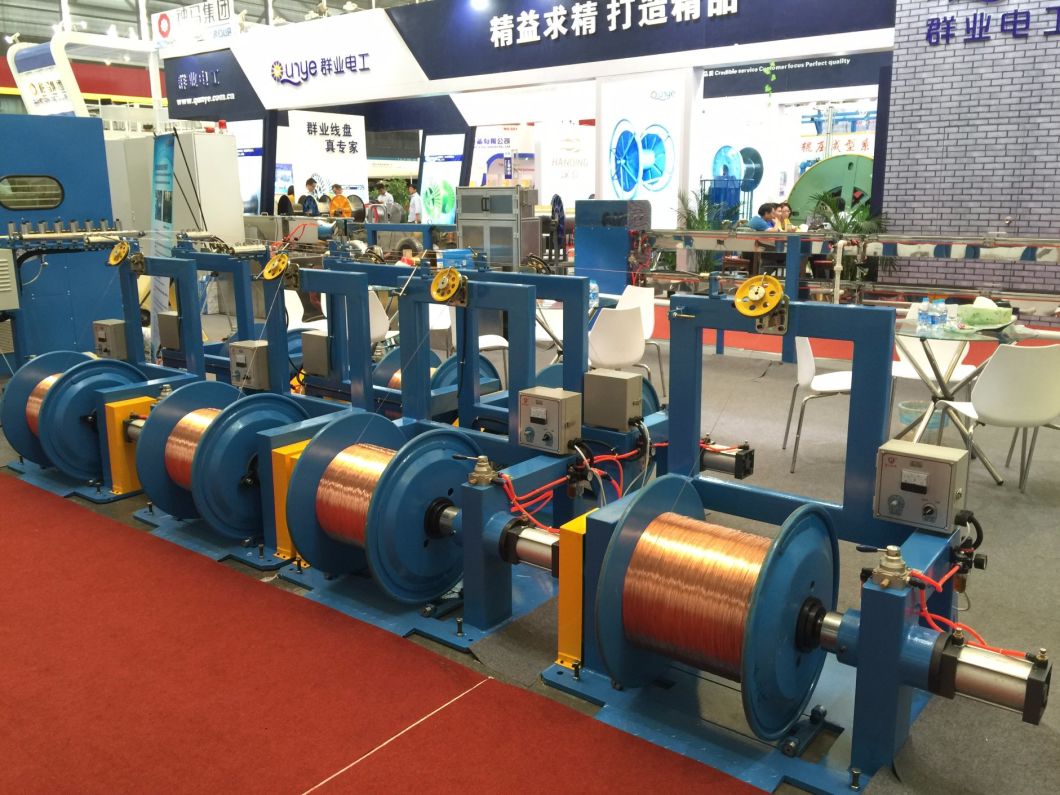

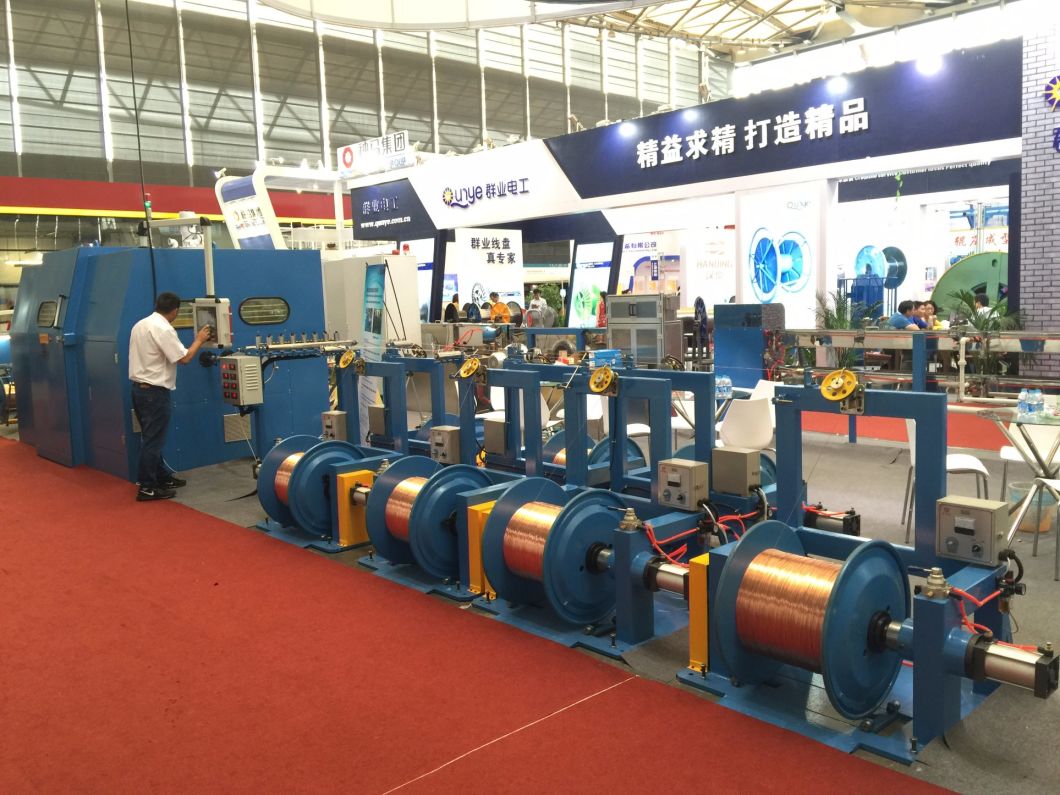

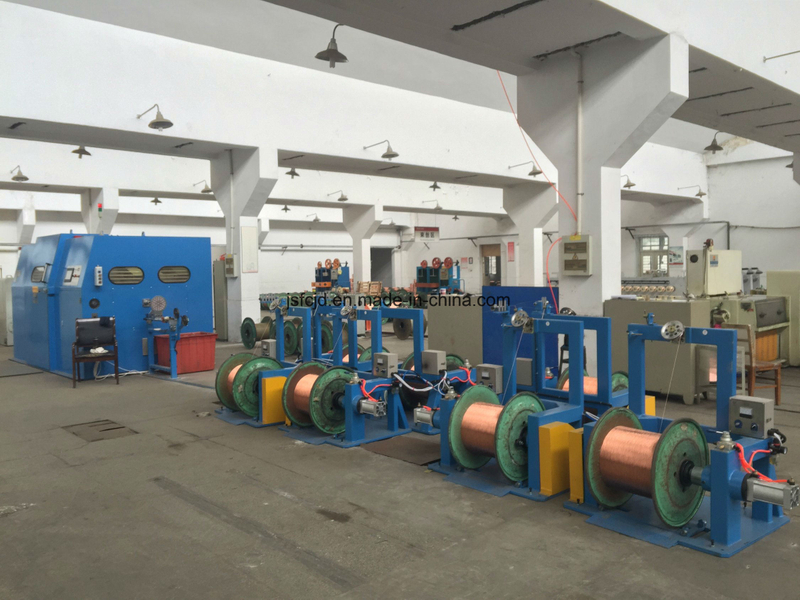

0.05-2.52mm Electrical Cable Copper Wire Double Twisting Buncher Making Bunching Stranding Drawing Machine
0.05-2.52mm Electrical Cable Copper Wire Double Twisting Buncher Making Bunching Stranding Drawing Machine
0.05-2.52mm Electrical Cable Copper Wire Double Twisting Buncher Making Bunching Stranding Drawing Machine
0.05-2.52mm Electrical Cable Copper Wire Double Twisting Buncher Making Bunching Stranding Drawing Machine
0.05-2.52mm Electrical Cable Copper Wire Double Twisting Buncher Making Bunching Stranding Drawing Machine

Series for Model B large wire high speed bunching machine

Main performance parameters of FC-800B double twist bunching machine (replace of the capstan wheel to change the lay length).
  1. Usage: It is applied to the stranding of bare twisted wire, tinned, copper covered aluminum, lacquer wire and alloy wire. 1+6 may twist instead of bunching.
2.Diameter of single copper wire : φ0.201.7mm
Outer diameter of twisted copper wire: φ1.0~φ5.5mm;
4.Cross section area: φ1.0~φ16mm2
5.Size of take up spool: φ800mm×600mm×φ80mm(according to client's drawings to make).
6. Maximum rotating speed:1500rpm(3000twist/min),normal speed 1400RPM.
7.Type of traverse:φ40mm rolling ring traverse, winding pitch and breadth are adjustable.
8. Standard lay length: 48~120mm (enclose list of standard lay length).
9. Main motor: 15KW AC motor +frequency converter
10. Weight of copper load: about 800kg
11. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate.
12. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter.
13. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension ,constant tension.
14. Drive bearing: it is adopted imported Japan bearing.
15. Synchronization strap: it is adopted imported American product.
16. Spool from top to bottom: it is adopted electric hydraulic landing.
17. Way of spindle lubrication: butter lubrication.(oil adding automatically by PLC)
18. Index of noise: about 80dB
19.Dimension: (L×W×H): 3200×2000×1730mm
20. Weight: 5500Kg


1. Characters:
With high rotation speed, the main shaft counts the meters, the same machine twist with the same type to line, and the tolerance is only 0.0001%, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate. 1 + 6 soft copper conductor winding complex can be substituted for the tube ground machine, linear velocity is speed tube with two times, the ground machine core wires into power cable can instead of single twist into a cable machine, linear velocity is single twist with speed into a cable machine twice.

2. Application:
It is applied to the twisting of above 7 PCS of bare copper wires, tinned wires, silver jacketed wires and enamelled wire and double twisting for core wires.

3. Technical parameters:

For more details, please contact me.
The technology of this machine is brought from Japan and put in production in Jiangsu.
Series for Model-B big wire high speed bunching machine
Merits: It is the latest developed machine. this machine replace the traditional Model 400 tube bunching machine With the high productivity( it is 4.5times than tube machine for the 1+6 conductors normal bunching ),low power, small floor place, low noise and other merits.
Model FC-1000B FC-1250B FC-1600B
Usage It is applied to the twisting of above 7 pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires and double twisting for core wires.
Single Wire Dia(mm) Φ0.3~1.7 Φ0.5~2.14 Φ0.5~2.52
Stranding Section Area(mm²) 6.0~35.0 10.0~50.0 16.0~95.0
Core Wire Single Wire Dia(mm) Φ2.0~5.0 Φ3.0~8.0 Φ3.0~10
Core Wire Stranding Outer Dia(mm) Φ4.0~10.0 Φ6.0~16.0 Φ8.0~20.0
Pitch(mm) 35-200(12sections) 50-250(12sections) 80-350(12sections)
Direction of Lay optional for right or left
Take-up Bobbin(mm) Φ1000*Φ80*750 Φ1250*Φ80*950 Φ1600*Φ80*1180
Max Rotating Speed(rpm) 1000(2000twist) 800(1600twist) 600(1200twist)
Main Motor Power 18.5KW 22KW 30KW

Inverter Power
18.5KW 22KW 30KW
Tension Control Method Touch screen+PLC+magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin.
Magnetic Powder Clutch 20kgf 20kgf 40kgf
Protection Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived.
Brake Mode Electromagnetic Brake
Traversing Method Rolling ring drive units, winding pitch and breadth are adjustable.
Operation Mode Touch Screen Operation
Dimension(mm) 4000L*2200W*2100H 4500L*2600W*2500H 5000L*3000W*3000H
