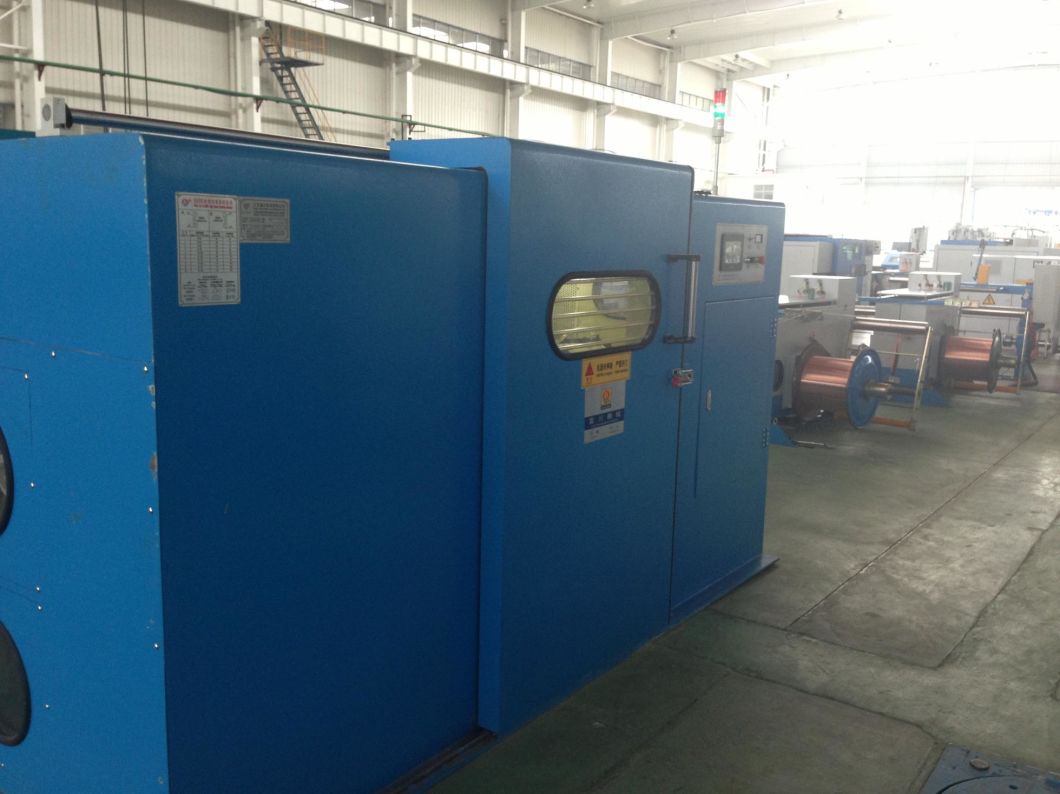

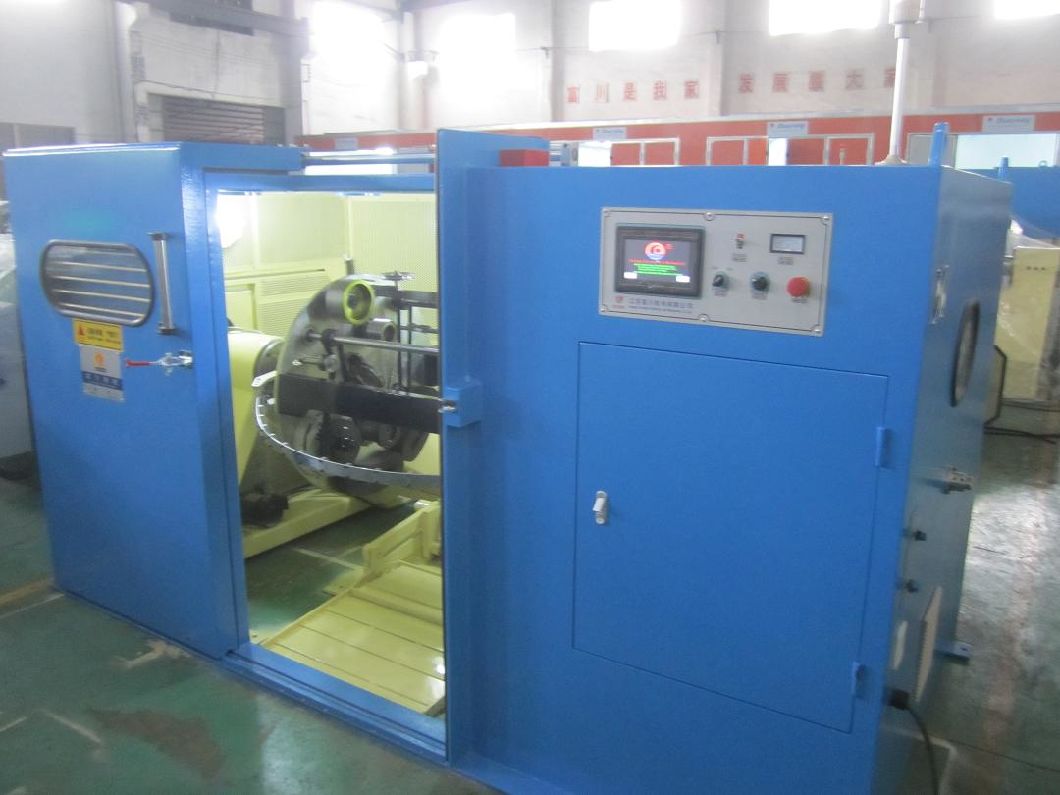

0.05-1.72mm Bare Copper Wire and Plastic Cable Wire Twisting Bunching Stranding Winding Buncher Drawing Machine
-
12months
-
0.38-1.7mm
-
1.0-4.0mm
-
23-147(20sections)
-
15kw
-
15kw
The technology of this machine is brought from Japan and put in production in JiangSu.
Merits: With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire. The machine is driven by synchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate.
Equipment models: FC-800B
Twisting usage: It is applied to the twisting of above 7 pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires and double twisting for core wires.
Single wire dia(mm): φ0.38-φ1.7mm
Stranding section area(mm2) : 1.0-16
Core wire single wire dia(mm) : φ1.0 -φ4.0 mm
Core wire stranding outer dia(mm) : φ2.0 -φ8.0 mm
Pitch(mm): 23-147 (20sections)
Direction of lay: Optional for right or left
Take up bobbin: φ800*φ80*600
Max rotating speed: 1500(3000twist)
Main motor power: 15KW
Inverter power : 15KW
Tension control method: touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin.
Magnetic powder clutch: 10kgf
Protection: Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode: Electromagnetic brake
Traversing method: Rolling ring drive units, winding pitch and breadth are adjustable.
Operation mode: Touch screen operation
Dimension: 4600L*2000W*2000H
