0.03-0.64mm Copper Cable Wire Buncher Twisting Winding Bunching Stranding Extrusion Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • New

  • ISO, ISO2001

  • 12 Months

  • Automatic

  • Diameter 0.03-0.18mm

  • 7PCS of Bare Copper Wire, Tinned Wires, Enamelled

0.03-0.64mm Copper Cable Wire Buncher Twisting Winding Bunching Stranding Extrusion Machine
0.03-0.64mm Copper Cable Wire Buncher Twisting Winding Bunching Stranding Extrusion Machine
0.03-0.64mm Copper Cable Wire Buncher Twisting Winding Bunching Stranding Extrusion Machine
0.03-0.64mm Copper Cable Wire Buncher Twisting Winding Bunching Stranding Extrusion Machine
0.03-0.64mm Copper Cable Wire Buncher Twisting Winding Bunching Stranding Extrusion Machine
0.03-0.64mm Copper Cable Wire Buncher Twisting Winding Bunching Stranding Extrusion Machine

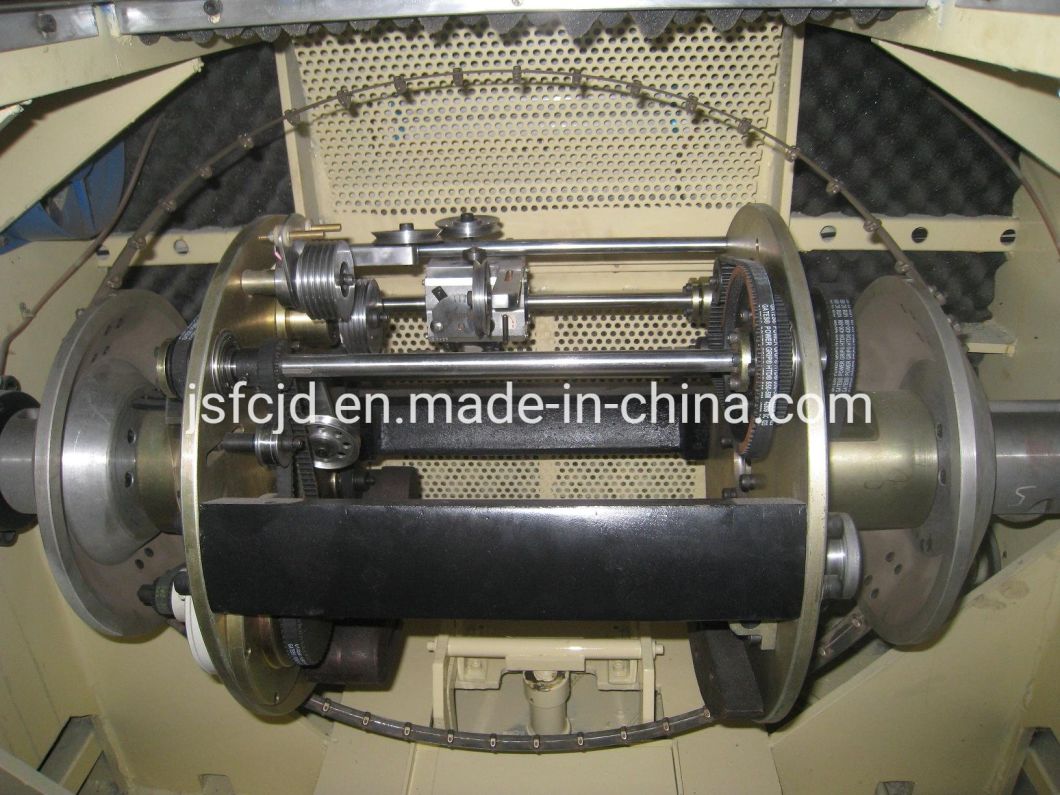

Ultra fine wire high speed twisting machine
1. Charaters:
With high rotation speed, with the main shaft counts the meters, the same machine twist the types of the same line, and the tolerance is only 0.0001%. With constant tension from empty bobbin to full bobbin, with superior quality for twist wire, it can realize bunching instead of twisting to match up FC-100 active back-twist pay-off machine. And meet requirements of customer to twist wire of small crossection area. The machine is driven by synchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate.

2. Application:
It is applied to the bunching of aerospace, medical equipment, cellphone and ultra conductor(above 7 PCS of bare copper wires, tinned wires, silver jacketed wires and enamelled wires).
Equipment Model FC-200B FC-250B FC-300B FC-400B
Usage It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above 7 pcs of bare copper wires,tinned wires, silver jacketed wires and enamelled wires),double twisting for core wires.
Single Wire Dia(mm) Φ0.016~0.08 Φ0.03~0.18 Φ0.05~0.28 Φ0.05~0.32
Stranding Section Area(mm²) 0.0014~0.035 0.0049~0.3 0.0137~0.45 0.0137~1.0
Pitch(mm) 0.8-4.0(14pcs pitch) 0.8-10.8(24pcs pitch) 1.6-21.6(24pcs pitch) 3.1~33.3(24pcs pitch)
Direction of Lay optional for right or left
Take-up Bobbin(mm) Φ200*Φ31*135 Φ250*Φ30*185 Φ250*Φ30*185 Φ300*Φ30*185 Φ300*Φ30*185 Φ400*Φ56*300
Max Rotating Speed(rpm) 5000(10000twist) 4000(8000twist) 3500(7000twist) 3500(7000twist)
Main Motor Power 2.2KW 3.7KW 3.7KW 3.7KW
Inverter Power 2.2KW 3.7KW 3.7KW 3.7KW
Tension Control Method touch screen+PLC+magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin.
Magnetic Powder Clutch 0.05kgf 0.3kgf 0.6kgf 0.6kgf
Protection Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived.
Brake Mode Electromagnetic Brake
Traversing Method Rolling ring drive units, winding pitch and breadth are adjustable.
Operation Mode Touch Screen Operation
Dimension(mm) 2000L*960W*1100H 2300L*1100W*1330H 2300L*1100W*1330H 2850L×1150W×1350H
