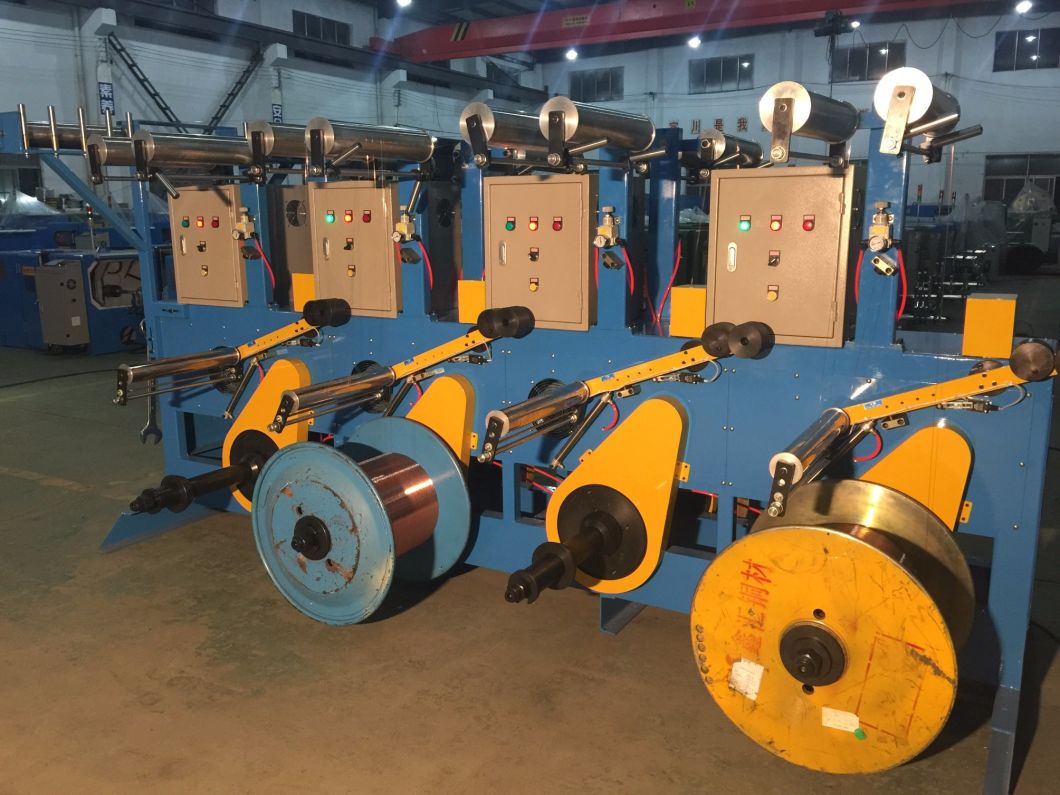

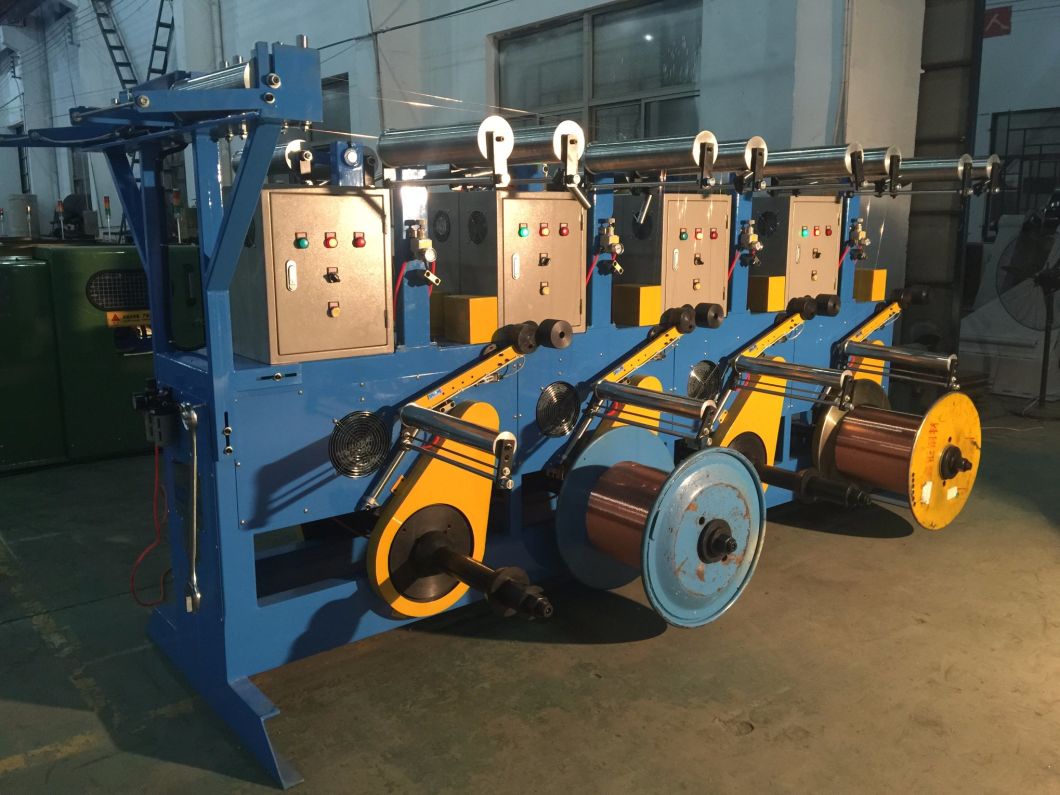

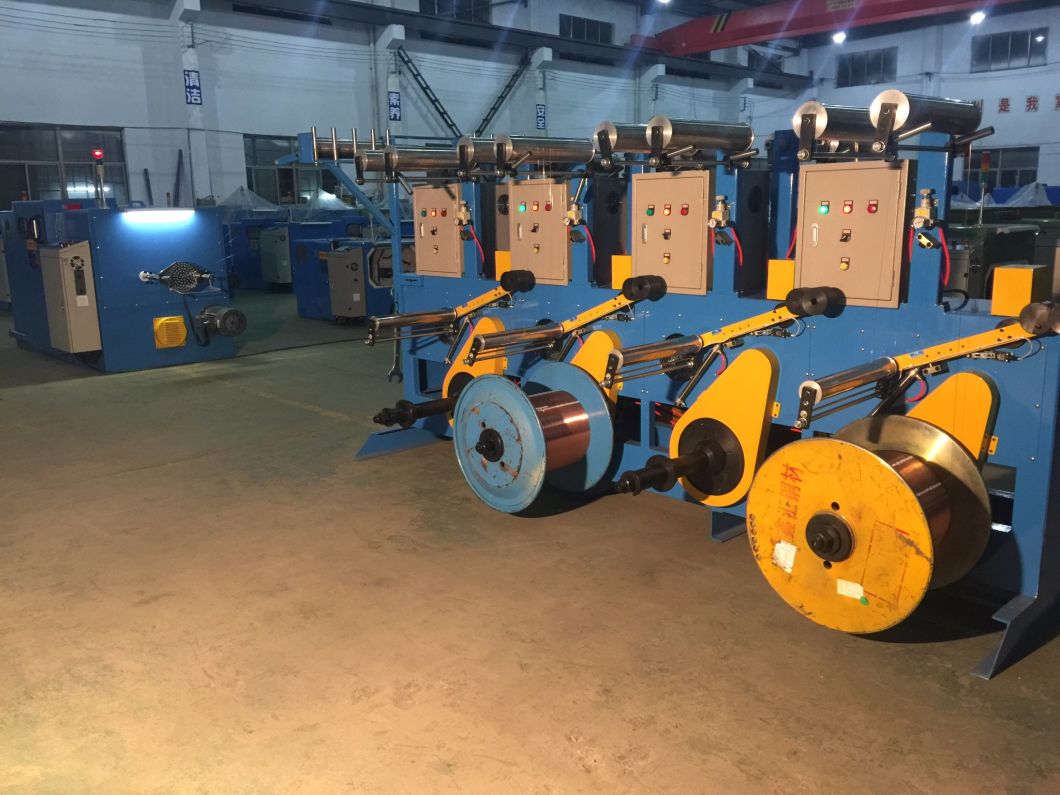

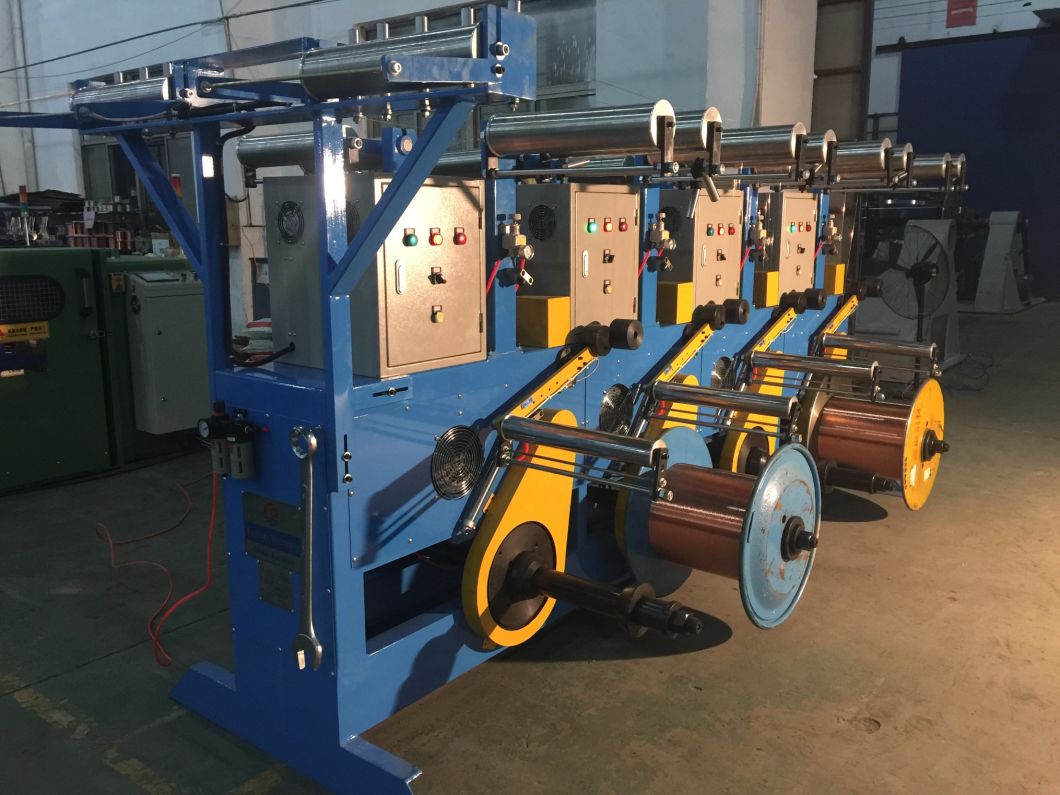

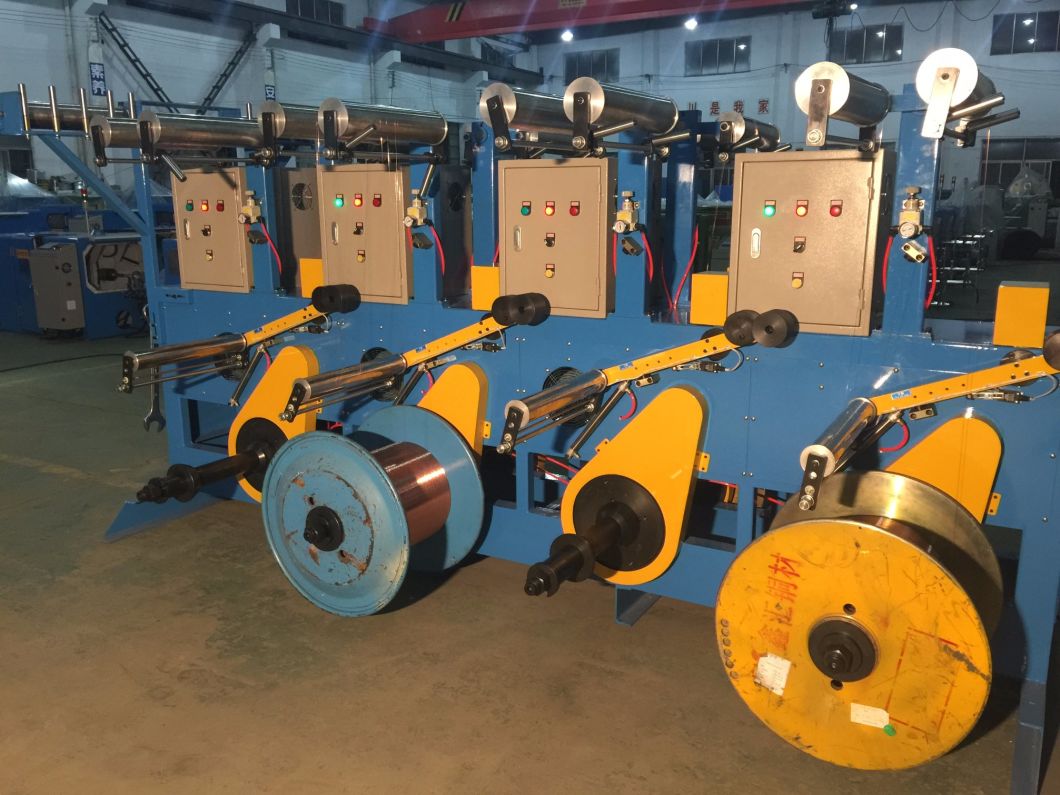

FC-630 Double Shaft Multiple Drawing Bobbins Active Pay-off Machine performance parameters: The pay-off stand is constant tension, no reverse the pay-off double disk, can be used for single pay-off equipment pay-off, also can be used for drawing wire harness, and two dish line not interfere with each other, independent, pay-off, easy to operate, can efficiently save covers an area of space. 1. Put/size range: φ 0.08-0.5 mm; 2. The biggest MAX200m/min, the linear; 3. The pay-off plate size: Outside diameter φ 630 * hole φ 125 * 475 * in the wide width of 400 mm; 4. Tension adjustment: In the swinging rod are installed on cylinder, but through the governing valve adjusting cylinder pressure to change the pay-off tension, also can use a heavy hammer adjust tension; 5. The driver: The wire disc by belt brake 1.5 KW three-phase frequency conversion motor driven by special synchronous belt; The inverter control the motor. 6. Brake: Motor internal disc springs pads action, brakes motor; 7. Adjustable speed: By the sensor signal transmission swinging rod to control the speed of frequency converter, pay-off and host (such as stranding machine) to keep the same; 8. The wire disc loading and unloading: Use the hydraulic forklifts (by advertisers) manual handling the wire disc; 9. Painting: Apple green(or paint according to the customers' require) 10. Weight: 600 kg
FC-630 Double Shaft Multiple Drawing Bobbins Active Pay-off Machine performance parameters: The pay-off stand is constant tension, no reverse the pay-off double disk, can be used for single pay-off equipment pay-off, also can be used for drawing wire harness, and two dish line not interfere with each other, independent, pay-off, easy to operate, can efficiently save covers an area of space. 1. Put/size range: φ 0.08-0.5 mm; 2. The biggest MAX200m/min, the linear; 3. The pay-off plate size: Outside diameter φ 630 * hole φ 125 * 475 * in the wide width of 400 mm; 4. Tension adjustment: In the swinging rod are installed on cylinder, but through the governing valve adjusting cylinder pressure to change the pay-off tension, also can use a heavy hammer adjust tension; 5. The driver: The wire disc by belt brake 1.5 KW three-phase frequency conversion motor driven by special synchronous belt; The inverter control the motor. 6. Brake: Motor internal disc springs pads action, brakes motor; 7. Adjustable speed: By the sensor signal transmission swinging rod to control the speed of frequency converter, pay-off and host (such as stranding machine) to keep the same; 8. The wire disc loading and unloading: Use the hydraulic forklifts (by advertisers) manual handling the wire disc; 9. Painting: Apple green(or paint according to the customers' require) 10. Weight: 600 kg
The company is a high-tech enterprise,specialize in design,development,manufacture,installation and debugging of wire and cable equipment. Products passed ISO9001:2008 quality management system certificate,and has the authorize of import and export.
