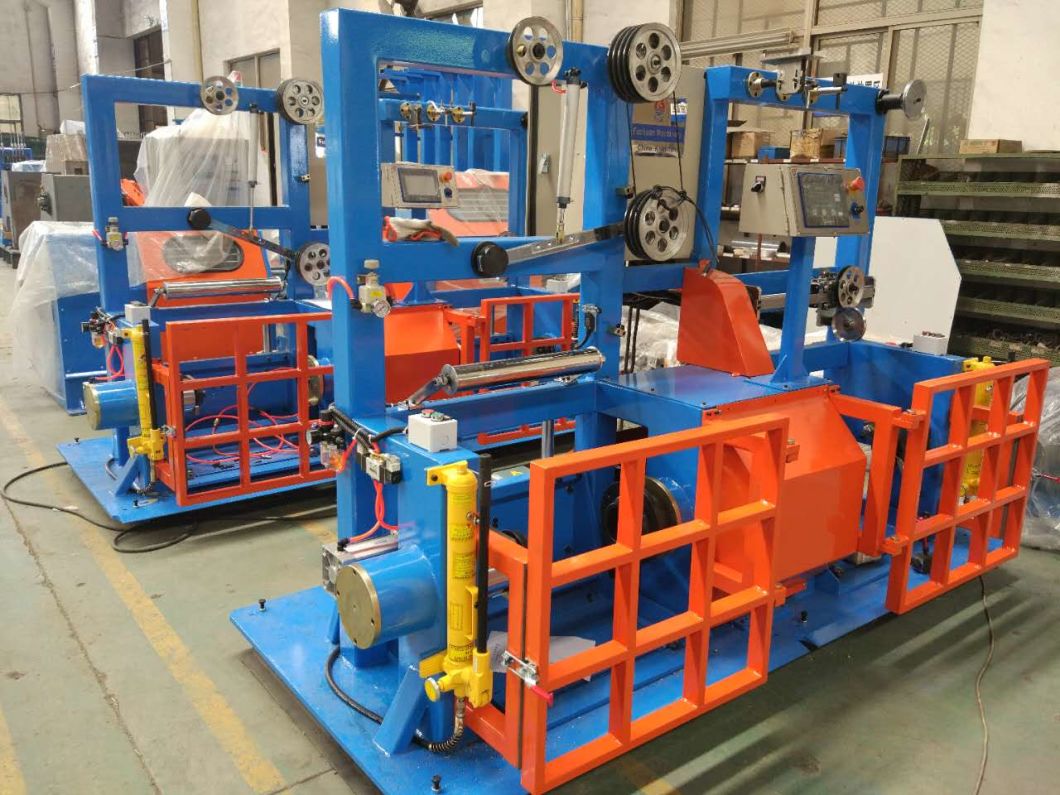

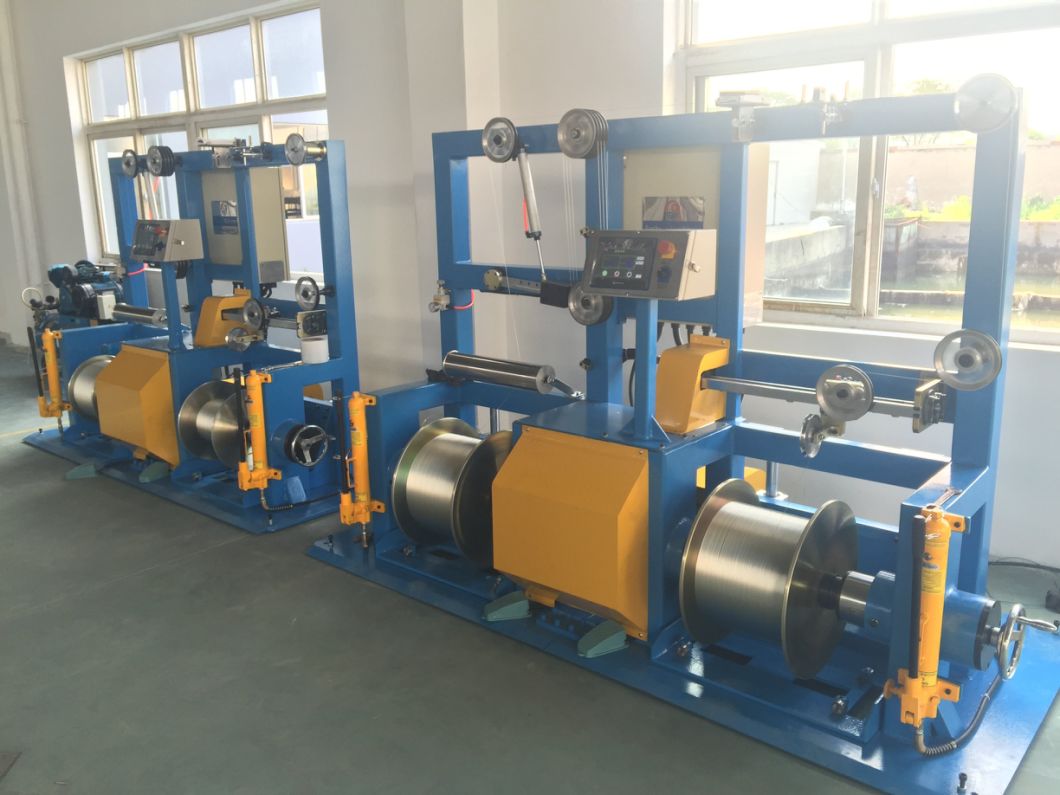

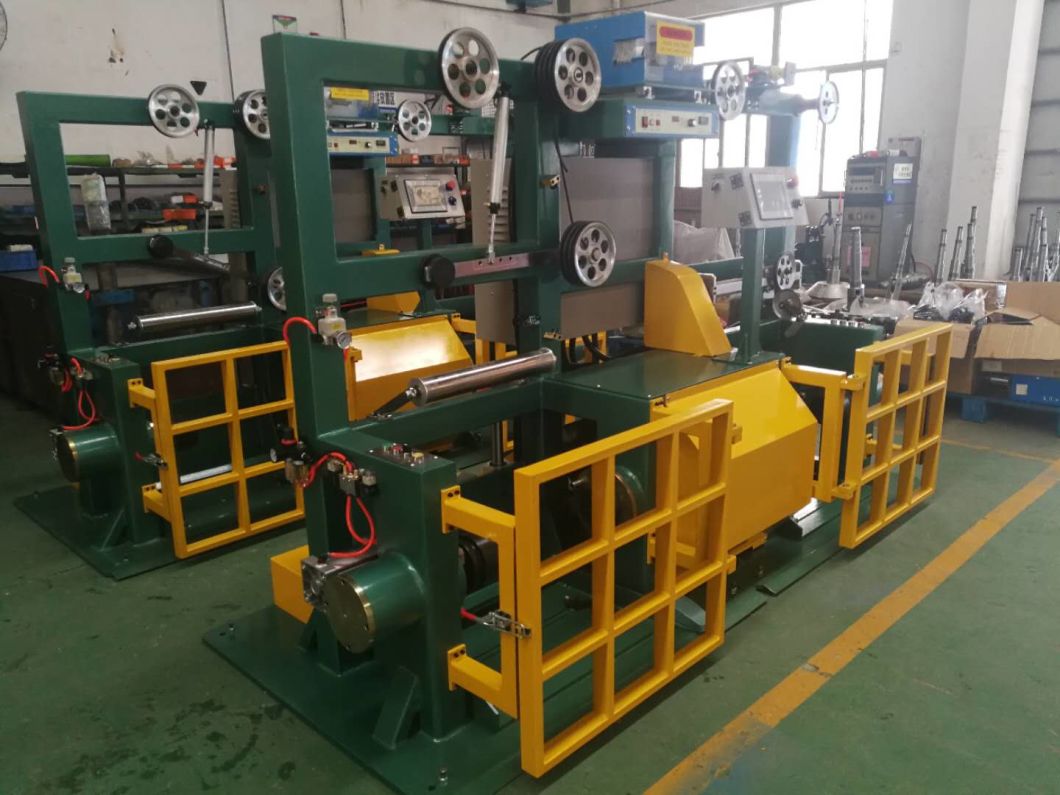

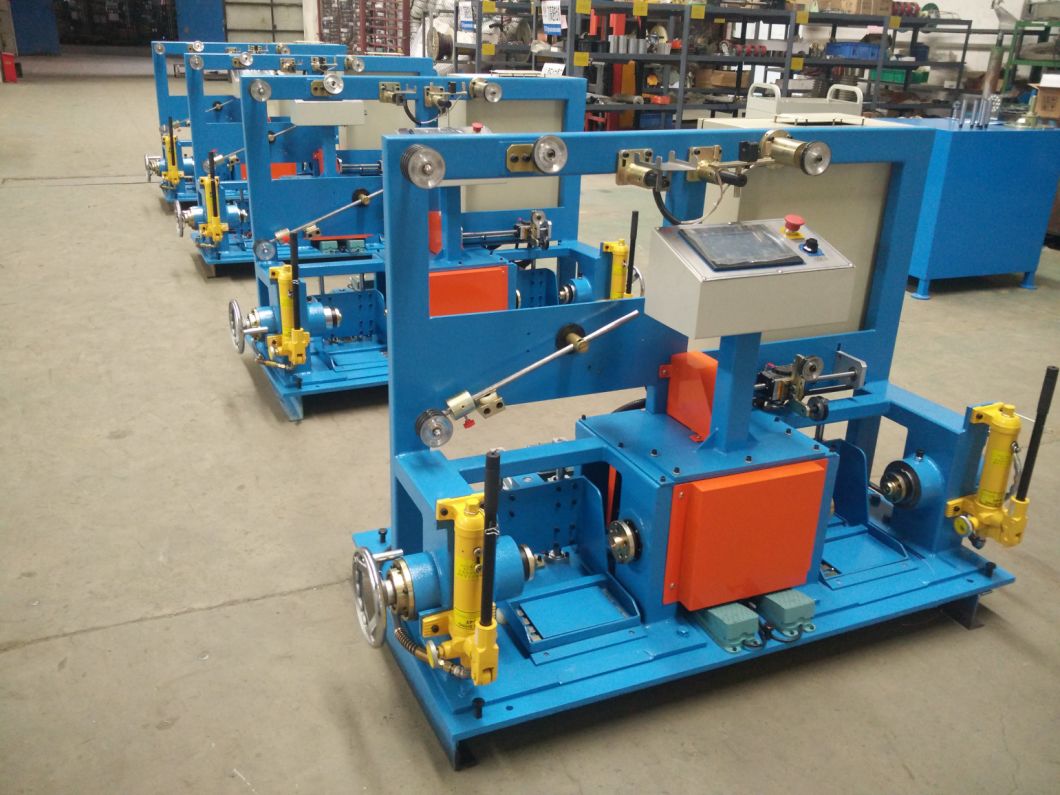

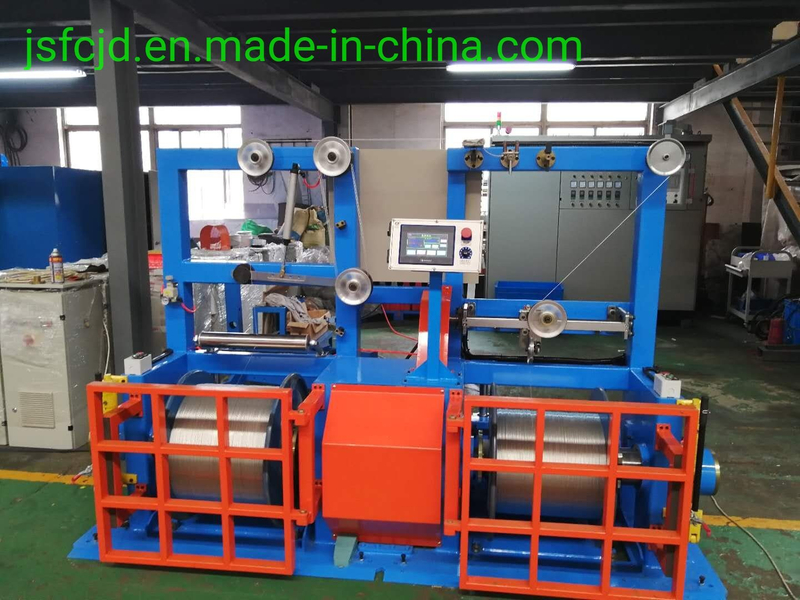

FC-630rewinding machine A.Machine parameters 1.Machine fit forφ0.4~3.5mm soft copper wire(twisted wire),electrical wire re-spool.It is one whole machine(pay off and take up),take little space,save area. 2.Touch screen operation,and PLC control pay off and take up with stable speed. 3.Linear speed: 50-250m/min 4.Operate direction:right hand machine(face the machine,left pay off and right take up) 5.Machine color:RAL5015 sky blue 6. Max specification:630mm bobbin 6sqmm wire. 7. With spark tester B.Detail setting of machine 1.FC-630 active pay off (1)Pay off bobbin:φ630-500mmbobbin(customer provide) (2)Tension control:swing type tension wire accumulator rack guidewheel(fixed four sets,movable three sets)upper and down(by displacement sensor)feedback signal to converter to control motor rotating speed,linkage with take up,keep the pay off tension stable and even;In swing fixed cylinder and counterweight parts,can adjust the pressure of the valve to change the pay off tension. (3)Bobbin locking:shaftless type,pneumatic locking(can choose by customer,and with anti-loose mechanism. (4)Lifting type:manual hydraulic lifting (5)Motive:2.2kW-6Pfrequency brake motor(SFC) (6)Converter:2.2KW Innovance converter 2.FC-630take up machine (1)Take up bobbin size:φ630-500mmbobbin (2)Traverse type:GP20 rod traverse,winding pitch and displacement is adjustable. (3)Bobbin locking:shaftless type,or pneumatic locking,and with anti-loose device. (4)Lifting type:manual hydraulic lifting. (5)Motive:2.2KW-6Pfrequency brake motor(SFC) (6)Converter:2.2KW Innovance (7)Simple electric meter counter device
FC-630rewinding machine A.Machine parameters 1.Machine fit forφ0.4~3.5mm soft copper wire(twisted wire),electrical wire re-spool.It is one whole machine(pay off and take up),take little space,save area. 2.Touch screen operation,and PLC control pay off and take up with stable speed. 3.Linear speed: 50-250m/min 4.Operate direction:right hand machine(face the machine,left pay off and right take up) 5.Machine color:RAL5015 sky blue 6. Max specification:630mm bobbin 6sqmm wire. 7. With spark tester B.Detail setting of machine 1.FC-630 active pay off (1)Pay off bobbin:φ630-500mmbobbin(customer provide) (2)Tension control:swing type tension wire accumulator rack guidewheel(fixed four sets,movable three sets)upper and down(by displacement sensor)feedback signal to converter to control motor rotating speed,linkage with take up,keep the pay off tension stable and even;In swing fixed cylinder and counterweight parts,can adjust the pressure of the valve to change the pay off tension. (3)Bobbin locking:shaftless type,pneumatic locking(can choose by customer,and with anti-loose mechanism. (4)Lifting type:manual hydraulic lifting (5)Motive:2.2kW-6Pfrequency brake motor(SFC) (6)Converter:2.2KW Innovance converter 2.FC-630take up machine (1)Take up bobbin size:φ630-500mmbobbin (2)Traverse type:GP20 rod traverse,winding pitch and displacement is adjustable. (3)Bobbin locking:shaftless type,or pneumatic locking,and with anti-loose device. (4)Lifting type:manual hydraulic lifting. (5)Motive:2.2KW-6Pfrequency brake motor(SFC) (6)Converter:2.2KW Innovance (7)Simple electric meter counter device
The company is a high-tech enterprise,specialize in design,development,manufacture,installation and debugging of wire and cable equipment. Products passed ISO9001:2008 quality management system certificate,and has the authorize of import and export.
