Availability: | |
---|---|
12months
12month
Copper Wire and Alloy Wire Annealing Tinning
0.03-0.08
0.016-0.05mm
Nitrogen Protection or Vapour Protection
Equipment model | FC-T16 | FC-T20 | FC-T32 | FC-T40 | |||||
Twisting usage | It is mainly applied to the annealing and tinning of ultra-fine round copper wire and alloy wire | ||||||||
Inlet wire diφ | 0.08-0.32mm or 0.15-0.64mm | ||||||||
Stranding section area | 0.0014-0.035 | 0.0049-0.3 | 0.0137-0.45 | 0.0137-1.0 | |||||
Max no of inlet wire | 16 | 24 | 32 | 40 | |||||
Linear speed | Max:350m/min | ||||||||
Pay off type | Brush pay off | ||||||||
Pay off bobbin type | Dia300mm bobbin | ||||||||

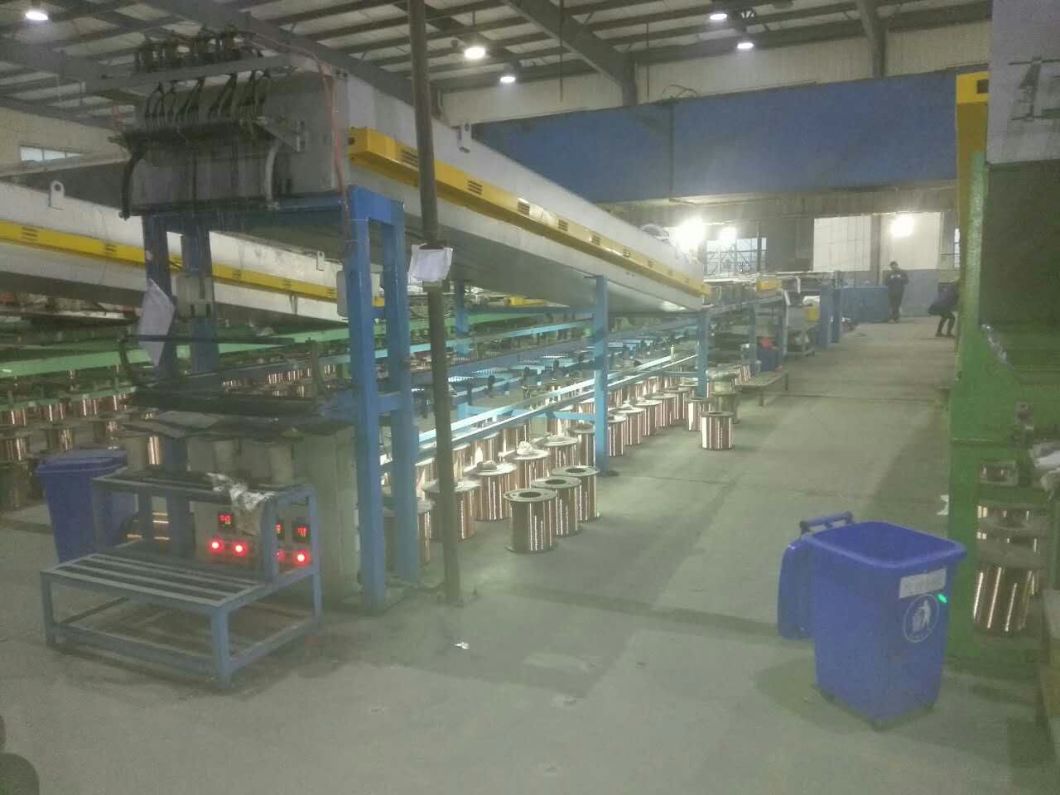

Annealing furnace length | Five meters or six meters | ||||||||
Annealing type | Tube type annealing | ||||||||
Annealing protection type | Water seal protection+nitrogen or vapor protection | ||||||||
Tinned type | Hot dip | ||||||||
Capstan control type | Inverter+motor control | ||||||||
Take up control | Voltage adjusting controls torque motor take up | ||||||||
Take up bobbin size | Five inch,eight inch or five inch,eight inch,ten inch bobbin | ||||||||
Traverse control type | Stepless speed regulation motor+turbine gear box control toothrow traverse | ||||||||
Dimension(mm) | 14500L*1500W*2100H | 18000L*1500W*2100H | 20000L*1500W*2100H | 24000L*2200W*2100H |
