0.15-0.64mm Alloy Wire and Cable Extrusion Extruder Machine Price Twisting Bunching Winding Cutting Machinery

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Electric

  • New

  • ISO, CE

  • 12 Months

  • 0.03~0.08mm

  • Annealing and Tinning of Ultra-Fine Round Copper

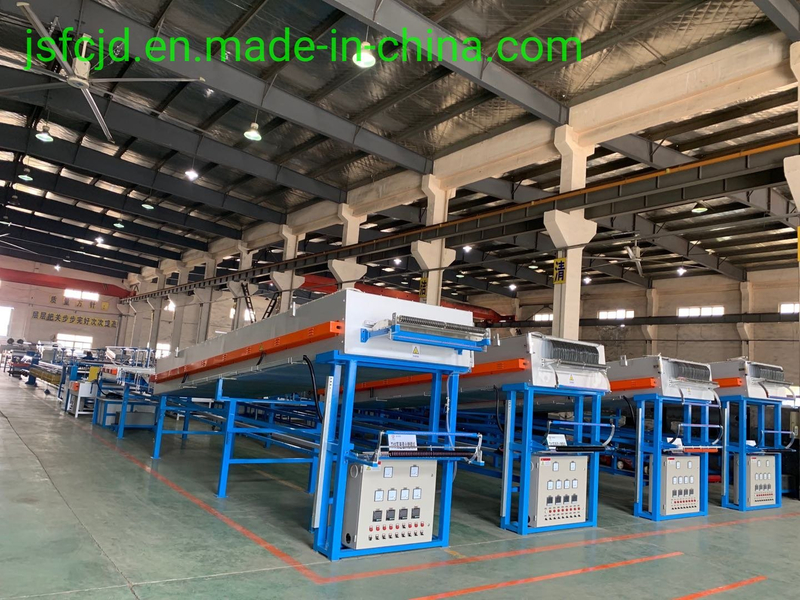

Copper wire alloy wire annealing tinning machine
1. Merits:
Easy to operate, good annealing heat insulation, save electricity, adopt nitrogen protection, it may realize ultra-fine annealing tin and achieve industry-leading level.
Equipment model FC-TX16 FC-TX24 FC-TX32 FC-TX40
Twisting usage It is mainly applied to the annealing and tinning of ultra-fine round copper wire and alloy wire
Inlet wire diaφ 0.03-0.08mm 0.04-0.127mm 0.05-0.127mm 0.05-0.127mm
Max no of inlet wire 16 24 32 40
Annealing furnace length 2m 2.5m 3.0m 3.0m
Linear speed Max:300m/min
Pay off type Brush pay off
Meter counting method Single head independently meter counting,and the machine will stop when the preset length is arrived
Annealing type Tube type annealing
Annealing protection type nitrogen protection or vapor protection
Tinned method Hot dip
Capstan control method Inverter+motor control
Take up control Voltage adjusting controls torque motor take up
Take up bobbin size Three inch,Five inch,eight inch
Traverse control type Stepless speed regulation motor+turbine gear box control toothrow traverse
Total power for machine 26kw 40kw 50kw 55kw
Dimension(mm) 14000L*1000W*1250H 17000L*1250W*1850H 24000L*1500W*1850H 24700L*2200W*2100H
