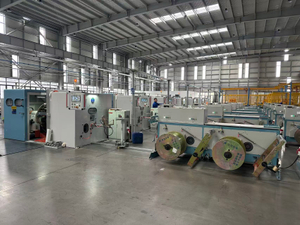

Copper Electrical Cable Alloy Wire Annealing Tinning Drawing Bunching Stranding Twisting Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
>1,000,000 Shots
The technology of this machine is brought from Japan and put in production in JiangSu.
Merits: Easy to operate, good annealing heat insulation,save power,adopt nitrogen or steam protection,have individual meter counter for each take up bobbin, stop automatically achieve the preset meter. It may realize ultra-fine annealing tin and achieve industry leading level.
Equipment models: FC-T32
Equipment model FC-T16 FC-T24 FC-T32 FC-T40 Twisting usage It is mainly applied to the annealing and tinning of ultra-fine round copper wire and alloy wire Inlet wire diaφ 0.03-0.08mm 0.04-0.127mm 0.05-0.127mm 0.05-0.127mm Max no of inlet wire 16 24 32 40 Annealing furnace length 2m 2.5m 3.0m 3.0m Linear speed Max:300m/min Pay off type Brush pay off Meter counting method Single head independently meter counting,and the machine will stop when the preset length is arrived Annealing type Tube type annealing Annealing protection type nitrogen protection or vapor protection Tinned method Hot dip Capstan control method Inverter+motor control Take up control Voltage adjusting controls torque motor take up Take up bobbin size Three inch,Five inch,eight inch Traverse control type Stepless speed regulation motor+turbine gear box control toothrow traverse Total power for machine 26kw 40kw 50kw 55kw Dimension(mm) 14000L*1000W*1250H 17000L*1250W*1850H 24000L*1500W*1850H 24700L*2200W*2100H
