0.05-1.70mm Electrical Copper Cable Wire Single Twist Twisting Twister Bunching Buncher Stranding Drawing Machinery Making Machine

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • 12months

  • Cable Twisting

  • Winding Machine

  • Customerized

  • 7m L*1.8m H*1.7m W

  • Fuchuan

FC-800 single twisting machine ( computer change pitch )


Series for frame single twist (cable laying) machine

It is mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping. The entire machine is consists of pay off rack, central bundler, side pay off rack for the central coil tapping set, single twist(cable-laying)machine and electrical control cabinet.
Equipment models FC-630 FC-800 FC-1000 FC-1250
Twisting usage It is applied to the twisting of PVC/PE core wire or copper wire, central bundling or side bundling.
Applicable dia(mm) φ0.60-φ3.0 φ0.60-φ3.0 φ1.0-φ6.0 φ1.0-φ6.0
Max twist outer dia φ12 φ16 φ25 φ30
Pitch(mm) 10-150 30-200 50-300 50-400
Direction of lay Optional for right or left
Take-up bobbin size φ630 φ800
φ1000
φ1250
Max rotating speed(rpm) 600 500 500 400
Traversing method Traverse is adopt crossbar-less reciprocating
Take up tension Pneumatic tension automatic regulate
Brake mode Disc brake
Bundling mode Central bundling or side bundling
Replace pitch mode Computer pitch or gear pitch

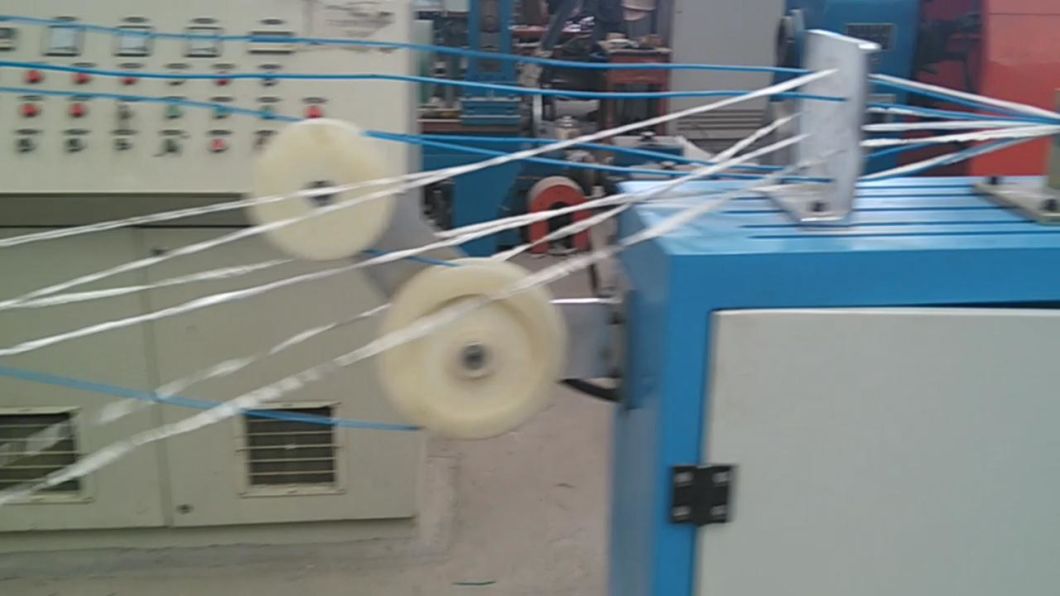

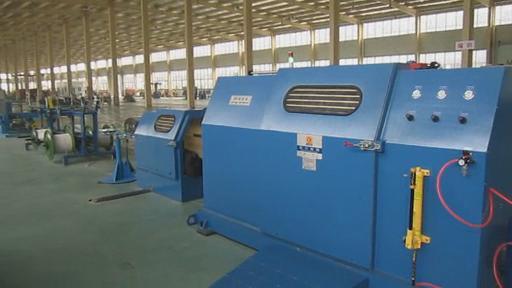

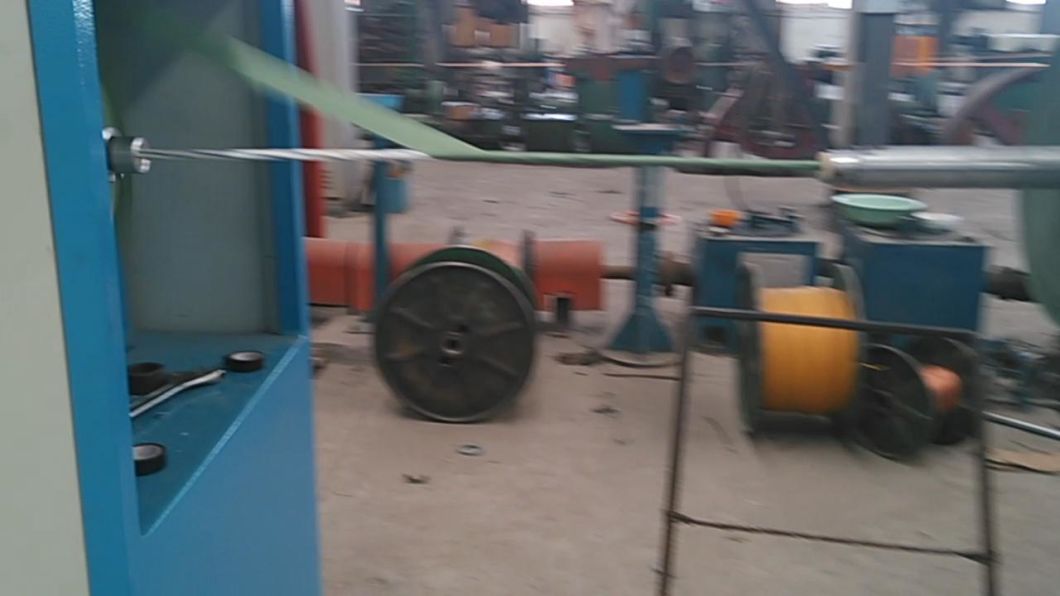

0.05-1.70mm Electrical Copper Cable Wire Single Twist Twisting Twister Bunching Buncher Stranding Drawing Machinery Making Machine 0.05-1.70mm Electrical Copper Cable Wire Single Twist Twisting Twister Bunching Buncher Stranding Drawing Machinery Making Machine 0.05-1.70mm Electrical Copper Cable Wire Single Twist Twisting Twister Bunching Buncher Stranding Drawing Machinery Making Machine
