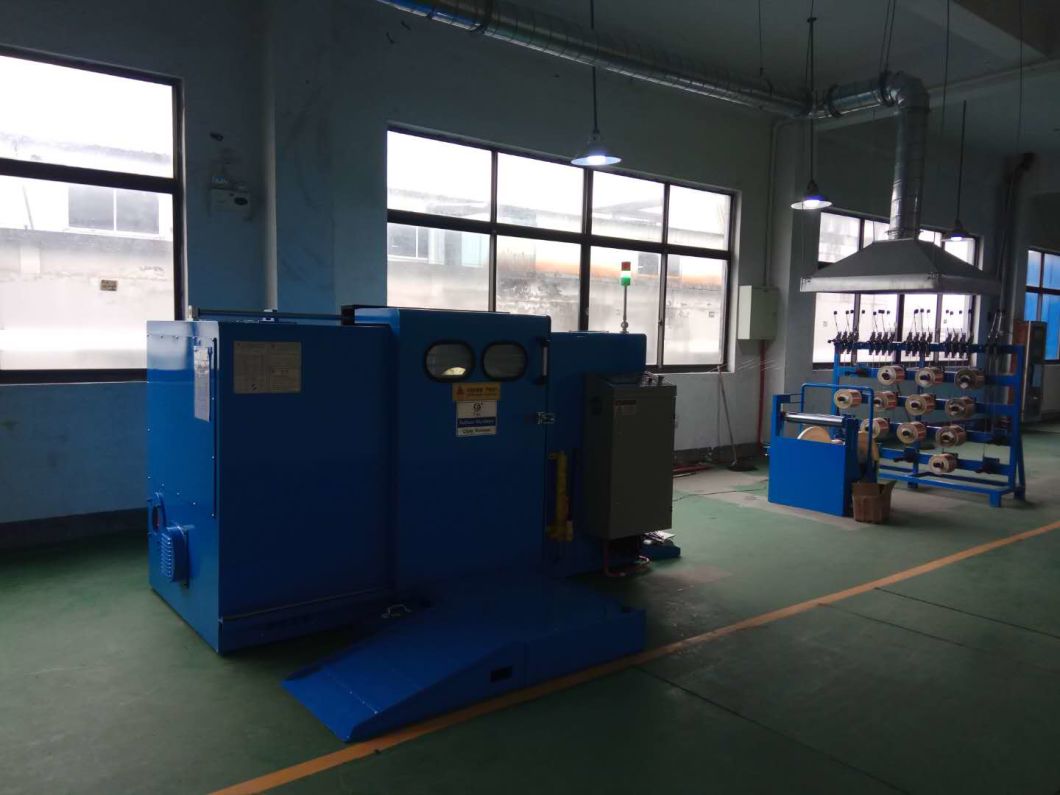

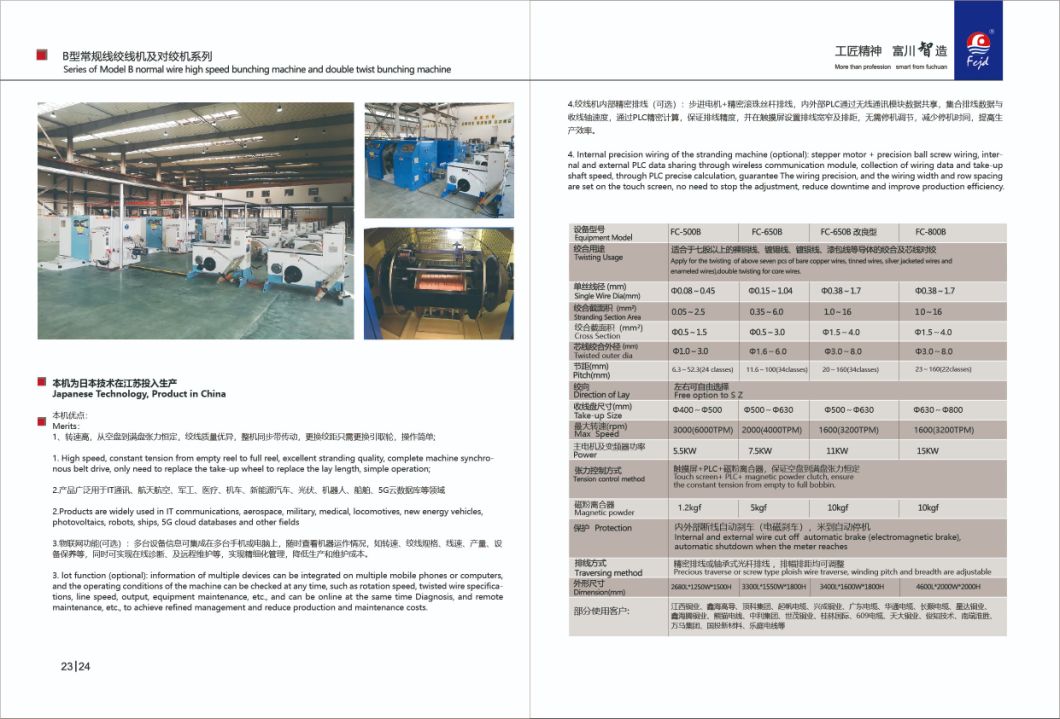

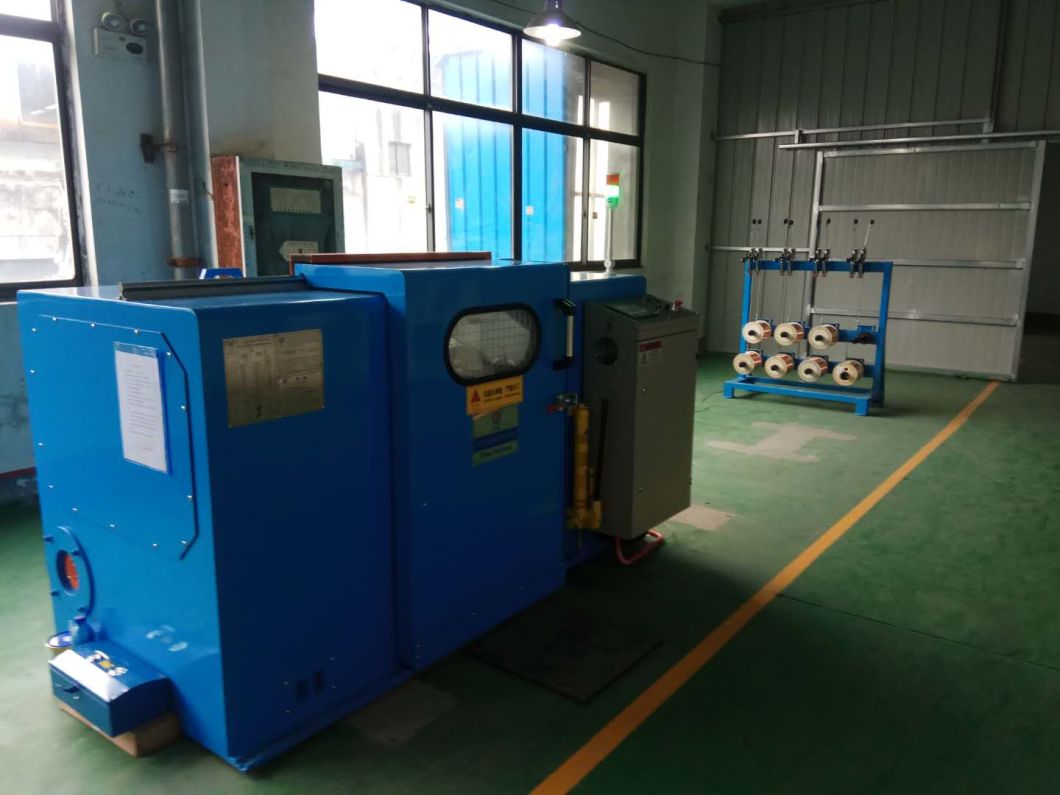

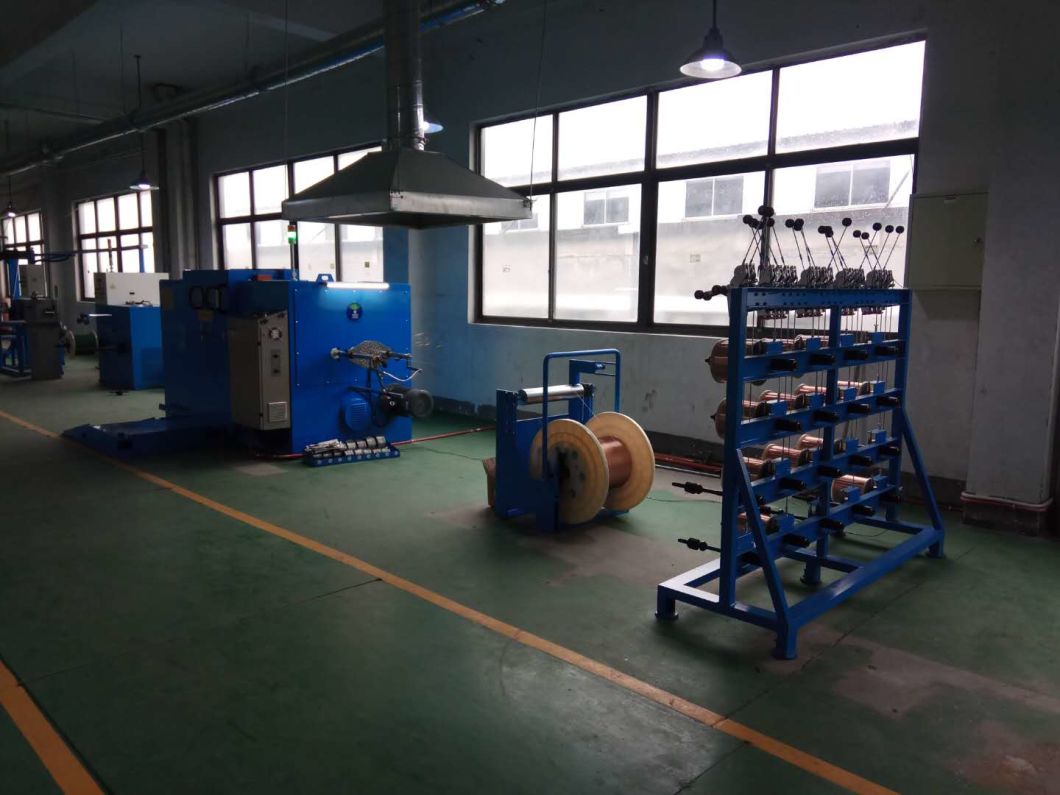

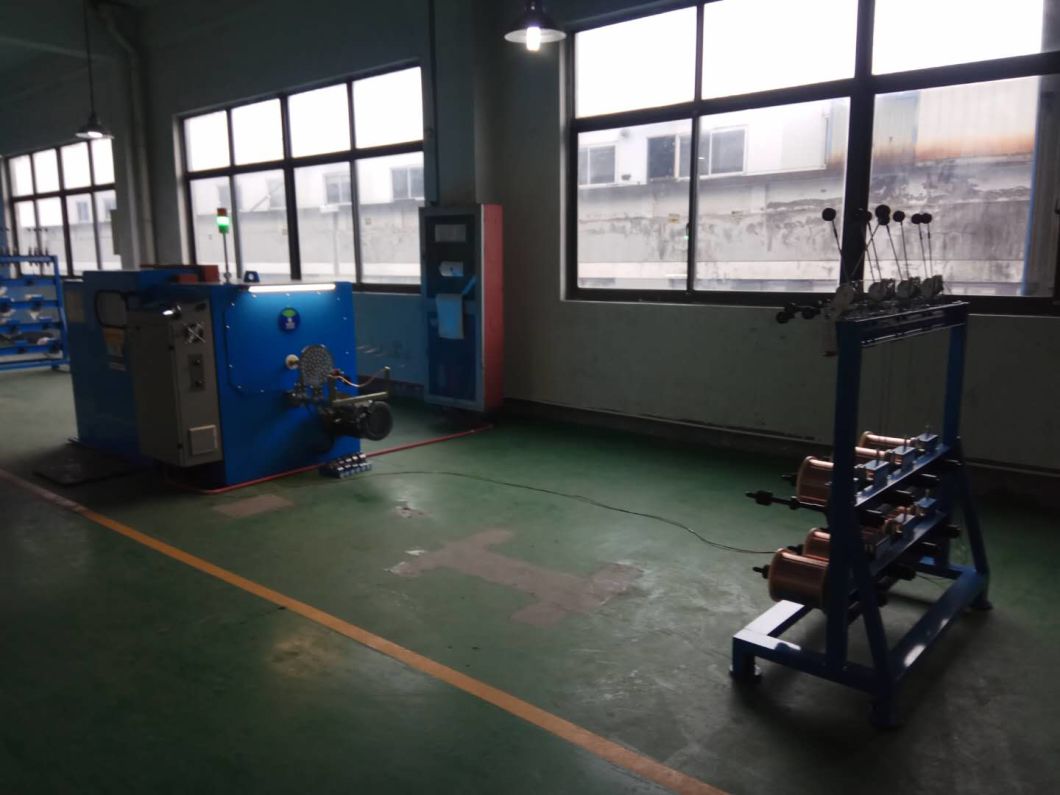

Main performance parameters of FC-650B automatic high speed bunching machine (replace of the capstan wheel to change the lay length).
Usage:It is applied to the stranding of bare copper wire, tinned wire, copper covered aluminum wire, lacquer wire and alloy wire and so on. 1+6 may twist instead of bunching.
2.Diameter of single copper wire: φ0.16~φ1.04mm 3.Outer diameter of wire: φ0.84~φ3.2mm; 4.Cross section area: φ0.40~φ6mm2 5.Size of take up spool: φ630mm×430mm×φ125mm(according to client's drawings to make). 6. Maximum rotating speed:2000rpm(4000twist),in normal working speed1800rpm(3600twist). 7.Type of traverse: φ30mm rolling ring traverse, winding pitch and breadth are adjustable. 8. Standard lay length: 34 section 11.6~100mm (enclose list of standard lay length). 9. Main motor: 7.5KW AC motor +frequency converter 10. Weight of copper load: about 400kg 11. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate. 12. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter. 13. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension constant tension. 14. Whole machine drive bearing:main shaft is from Sweden SKF bearing,other is adopted imported Japan NSK bearing. 15. Synchronization strap: with imported from American. 16. Spool from top to bottom: it is adopted manual hydraulic pump lifting. 17. Way of spindle lubrication: butter lubrication. 18. Index of noise: lower than 82dB 19.Dimension: 3300L×1450W×1650H(mm)
Main performance parameters of FC-650B automatic high speed bunching machine (replace of the capstan wheel to change the lay length).
Usage:It is applied to the stranding of bare copper wire, tinned wire, copper covered aluminum wire, lacquer wire and alloy wire and so on. 1+6 may twist instead of bunching.
2.Diameter of single copper wire: φ0.16~φ1.04mm 3.Outer diameter of wire: φ0.84~φ3.2mm; 4.Cross section area: φ0.40~φ6mm2 5.Size of take up spool: φ630mm×430mm×φ125mm(according to client's drawings to make). 6. Maximum rotating speed:2000rpm(4000twist),in normal working speed1800rpm(3600twist). 7.Type of traverse: φ30mm rolling ring traverse, winding pitch and breadth are adjustable. 8. Standard lay length: 34 section 11.6~100mm (enclose list of standard lay length). 9. Main motor: 7.5KW AC motor +frequency converter 10. Weight of copper load: about 400kg 11. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate. 12. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter. 13. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension constant tension. 14. Whole machine drive bearing:main shaft is from Sweden SKF bearing,other is adopted imported Japan NSK bearing. 15. Synchronization strap: with imported from American. 16. Spool from top to bottom: it is adopted manual hydraulic pump lifting. 17. Way of spindle lubrication: butter lubrication. 18. Index of noise: lower than 82dB 19.Dimension: 3300L×1450W×1650H(mm)
The company is a high-tech enterprise,specialize in design,development,manufacture,installation and debugging of wire and cable equipment. Products passed ISO9001:2008 quality management system certificate,and has the authorize of import and export.
